Velleman К8059 User Manual
Page 7
7

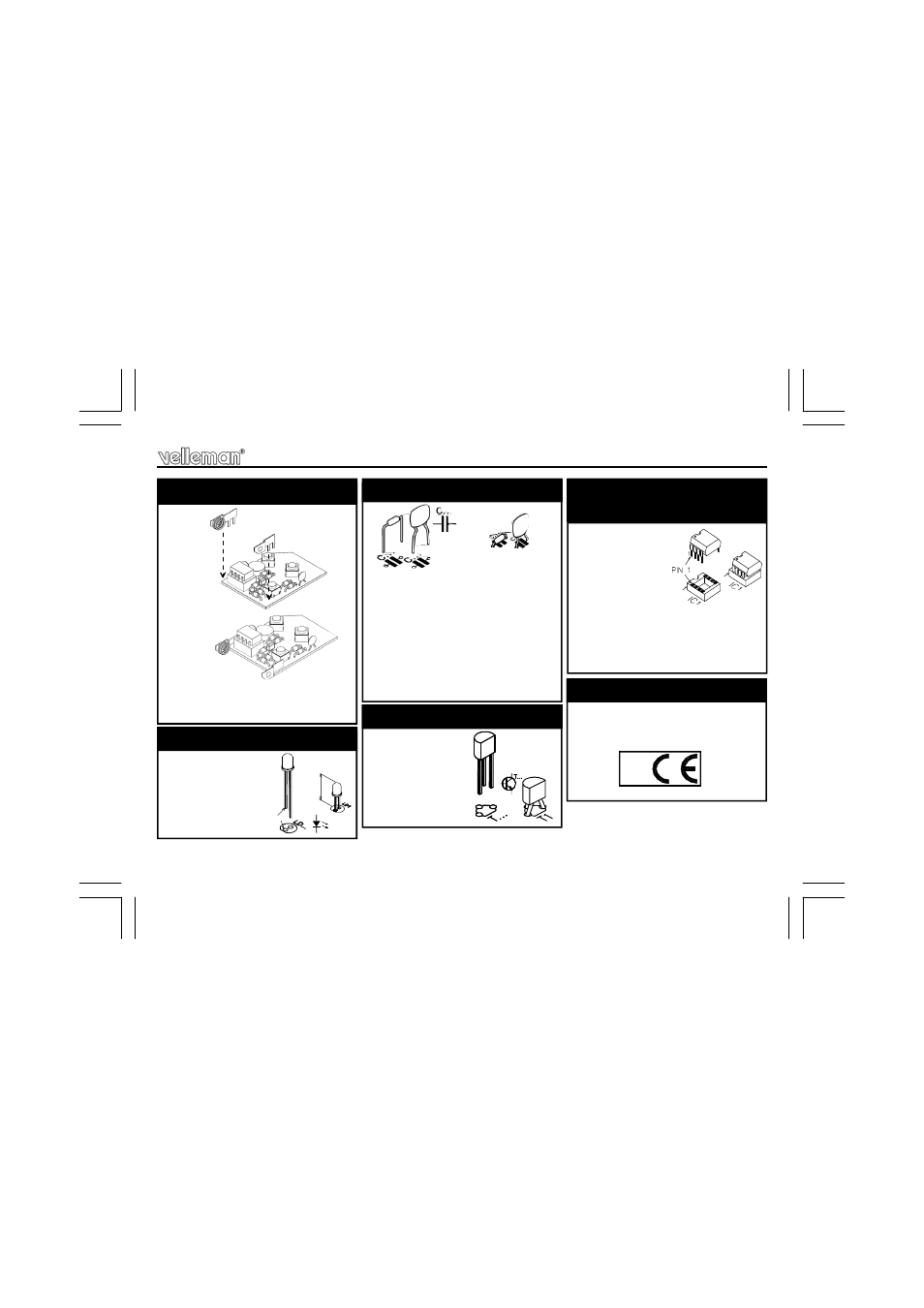

Construction
T1 : MPSH10
10. Transistor
+
-
Check for good attachment of
the solder to the contacts
7. Battery contacts
C1 : 1pF (1)
C2 : 4p7 (4.7)
C3 : 100pF (101)
Bend C3 away from the LED
C4 : 100pF (101)
C5 : 100pF (101)
C6 : 100nF (104)
9. Capacitors
IC1 : VK8059
VK8059=(Programmed PIC12F629)
Pay attention to the position
of the notch!
11. IC. Pay attention to the
notch !
Affix the supplied sticker to the
back of the housing.
12. Sticker
Velleman
SRFCE
433,92 MHz
LD1 : 3mm blue
8. LED
COLOR= 2...5
CATHODE
8mm
LD...
-
+
