Overview connection overview – Velleman VM8095 User Manual
Page 3
Pagina 3 van 12
(rev.1)

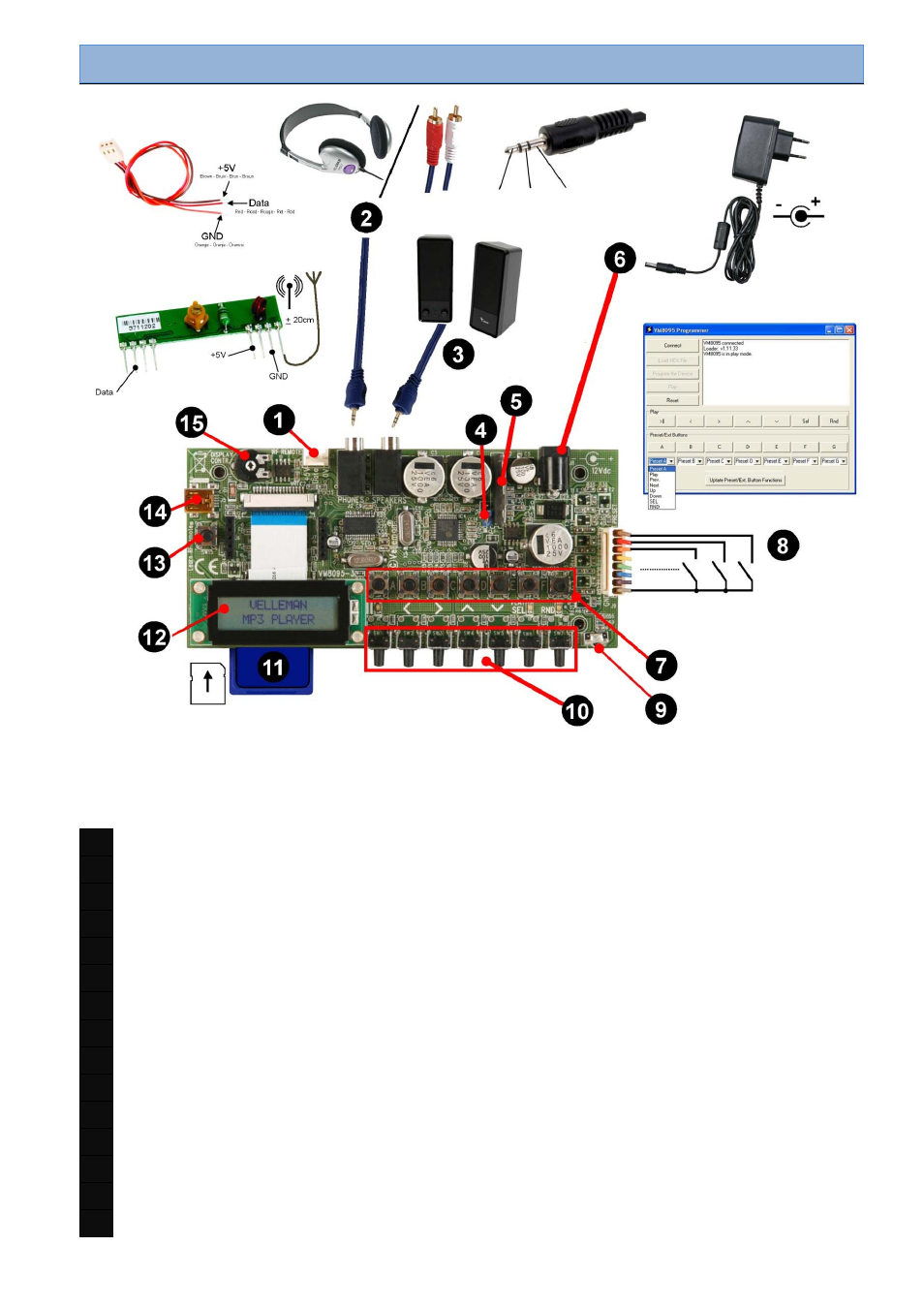

Overview Connection overview
1
Optional RF remote receiver module (part#: RX433N)
2
Line or phones output
3
Direct stereo speaker connection
(see connection diagram on pag. 4)
4
Mono or Stereo output selection
5
On board power amplifier
6
Adaptor input 12Vdc regulated min. 1A
7
7 on-board preset buttons
8
Connect up to 7 external preset buttons (same action like on-board ones)
9
On-board infrared receiver
10
On-board control buttons
11
SD/SDHC card input
12
2 line 16 character LCD with backlight
13
Remote learn button
14
Mini USB PC connection
15
LCD contrast setting
Right Left GND
