Velleman К8082 User Manual
Page 6
6

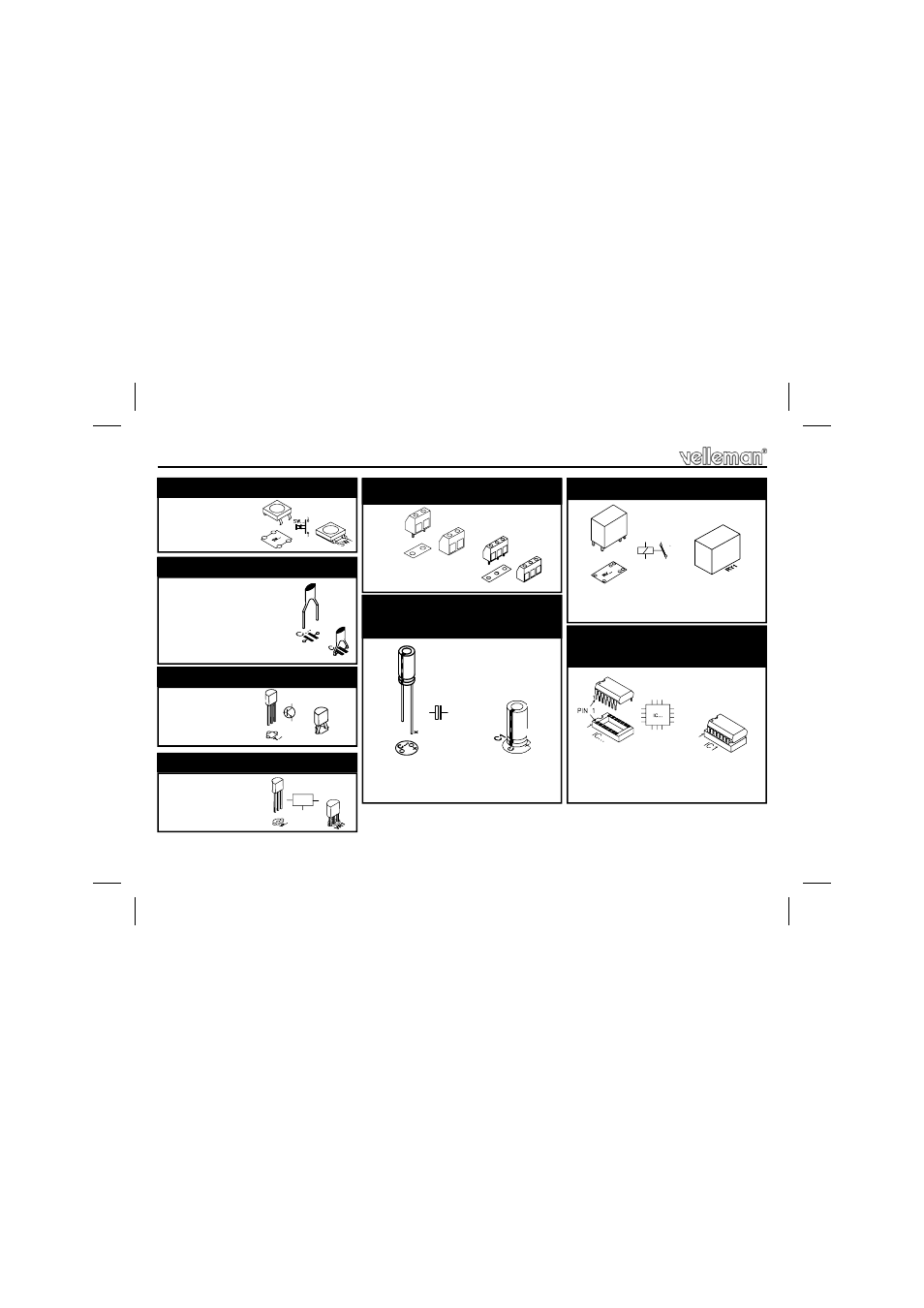

Construction main PCB
C6 : 10µ F/50V
C7 : 470µ F/25V
9. Electrolytic Capacitors.
Watch the polarity !
C...
RY1 : VR15M121C
10. Relay
RY...
IC1 :
VK8082
(programmed PIC16F630-I/P)
11. IC, watch the position of
the notch!
VR1 : UA78L05
7. Voltage regulator
VR...
SK1 : 2p
SK2 : 3p
8. Terminal blocks
T1 : BC547
6. Transistor
T...
C1 : 100nF (104)
C2 : 100nF (104)
C3 : 100nF (104)
C4 : 100nF (104)
C5 : 100nF (104)
5. Capacitors
SW1 : SET
4. Push button
