9

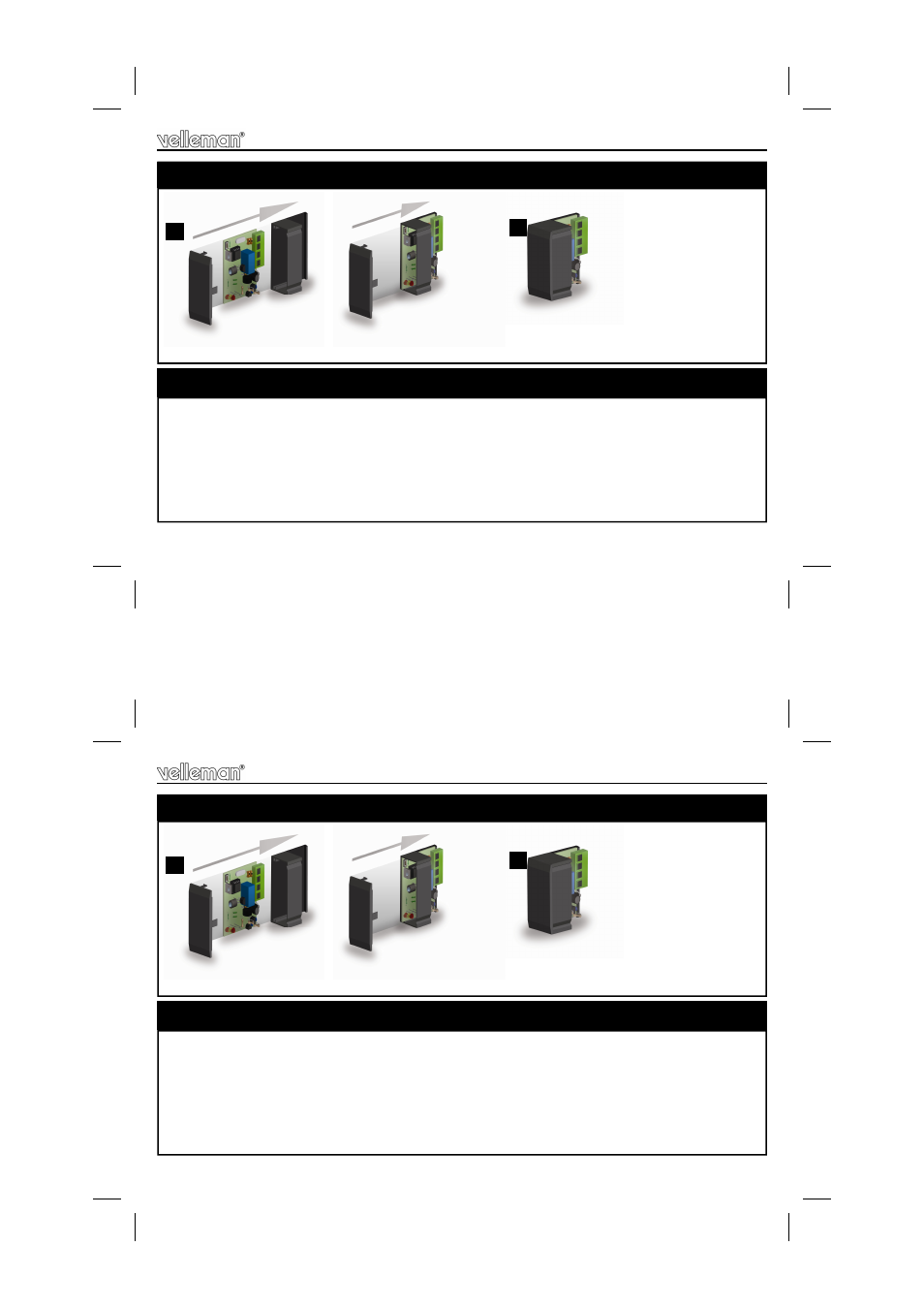

Mounting in enclosure VMBFBI
enclosure & control
Click the cover of the housing
onto the enclosure
Slide the PCB into the slot of the housing. Make sure that the
connection side of the kit is slid in first.
A
B
Control
The relay is in pulse mode by default. LD2 will flash once to visually confirm you the mode and operation.
When toggle mode is desired follow these steps to change the relay mode:
1. Hold push button SW1 pressed when power is disconnected.
2. Connect the power but keep push button SW1 pressed. LD2 will confirm by blinking twice. Release button.
Repeat this function if you want to change the mode from toggle to pulse mode.
Turn trimmer RV1 to the right to increase the infrared remote sensitivity; turn to the left to decrease the sensitivity.
9
Mounting in enclosure VMBFBI
enclosure & control
Click the cover of the housing
onto the enclosure
Slide the PCB into the slot of the housing. Make sure that the
connection side of the kit is slid in first.
A
B
Control
The relay is in pulse mode by default. LD2 will flash once to visually confirm you the mode and operation.
When toggle mode is desired follow these steps to change the relay mode:
1. Hold push button SW1 pressed when power is disconnected.
2. Connect the power but keep push button SW1 pressed. LD2 will confirm by blinking twice. Release button.
Repeat this function if you want to change the mode from toggle to pulse mode.
Turn trimmer RV1 to the right to increase the infrared remote sensitivity; turn to the left to decrease the sensitivity.
