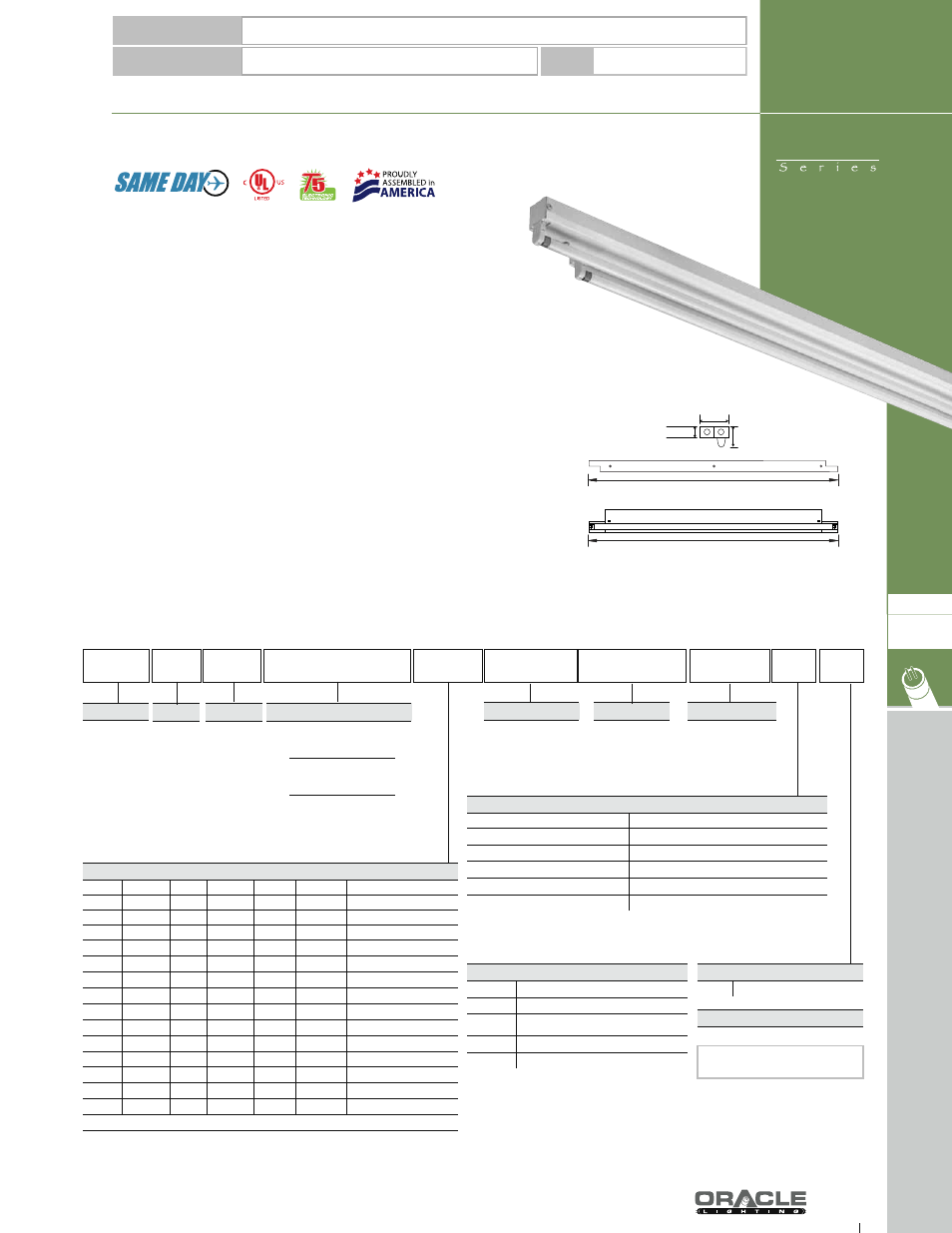

Oracle Lighting 8-OSTG-4 User Manual
Ostg, Catalog number, Project name type

131
WWW.ORACLELIGHTING.COM • TEL: 1-877-375-5555 • FAX: 1-877-375-3333
T5 LOW PROFILE FLUORESCENT STAGGERED
COVE LUMINAIRE (1 AND 2 LAMP T5)
OSTG
APPLICATION:
Staggered lamp fixtures are designed for use in cove, recessed slot,
or luminous ceiling applications. Staggering the lamps provides for
uniform illumination that eliminates shadows and/or hot spots
• Lobbies • Restaurants • Restrooms • Office building
• Hallways • Airports • Retail spaces • Conference rooms
––
PRODUCT FEATURES:
• Combine various fixture lengths for row configurations.
• Fixture channel is offset in order to provide smooth illumination
without shadowing.
• Die formed code gauge cold-rolled steel.
• Post-painted to insure against exposed metal surfaces.
• Pretreated with five-stage iron phosphate process ensures superior
paint adhesion.
• Shallow design is ideal for commercial spaces requiring cove
illumination.
• Suitable for dry and damp environments.
• Thermally protected, self re-setting, Class P, NPF, non-PCB and UL Listed
ballast
• Individual or continuous row mounting.
• NEC required ballast disconnect is standard.
LISTING - UL/ C-UL listed to US and Canadian Standards.
WARRANTY - Guaranteed for one year against mechanical defects.
S H I P P I N G AVA I L A B L E
2’ FIxTURE
3’ FIxTURE
4’ FIxTURE
(14W/T5)
(24W/T5H0)
2
(21W/T5)
(39W/T5H0)
2
(28W/T5)
(54W/T5H0)
2
14-T5
24-T5HO
21-T5
39-T5HO
28-T5
54-T5HO
LENGTH
• 2’ = 22-1/2” • 3’ = 34-3/8” • 4’ = 46 3/16”
1 LAMP
2 LAMPS
2-7/8”
3-1/4”
1-1/2”
Add 4” for offset to normal fixture length
2’,
3’,
4’
Lo
w
Pr
ofile
Fluor
escent
Stagger
ed
Ordering Information
EXAMPLE: 2-OSTG-1-14-T5
LAMPS
1
2
SERIES
OSTG-Oracle
Staggered
Strip
OSTG
WATTAGE
-1 Ballast
-2 Ballasts
(
Blank)
2
# OF BALLAST
(Blank)
HBF
LBF
BALLAST FACTOR
VOLTAGE
1
- Normal BF
- High BF
- Low BF
OTHER OPTIONS
USA - Made in America Compliance
WIRING OPTIONS
C3 - 6’ 3-wire Flex Cable (Single Circuit)
C4 - 6’ 4-wire Flex Cable (Double Circuit)
FBF - Internal Fast Blow Fuse
SBF - Internal Slow-Blow Fuse
RIS - Radio Interference Suppressor
REFLECTOR OPTIONS
Refer to page 129
BALLAST CONFIGURATION & CODE
14W/T5 24W/T5HO 21W/T5 39W/T5HO 28W/T5
54W/T5HO DESCRIPTION
-
-
-
-
-
-
Electronic Instant Start
(Blank)
(Blank)
(Blank)
(Blank)
(Blank)
(Blank)
Electronic Program Start
-
-
-
-
-
ADV-7
Advance Mark-7
1
-
ADV-10
-
-
-
ADV-10
Advance Mark-10
1
-
-
-
-
ADV-OPT
-
Advance Optanium
1
-
-
-
-
-
-
Advance Essential
1
-
-
-
-
-
ADV-ROVR Advance Rover
1
-
-
-
-
LUT-EHD
LUT-EHD Lutron Ecosystem H-Series
1
-
-
-
-
-
-
Lutron Tu-Wire
1
LUT-EC5 LUT-EC5 LUT-EC5 LUT-EC5 LUT-EC5
-
Lutron Ecosystem
1
LUT-EC3 LUT-EC3 LUT-EC3
-
LUT-EC3
LUT-EC3 Lutron Eco-10
1
-
-
-
-
-
-
Lutron Tve
1
LUT-H3D LUT-H3D LUT-H3D LUT-H3D LUT-H3D LUT-H3D Lutron Hi-Lume 3D
1
-
-
-
-
-
LUT-ECD Lutron Ecosystem (347V Only)
1
1- Voltage must be specified for dimming ballast.
T5
OSTG
2
3
4
- 2’
- 3’
- 4’
FIxTURE SIzE
REMOTE EMERGENCY BATTERY PACK OPTIONS (L. = LUMENS)
ORDER CODE
DESCRIPTION
EMG-T5-T5HO-700
Up to 700 L. for
T5 or T5HO
EMG-T5-T5HO-1300
Up to 1300 L. for
T5 or T5HO
EMG-T8-Bx-T5-T5HO-3200
Up to 3200 L. for
T8, Bx, T5 or T5HO
EMG-SD-T8-Bx-T5-T5HO-1400
Self-Diagnostic 1400 L. for
T8, Bx, T5 or T5HO
EMG-ICE-T8-Bx-T5-T5HO-1400
ICE Pack 1400 L. for
T8, Bx, T5 or T5HO
120
277
347
- 120
- 277
- 347
