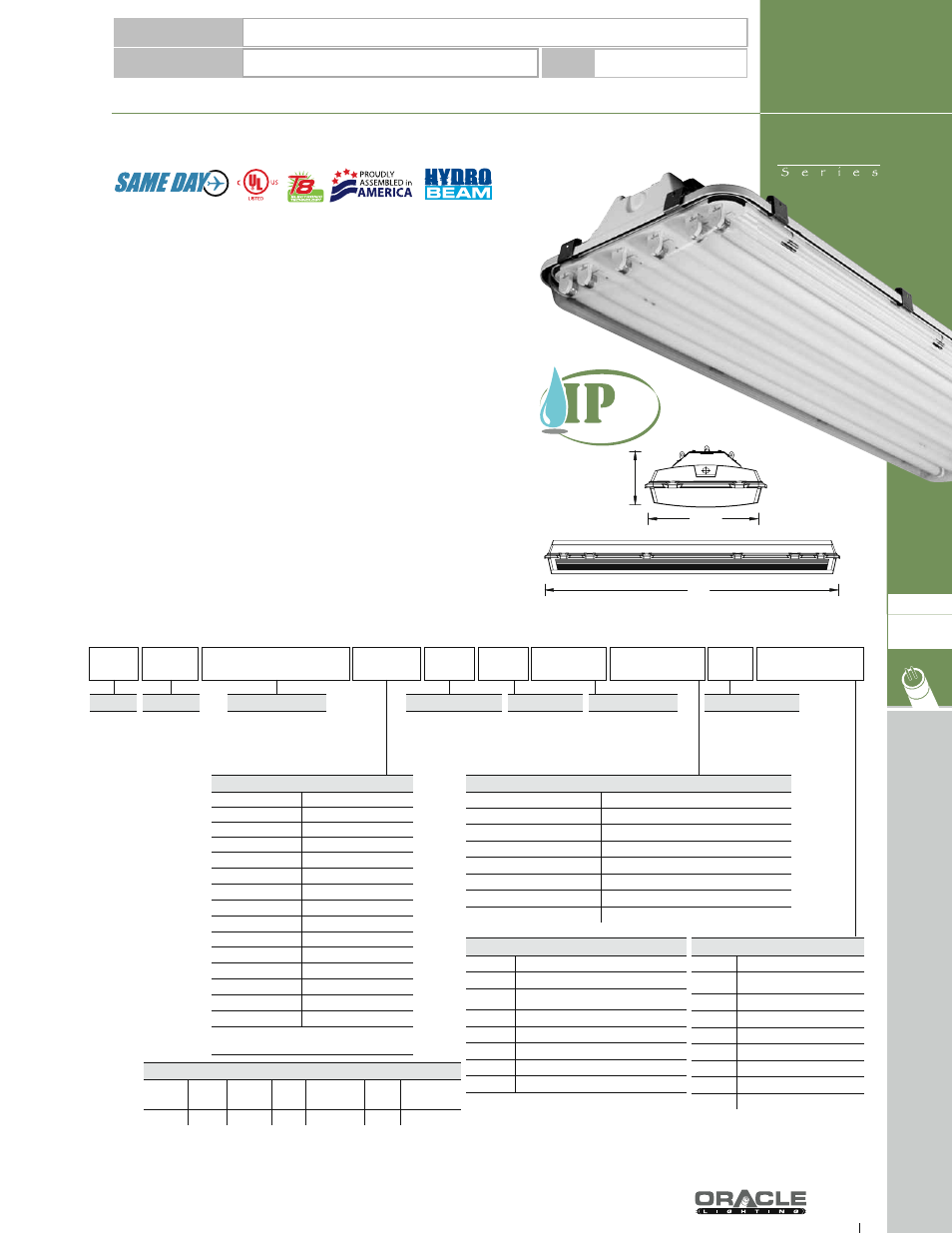

Oracle Lighting HD1B-6 T8 - Manual

101 WWW.ORACLELIGHTING.COM • TEL: 1-877-375-5555 • FAX: 1-877-375-3333
T8 HYDRO BEAM FLUORESCENT IP & NEMA RATED
HIGH BAY WIDE BODY (6 LAMP T8)
Hydr
o
Beam
Fluor
escent
6
Lamp
Hose
Do
wn
High
Ba
y
Ordering Information
EXAMPLE: HD1B-6-32-T8
6-3/4"
17-1/4"
51”
APPLICATION:
Food processing facilities, sports complexes, warehouses, outdoor
canopies, cold storage facilities and manufacturing facilities.
PRODUCT FEATURES:
• Contoured component surfaces reduce the buildup of debris and
permits easy cleaning
• Hinged universal gear tray for trouble-free maintenance
• Available with specular reflector as option.
• Stainless steel cam-action latches come standard. Optional tamper
proof screws available.
• Universal mounting bracket included for surface and suspended
mounting
• The back of the housing has a 10 degree slope to satisfy the
requirements in the food industry which are more stringent than NSF
standards
• Clear UV stabilized polycarbonate lens with linear pattern on perimeter
• Comes standard with 2 GE Pro-Line MVOLT model number GE332-MV-H
• CEE qualified ballast found standard on most fixture options (Consult
factory for details).
HOUSING
• Reinforced polyester compound
• UL 5VA flammability • weatherability rated
GASKETING
Continuous Poured in place gasket seals off contaminants
APPROVALS AND/OR LISTING
• NSF Splash Zone 2 • IP67 • IP65
• Hose Down – 1300 PSI • NEMA-4X
LISTING - UL/ C-UL listed to US and Canadian standards.
WARRANTY - Guaranteed for five years against mechanical defects.
STANDARD BALLAST INFO
LAMP # OF
LAMPS LINE
VOLTS Ballast
Factor
Power
Factor% (>=)
THD%
(<=)
Min. Starting
Temp (°F/°C)
F32T8 6 120/ 277 1.15 99 10 -22/ -30
HD1B 6 32-T8
SERIES
HD1B -
Oracle Hydro
Beam Wide
Body
LAMPS
6
LAMP TYPE
32-T8 -32W T8
LAMPS INSTALLED
( Blank)
L30K
L35K
L41K
L50K
- No lamps
- 3000K
- 3500K
- 4100K
- 5000K -2 Ballast
-3 Ballasts ( Blank)
3
# OF BALLAST
(Blank)
NBF
LBF
BALLAST FACTOR
( Blank)
120
277
347
480
- MVOLT (120/277)
VOLTAGE 2
- High BF
- Normal BF
- Low BF
BALLAST CONFIGURATION & CODE
32W/T8 DESCRIPTION
(Blank) Electronic Instant Start
EPS Electronic Program Start
ADV-7 Advance Mark-7 2
ADV-10 1 Advance Mark-10 2
- Advance Optanium 2
ADV-ESS 1 Advance Essential 2
ADV-ROVR Advance Rover 2
LUT-EHD 1 Lutron Ecosystem H-Series 2
LUT-2W 1 Lutron Tu-Wire 2
LUT-EC5 Lutron Ecosystem 2
LUT-EC3 Lutron Eco-10 2
LUT-TVE 1 Lutron Tve 2
- Lutron Hi-Lume 3D 2
- Lutron Ecosystem (347V Only) 2
1- Requires 3 Ballasts
2- Voltage must be specified for dimming ballast.
WIRING OPTIONS
PCSB120 - 10’ Nema 5-15R 120V Straight Blade Plug
PCSB277 - 10’ Nema 7-15R 277V Straight Blade Plug
PCTL120 - 10’ Nema L5-15R 120V Twist Lock Plug
PCTL277 - 10’ Nema L7-15R 277V Twist Lock Plug
IPTL120 - 10’ 120V IP Rated Twist lock Plug
IPTL277 - 10’ 277V IP Rated Twist lock Plug
SO1 - 10’ 120V/277V SO Cord
SO2 - 10’ 480V SO Cord
(Consult Factory for 208V, 248V, 347V and 480V wiring)
EMERGENCY BATTERY PACK OPTIONS (L. = LUMENS)
ORDER CODE DESCRIPTION
EMG-T8-Bx-450 Up to 450 L. for T8 or Bx
EMG-T8-Bx-600 Up to 600 L. for T8 or Bx
EMG-T8-Bx-700 Up to 700 L. for T8 or Bx
EMG-T8-Bx-1400 Up to 1400 L. for T8 or Bx
EMG-T8-Bx-T5-T5HO-3200 Up to 3200 L. for T8, Bx, T5 or T5HO
EMG-SD-T8-Bx-T5-T5HO-1400 Self-Diagnostic 1400 L. for T8, Bx, T5 or T5HO
EMG-ICE-T8-Bx-T5-T5HO-1400 ICE Pack 1400 L. for T8, Bx, T5 or T5HO
OTHER OPTIONS
CH - Heavy Duty Chain
MS - Motion Sensor
MSPH - Motion Sensor with Photocell
WLMS - Wet Location Motion Sensor
GSS - Gripple Suspension System
VH - V Hook
TPS - Tamper Proof Screws
6HD1BSR - Specular Reflector
USA - Made in America Compliance
65,67
S H I P P I N G AVA I L A B L E
HD1B
T8
HD1B
Catalog Number HD1B-6-32-T8
Project Name Type
