ORDERinG GUiDE
SUggeSteD USe - For areas where smooth and wide light distribution
is needed. Ideal for building facades, security, recreation, parking lots, signs,
and displays.
conStrUction - Die-cast aluminum corrosion proof housing with
hinged lens frame. The one-piece silicone gasket effectively limits outside
contaminants by sealing off the optical chamber. The reflector is made of
die-formed anodized aluminum for high efficiency & beam control. hiD
& hPS fixtures have porcelain 4KV pulse rated medium base socket with
nickel-plated screw shell sockets. cFl fixtures have 4 pin plug in base &
standard ballast of min. staring Temp. of 0
o F/-18 o C, extreme Temp. ballast
(XT) with -20 o F/-30 o C is available.
FiniSh - Dark bronze corrosion- resistant polyester powder finish is
standard.
lenS - Heat and impact resistant tempered glass lens.
inStallation - Fixtures offer an adjustable knuckle with 1/2” NPT
threads for easy mounting to boxes or adapters. Bottom Feed wiring.
liStingS - UL/ C-UL for wet location.
lamP - Included except for CFL option.
All specifications are subject to change without notice.

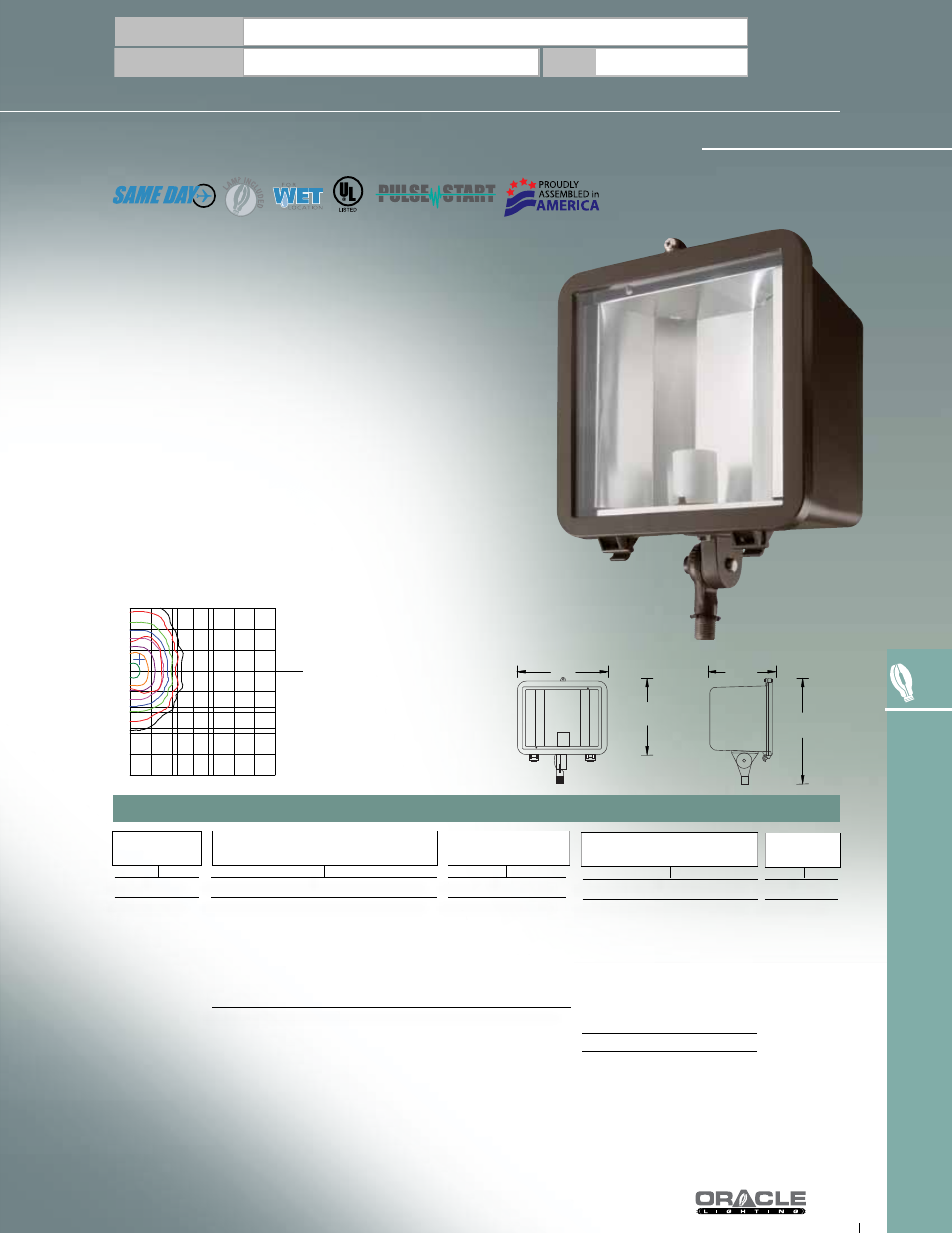

oFl-SP-101
SPOT FlooDlight
example: oFl-SP-101-mh-175-mVolt
OFL-SP-101-MH-175-MVOLT
9"
13"
9" 6-7/8"
Dimensions:
House
Side
Street
Side
(Distance In Units Of Mounting Height)
(Values Based On 10 Foot Mounting Height)
(1/2 Maximum Candela Trace Shown As Dashed Curve)
(+) = Maximum Candela Point
0 1 2 2.25 3 3.75 4 5 6 7 5
4
3
2.75
2
1.75
1
0
1
2
3 .1
.2
.5
1
2
5
10
20
S H I P P I N G AVA I L A B L E
noteS:
1. Pulse Start standard on all fixtures above 175w.
2. lamps are not included for cFl.
3. Please consult factory for dimming options.
4. consult factory for other wattages and options.
WATTAGE vOlTAGE OPTiOnS SERiES
oFl-SP-101 (70W High Pressure Sodium)
(100W High Pressure Sodium)
(70W Metal Halide)
(100W Metal Halide)
(150W Metal Halide)
(175W Metal Halide)
(1X26W Compact Fluorescent)
(1X32W Compact Fluorescent)
(1X42W Compact Fluorescent) hPS-70
hPS-100
mh-70
mh-100
mh-150
mh-175
cFl-1X26
cFl-1X32
cFl-1X42
OFl-SP-101
Pc120 - Photo control (120V only)
Pc277 - Photo control (277V only)
Swg - Steel wire guard
SF - Single fuse
DF - Double fuse
gS - Glare Shield
Xt- -20
o F/-30 o C Min. Temp. Bal. (CFL only)
ACCESSORiES
oFl-SP-101-rl - Replacement lens kit
COlOR
BZ - BRONZE
wh - WHITE
Spot Floodlight
hPS, mh
1,4
MVOLT(120/208/240/277)
120
347
5
480
5
cFl 2,3,4
MVOLT(120/277)
120
208
240
347
Catalog Number OFL-SP-101
Project Name Type
