CKW Battery Option Kit

EN-2

PC Board Installation

• Mount the PC board to the rear plate as shown in Figure 1 using 4 of the

small screws supplied.

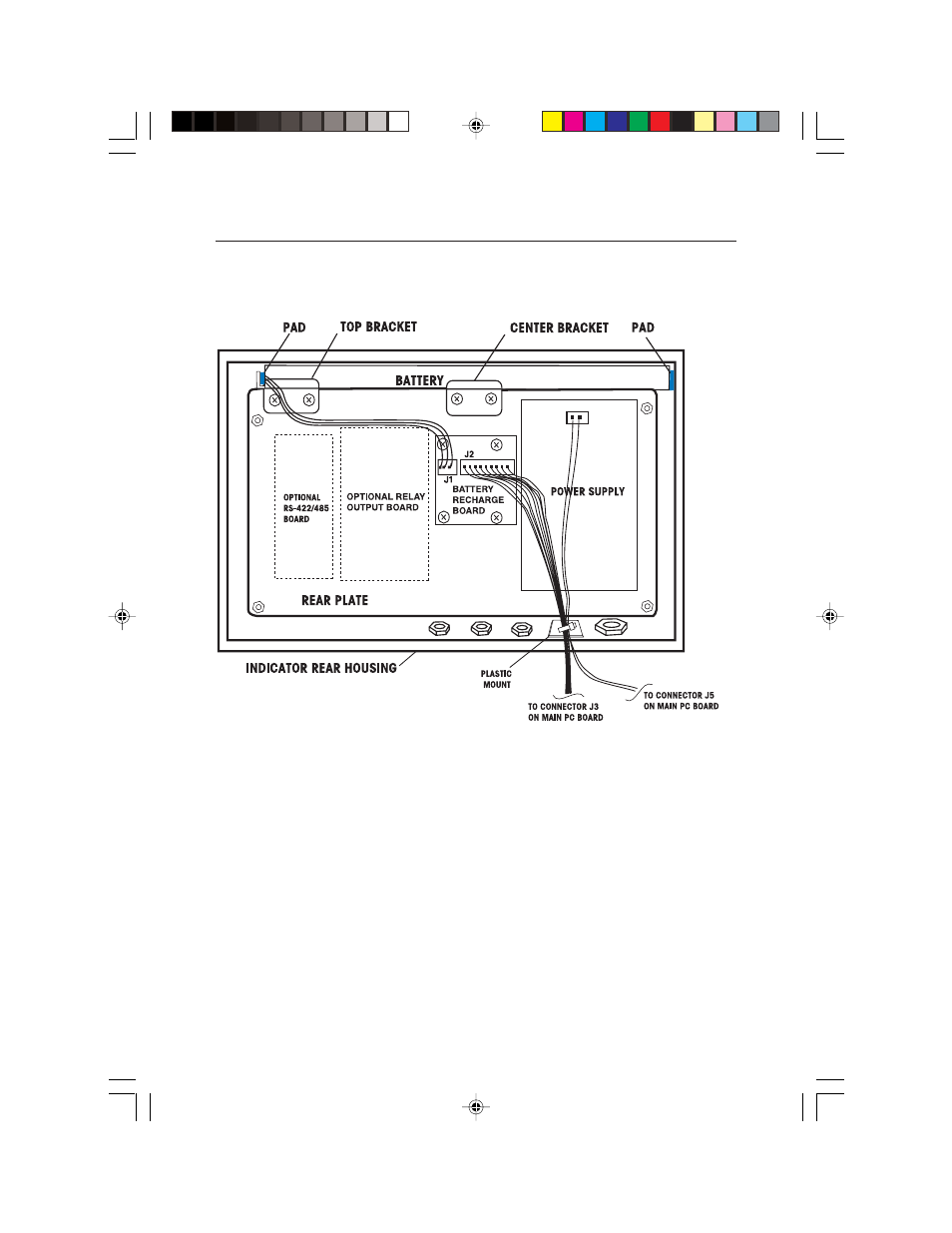

Figure 1. Installation Details.

Battery Installation

The battery is held in place by two brackets that need to be installed.

• Check that there are foam pads attached to each end of the battery pack. Do

not install the battery if these foam pads are missing. If needed, contact
Ohaus Service for assistance.

• Position the battery with the wire leads to the left and facing forward, as

shown in Figure 1.

• While holding the battery in place, mount the center bracket using the

supplied screws. The mounting screws must remain loose at this step.
(Note: The center bracket is the part without the extra side tab).
