EN-8 Defender Series Base
Drawings

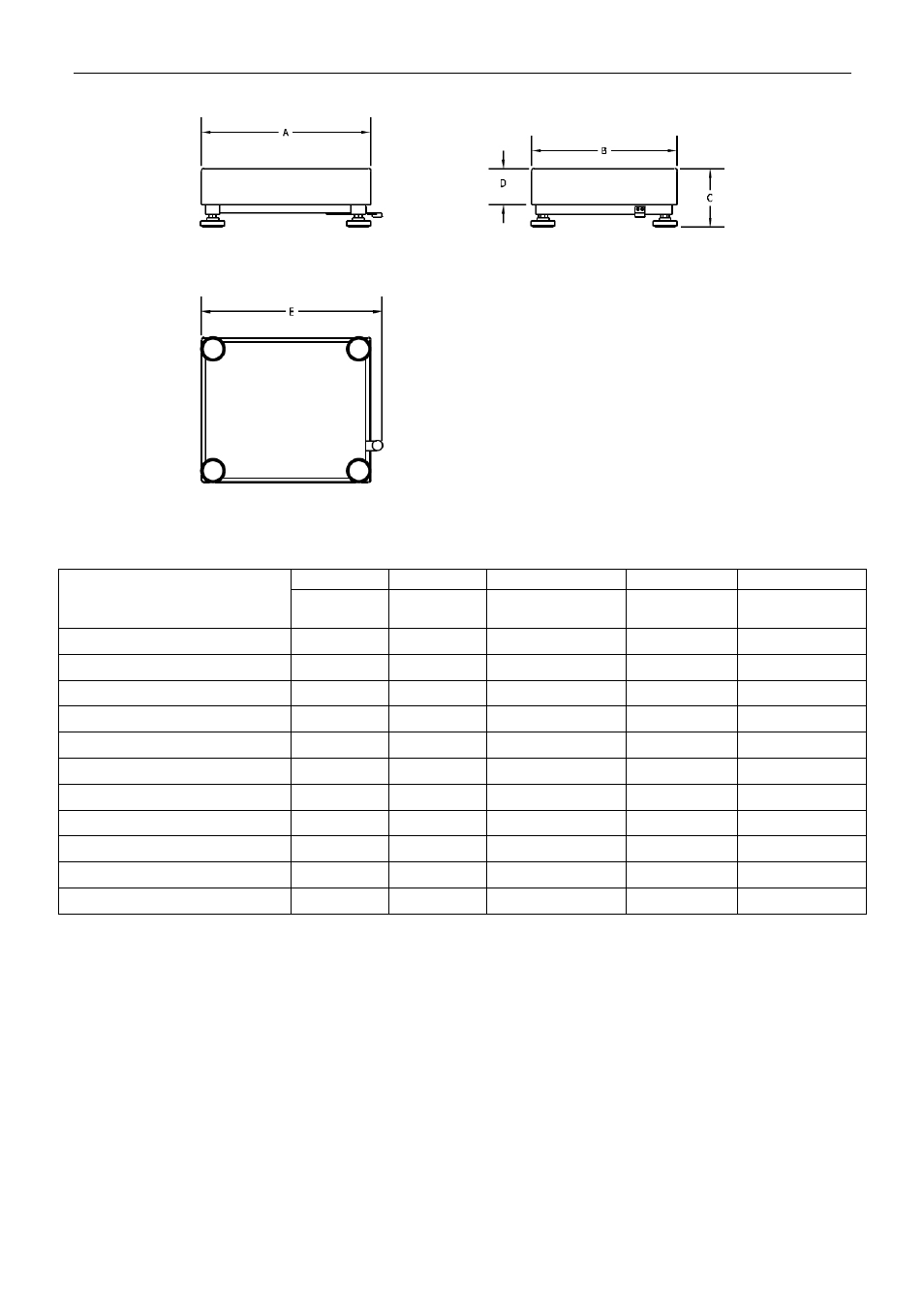

Figure 1. Defender Base Dimension Drawing.
TABLE 3. DIMENSIONS
A B C D E
Base
Pan Depth Pan Width
Height of Pan to
Surface of Table*
Height of Pan
Depth Including
Level Indicator
DxxxHR 355 mm 305 mm 95 mm 50 mm 385 mm
DxxxHL 500 mm 400 mm 105 mm 60 mm 530 mm
DxxxHX 550 mm 420 mm 125 mm 70 mm 580 mm
DxxQR, DxxxWR 305 mm 305 mm 95 mm 52 mm 335 mm
DxxxQL, DxxxWL 457 mm 457 mm 115 mm 70 mm 487 mm
DxxxQX, DxxxWX 610 mm 610 mm 137 mm 90 mm 640 mm
DxxxRS 300 mm 240 mm 80 mm 44 mm 330 mm
DxxxRR 400 mm 300 mm 86 mm 50 mm 430 mm
DxxRL 500 mm 400 mm 86 mm 48 mm 530 mm
DxxxRX 650 mm 500 mm 110 mm 73 mm 695 mm
DxxxRV 800 mm 600 mm 120 mm 83 mm 840 mm
*For leveling purposes, the feet may be extended up to an additional 15 mm.
