Draft Shield

Accessory Kit

P/N 76934-01

Installation Instructions

For PRECISION

Standard

and

Plus

Electronic Balances

Models TS400, TP400 and TP600

P/N 77326-01 R0793

Snap
Clamp

Position rib up against
display panel.

OHAUS

is the registered trademark of Ohaus Corporation as are the following

trademarks: CENT-O-GRAM

, CHECK-O-GRAM

, DEC-O-GRAM

, DIAL-O-GRAM

PRIMER

, 5-0-5

, and 10-10

OHAUS CORPORATION

OHAUS CORPORATION
P.O. Box 900
29 Hanover Road
Florham Park, N.J. 07932, USA
Tel: 201-377-9000
Telex: 6853191 OHAUS UW
Fax: 201-593-0359

With other offices in England, Mexico, Canada,
Japan, Germany, France, Switzerland

UNPACKING

Verify that a Draft Shield and Snap Clamp
have been included in the kit.

INSTALLATION

Remove the pan and pan support.

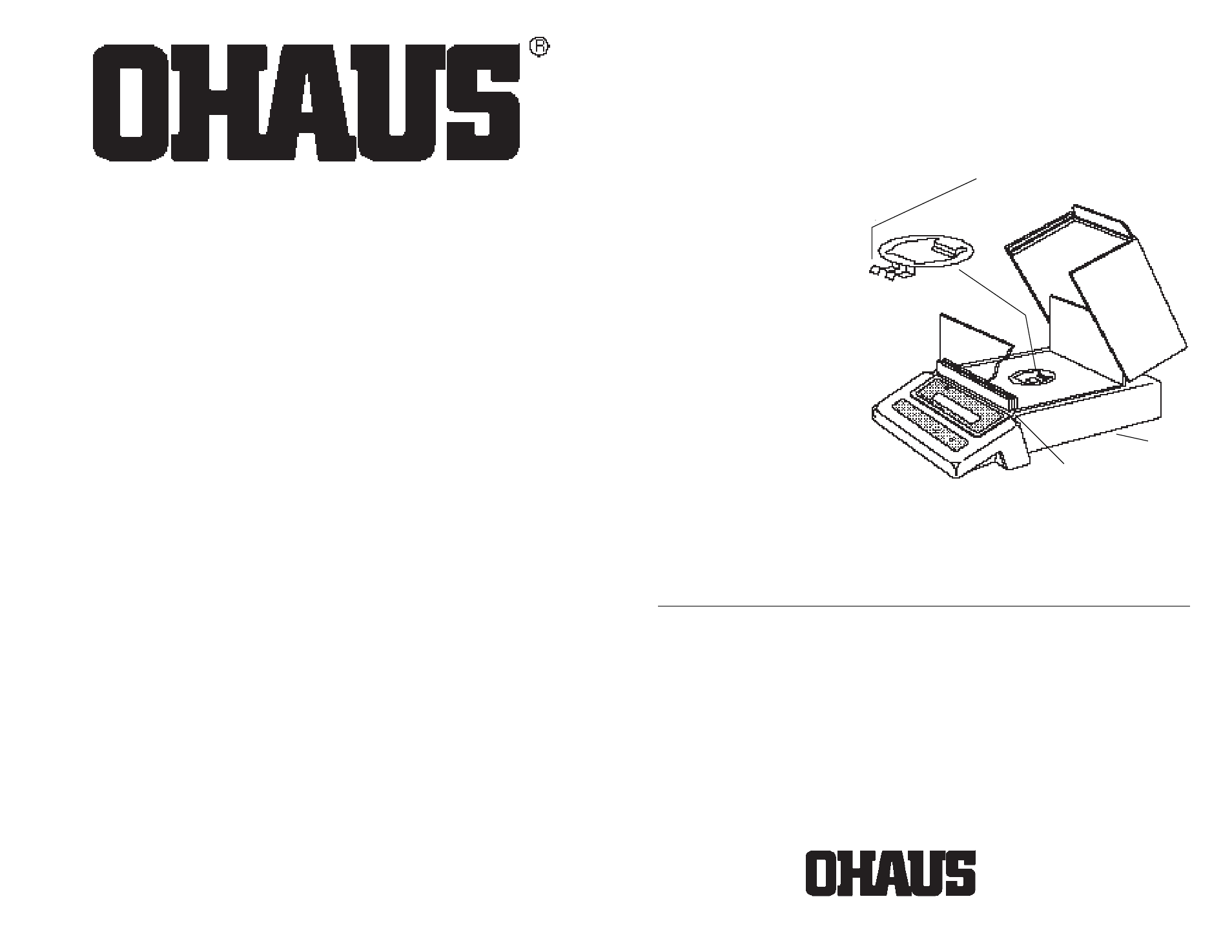

Position the draft shield
on top of the balance as
shown. Make sure the rib
at the front of the draft
shield base butts up
against the raised lip of the
display panel.

The snap clamp should be
oriented so that the double
clip is toward the front of
the balance.

First, insert the double clip
end of the snap clamp fully into
the opening towards the front of the
draft shield base and the underside of
the cover. Next, press the rear clip of the
snap clamp down into place.

Replace the pan and pan support.

Double

Clip

Cover
