INTRODUCTION
This Ethernet interface kit is for use with the Ohaus Navigator Series Scales only. This accessory has
been tested and complies with the approvals listed in the Navigator Instruction Manual.

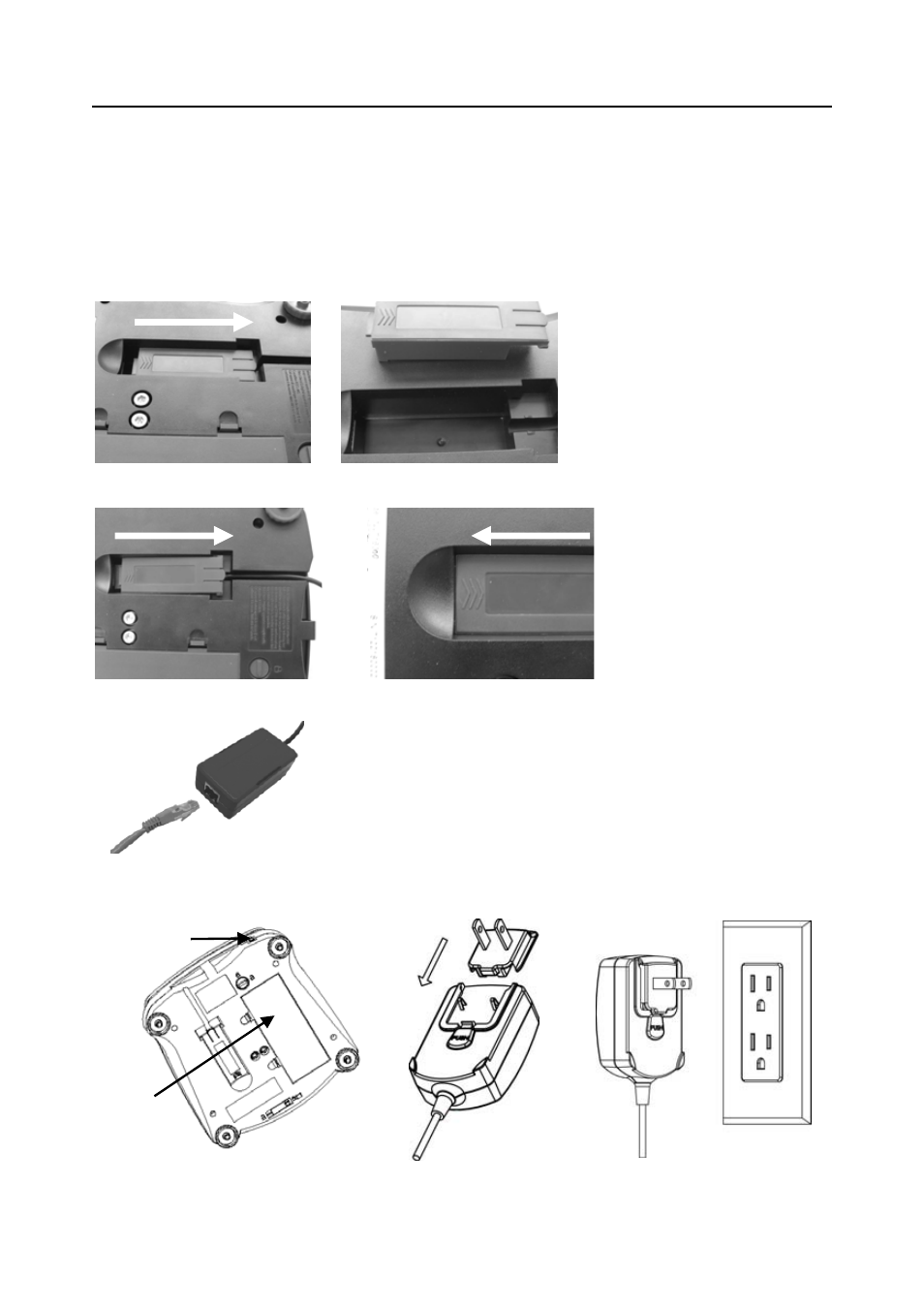

INTERFACE INSTALLATION
1. Disconnect the existing Power Adapter, it will be replaced.
2. Remove the blank interface cover by sliding the cover back.
3. Install the Interface Module. Slide the cover forward to engage the connections.
4. Connect an Ethernet Cable to the RJ45 connector.
5. To insure proper operation the Ethernet Interface Kit is supplied with a more powerful power
adapter, PN 46001802 (12V, 0.84A).
Connect the AC Adapter plug to the
input jack.
Install the correct plug
Connect AC Adapter to the
proper AC supply.
Input Jack
Battery
Cover
