5. User Interface

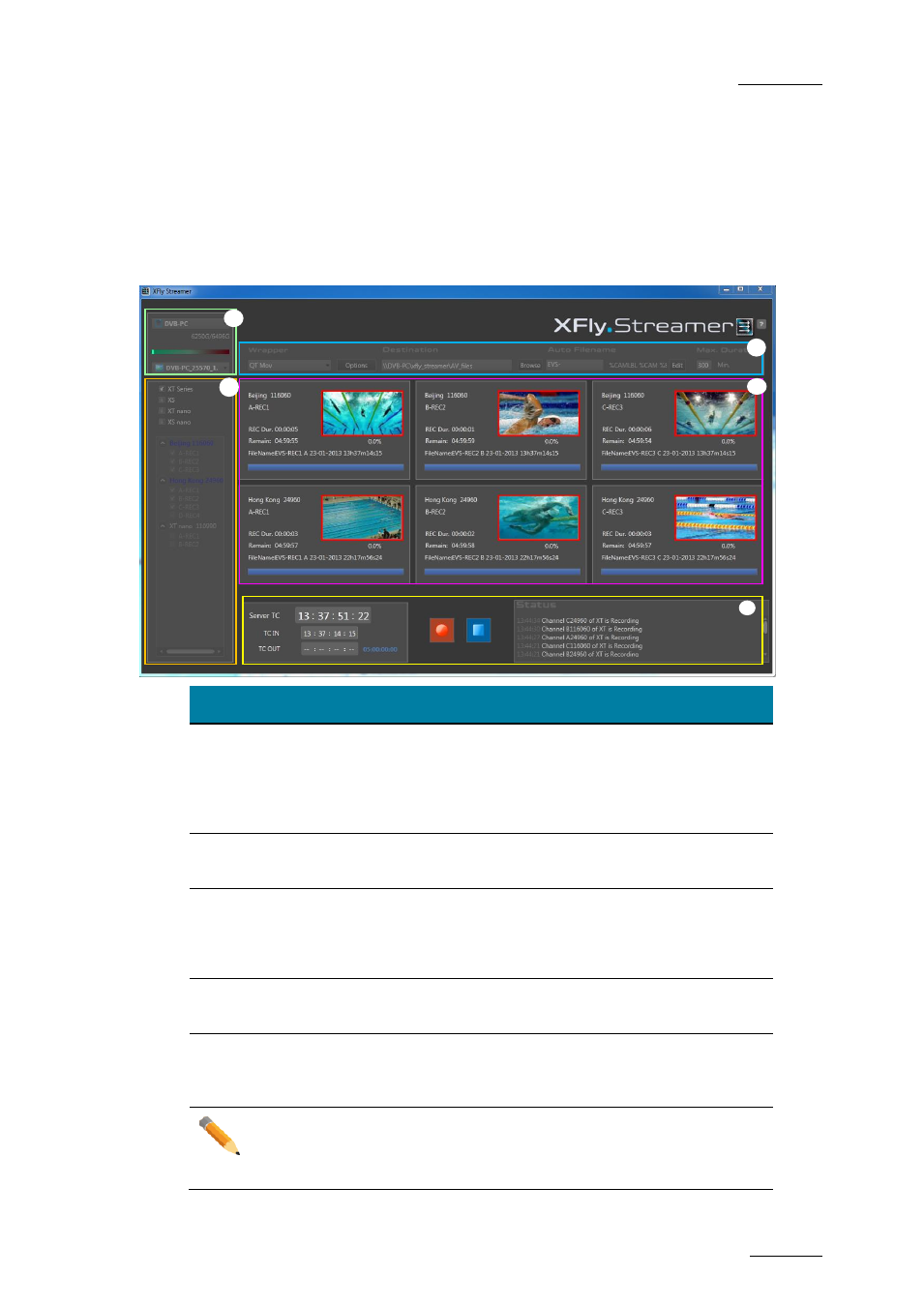

The XFly Streamer user interface consists of five main areas. They are highlighted on the
following screenshot and described in the table below:
Area Description
1. Storage &
Processing
Devices Selection
From this area, the operator can selected the
storage device to store the AV files and also the
processing device i.e. the XTAccess to process
the different tasks for grabbing thumbnails and for
recording streams
2. Servers List This area displays the list of all servers detected
on the network
.
3. Settings The settings area gives access to the selection of
file format, folders to save the AV files, auto
naming function and the maximum duration for
recording.
4. Channels Pane This area shows the server Recorder channels
which are selected in the servers’ list.
5. Commands &
Status This area displays the Timecode reference and
duration, the status and the 2 main commands to
start and stop the recordings.
Note:
On the top left of the window, the caption bar mentions the Application
name and the version number. There is no menu bar.
