EditRec – User Manual

EVS Broadcast Equipment

Issue 11.00.B

9

2.2.2 EVS

M

ENU

C

ONFIGURATION

S

POT

B

OX

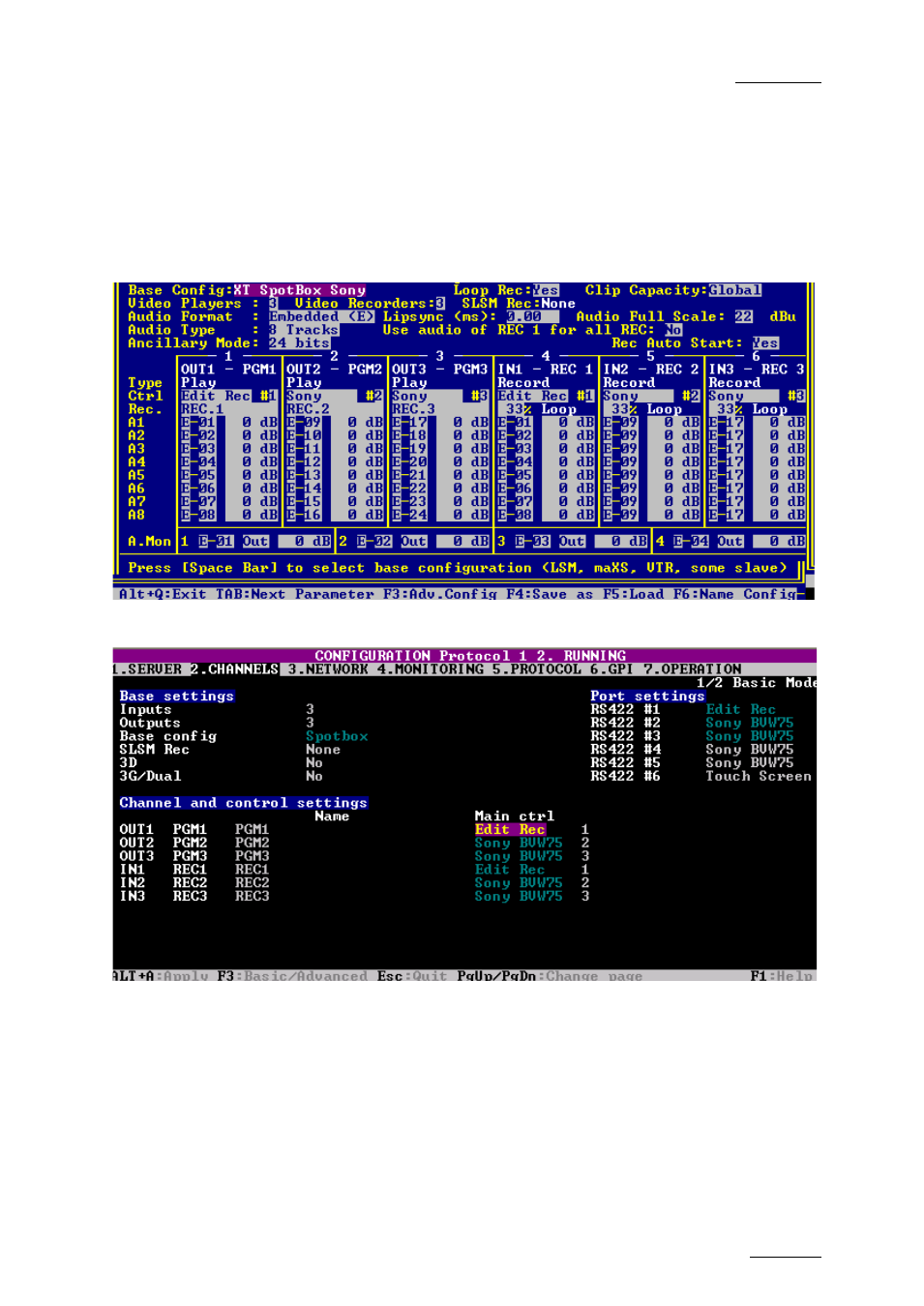

Here is the typical basic configuration for a 6ch Server.

Multicam 10:

Multicam 11:

You must respect the following restrictions:

•

“Spotbox” as basic configuration.

•

EditRec has to be declared for one PGM and one REC (no special pairing is

required), and use the same serial connection number.

•

No restrictions for other channels. Usually PGM2 and PGM3 are controlled in

Sony protocol by Linear Edit Controller as “source” VTR. This can be in primary

or secondary control (CTRL+F1).
With some linear controllers, it is also possible to use VDCP control allowing to
