The Channel Management allows you to link a Player channel of

one specific XT to one Video Display (Video Board).

To define a link between a PGM and a video display, proceed as
follows:

1. Check the box in the Linked column

2. Select which video display device it is linked to from the drop

down list in the video display column.

The linked box can be checked without being linked to a Video
Display. For example, this is used when an external monitor is
connected at your workstation.

Note

All these parameters are local to the IP Director

workstation and must be set independently on all IP
Director Workstations using the Remote Installer tool.

When a Player channel is linked to an IP Director, you can see it

on the Title bar of the Video Display panel.

1.2.4 S

ELECTING THE

A/V

B

OARD IN THE

V

IDEO

D

ISPLAY

When you open the Video Display, you need to select the
appropriate A/V board to be able to view the channel associated

to the board.

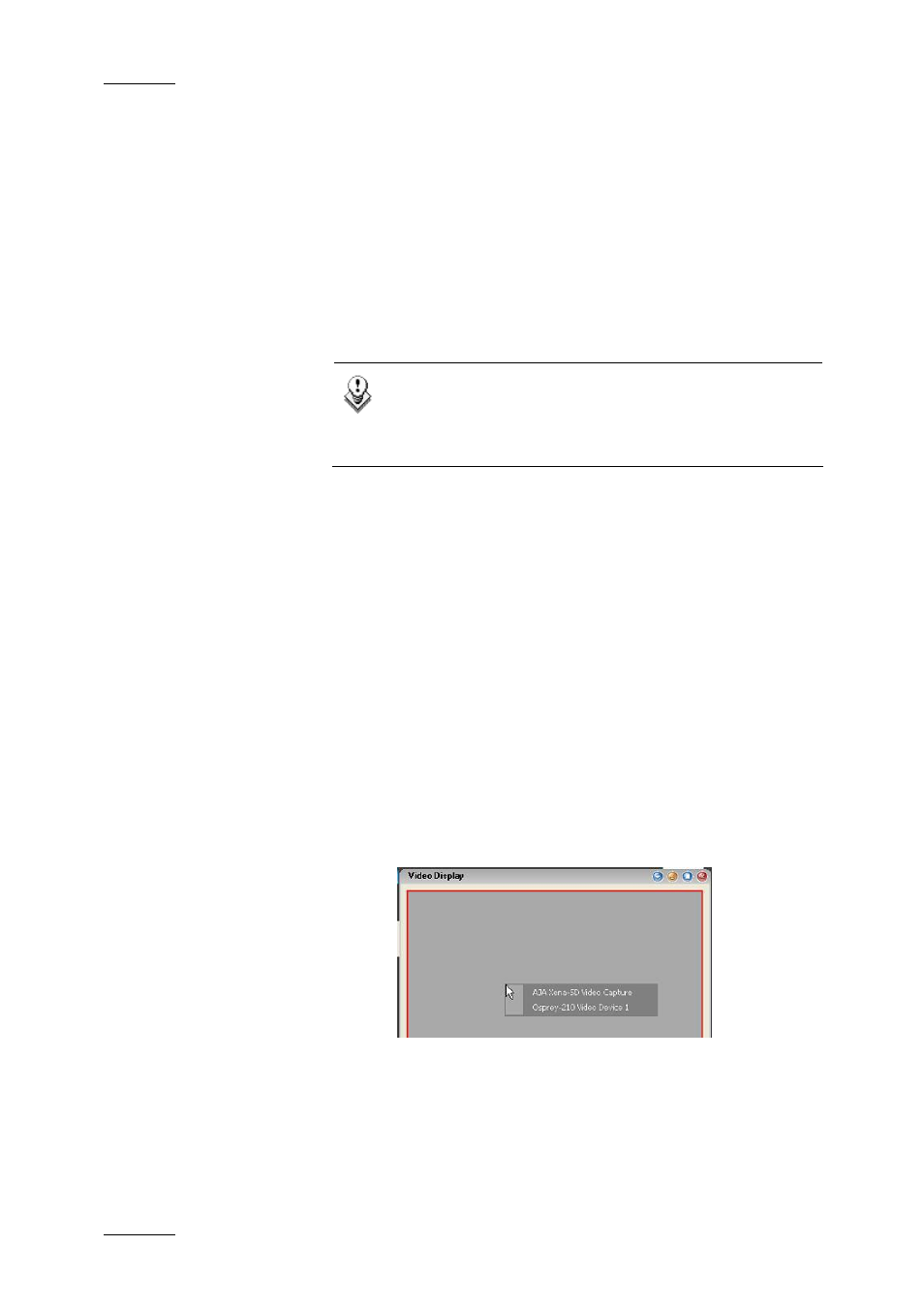

To select the appropriate A/V board in the Video Display window,
proceed as follows:

1.

Right-click the Video Display window.

This opens a contextual menu that displays the names

of the A/V board(s) connected to the IP Director
workstation.

2.

From the contextual menu, select the A/V board linked
to the Video Display in the Remote Installer application.

3.

With A/V boards other than AVH boards, a dialog box
specific to the selected board opens:

8
