Supported EDL Formats
Director's Cut supports the following EDL export formats:
• AVID media composer (AAF)
• AVID interplay (webservice AAF checkin)
• FCP (XML EDL)
• IPDirector NL or targets (basically on removable HDD)

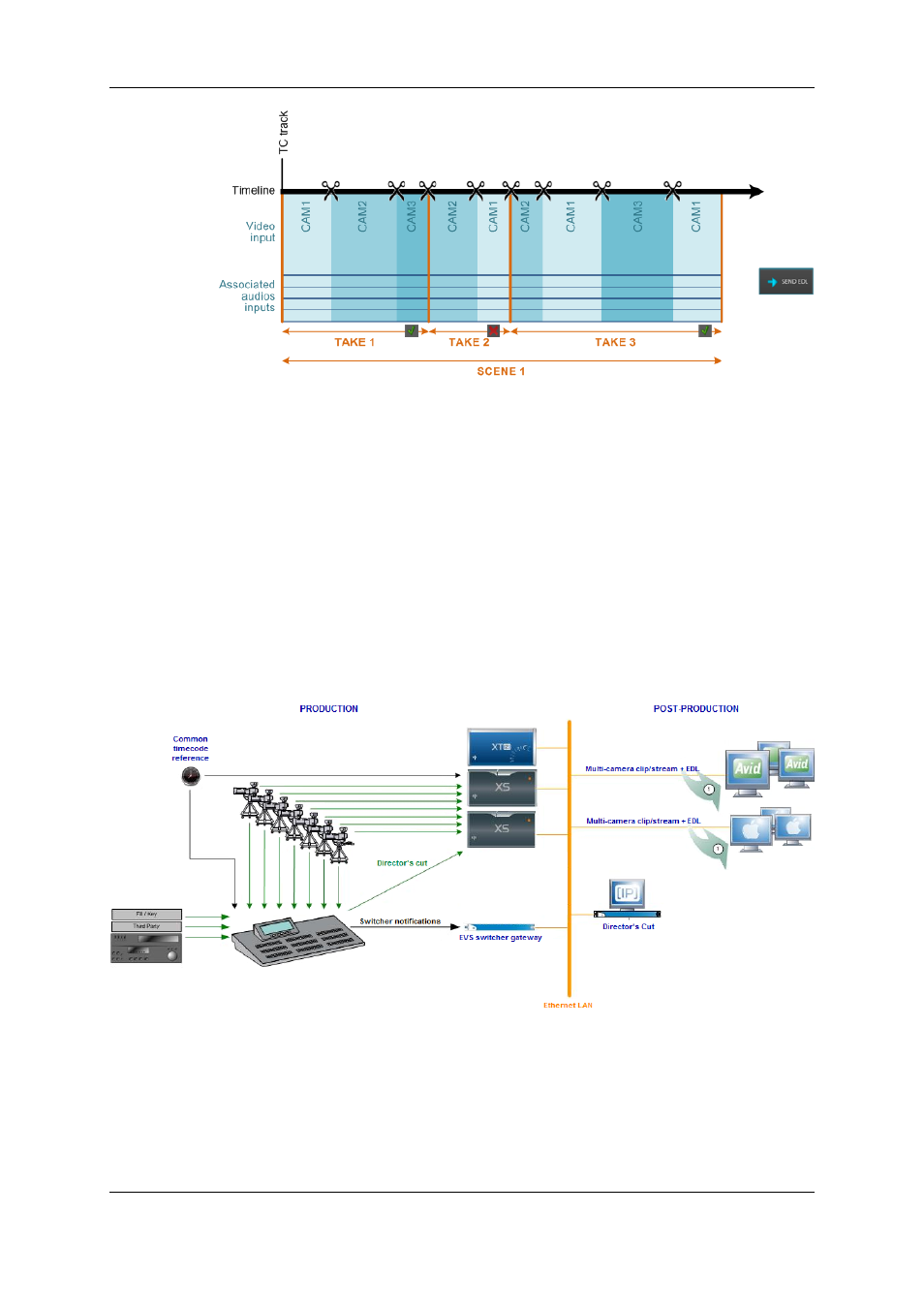

1.2. Typical Workflow
A common timecode reference is shared between the EVS servers, the switcher, and the
EVS switcher gateway.
Camera inputs are connected to the switcher inputs and to the EVS server recorders.
The switcher output is connected to one EVS server recorder, and to the EVS switcher
gateway over Ethernet. The EVS switcher gateway understands the output from most
switchers on the market, and can translate this information for the Director's Cut module.
