IMPORTANT:
Use only genuine factory replacement parts on your Motorcycle Rack. Do not
substitute homemade or nontypical parts. If a bolt is lost or in need of replacement, for your safety and
the preservation of your motorcycle rack, be sure to use a replacement bolt of the same grade (Usually
Grade 5, refer to parts list). Repair parts may be ordered through your nearest Blue Ox dealer or
distributor.

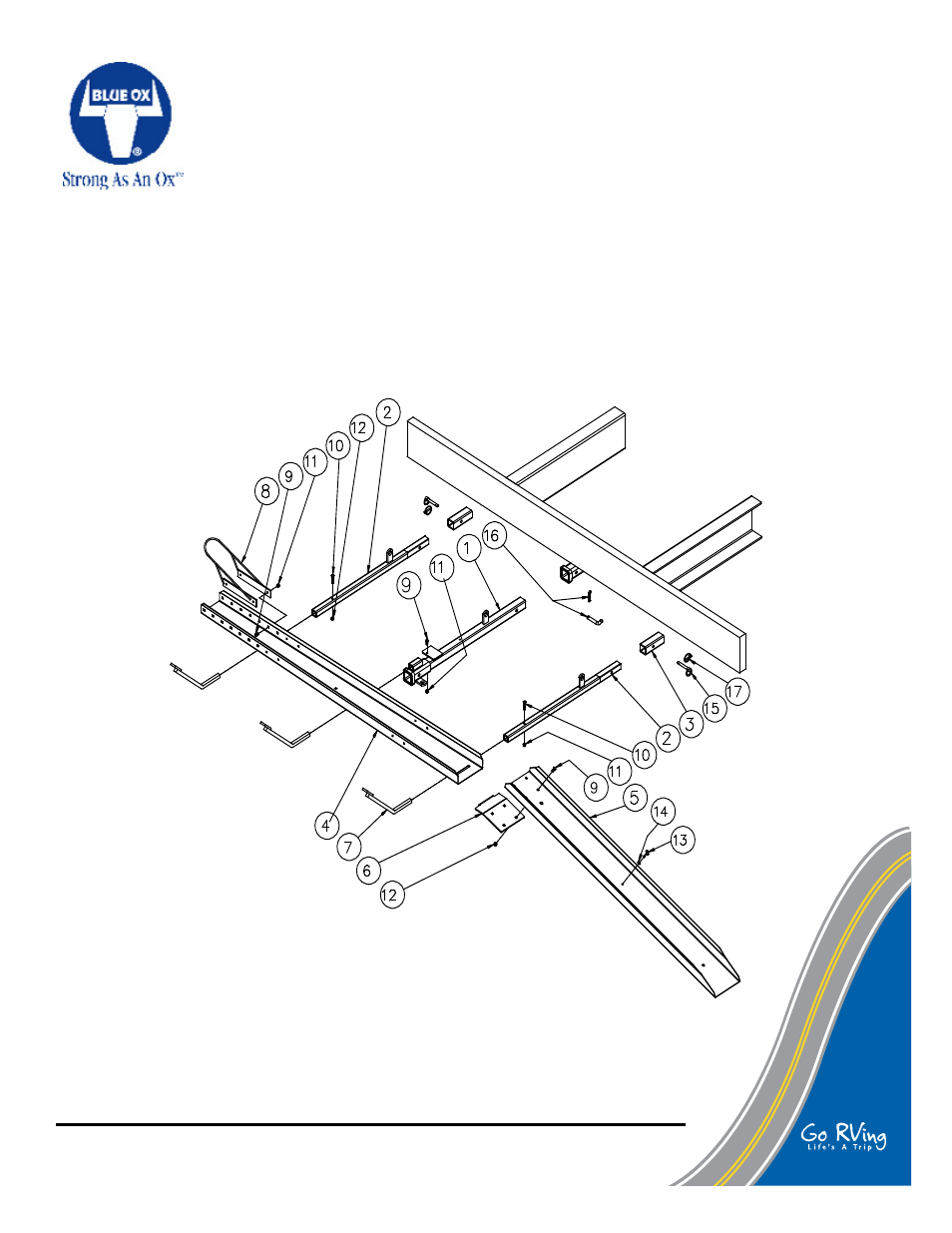

Parts List
Ratchet Drill 13/32" Drill Bit
9/16" Socket 3/4" Wrench 9/16" Wrench
Tools Required
Ref. Qty. Part Description
No. No.
1 1 61-5632 ...............................Wldm't, Receiver Ext., Cycle Rack
2 2 61-5635 .................................... Wldm't, Receiver Ext., Outside
3 2 107-2397 .......................................Tube, Receiver, Cycle Rack
4 1 101-6753 ......................................... Motorcycle Deck, SC2000
5 1 101-6751 ........................................ Motorcycle Ramp, SC2001
6 1 101-6752 .........................................Connection Plate, SC2001
7 3 61-6067 ....................................................Weldment, Tie Down
8 1 299-0376 ............................................Wldm't, Tire Support, ZP
Ref. Qty. Part Description
No. No.
9 9 201-0034 .................................3/8"-16 x 1" Carr. Bolt,Grd.5, ZP
10 2 201-0172 ......................................3/8"-16 x 2-1/4" Carr. Bolt,ZP
11 7 202-0090 ...................... 3/8"-16 Hex, Nylon Insert Lock Nut, ZP
12 4 202-0144 ........................ 3/8"-16 Hex, Nylon Jam Lock Nut, ZP
13 1 201-0783 ......................................... 5/16"-18 x 3" Wing Bolt,ZP
14 1 203-0002 ................................................. 5/16" Flat Washer, ZP
15 2 229-0520 .......................................... Pin, 1/2" x 2-5/8" w/#9 clip
16 1 200-1483 ............................................... Pin, 5/8" x 2-5/8" w/clip
17 2 62-3213 .......................................................Quick Pin Assemby
