Blue Ox DH9000 User Manual
Blue Ox For the car
DH9000
Diamond Hitch Companion Shank Kit
Installation Instructions
405-0256 Rev A
Page 1 of 2
11/6/13

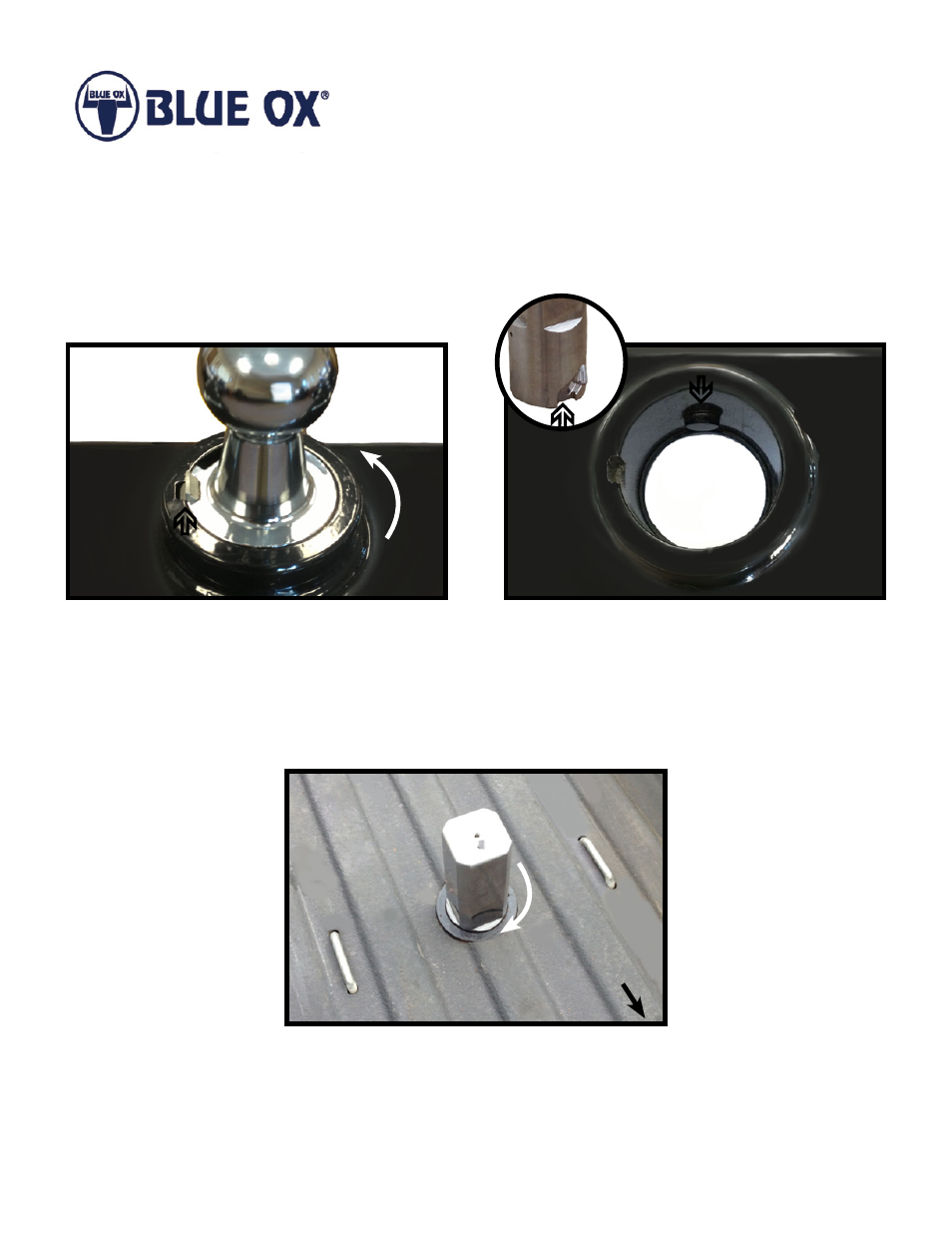

3. Twist the shank 30 degrees clockwise
while lifting slightly until ball drops into
position and locking tab snaps in place.
Install the hitch onto the shank per
manufacturer’s specifications.
2. Align pin of the ball housing (gray)
with the slot in shank (white). Drop into
receiver cylinder and depress locking tab.
Fits B&W Companion Fifth Wheel Hitch Models RVK3500 & RVK3400
to Blue Ox® Diamond Hitch
Front of Vehicle
1. Remove the existing ball by pushing in
the locking tab and then lift and rotate the
ball assembly counterclockwise. Continue
rotating and lifting until the ball stud clears
the receiver cylinder.
