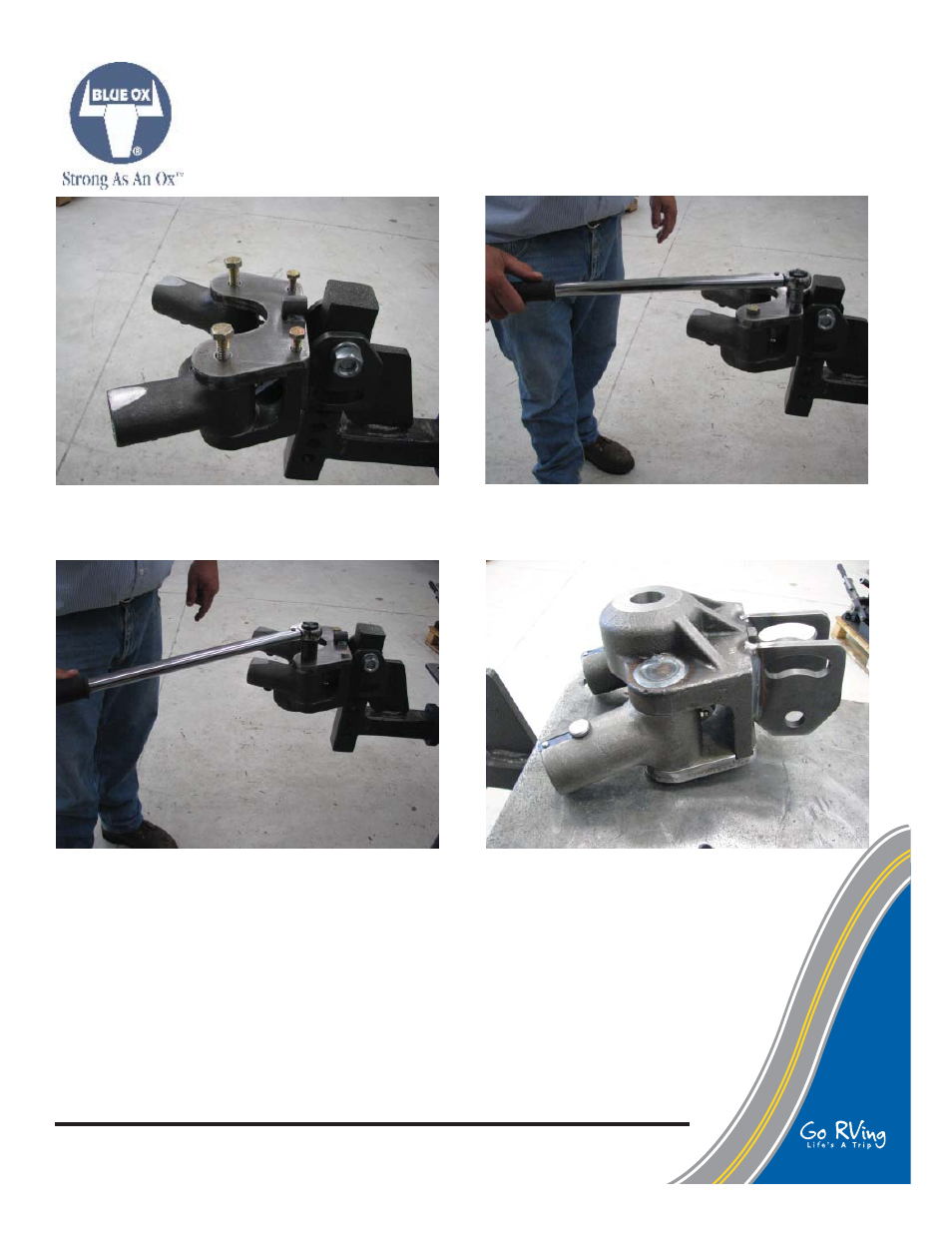

9. Replace the plate and start the bolts. Use loctite
on the smaller bolts.
9
9
Ф Ф
11. Tighten the 1/2" bolts to 60 ft. lbs. Note: 60 ft.
lbs. is a starting point, adjust to desired tension for
preferred sway.
11
11
Ф Ф
Ф
Ф
10. Tighten the 3/8" bolts to 47 ft. lbs.
10
10
Ф Ф
12. Turn the hitch right side up and install.
12
12
Ф
Ф
Installation
Instructions
Trunnion
Kit
84-0170
SwayPro
Trunnion
Kit
Page 3 of 3
405-0127 Rev. A
7/7/10
