Installation Instructions
BX88251
2 1/2" Receiver Adapter BX7520P
Serial No.
1. Remove the cotter pin (4) from the lunette ring.
2. Take off the castle nut (6).
3. Pull the lunette ring.
4. Slide the receiver adapter onto the tow bar.
5. Attach the castle nut (6).
6. Insert the cotter pin (4) through the yoke pivot (7).
Page 1 of 1
405-0153 Rev. A
10/20/10

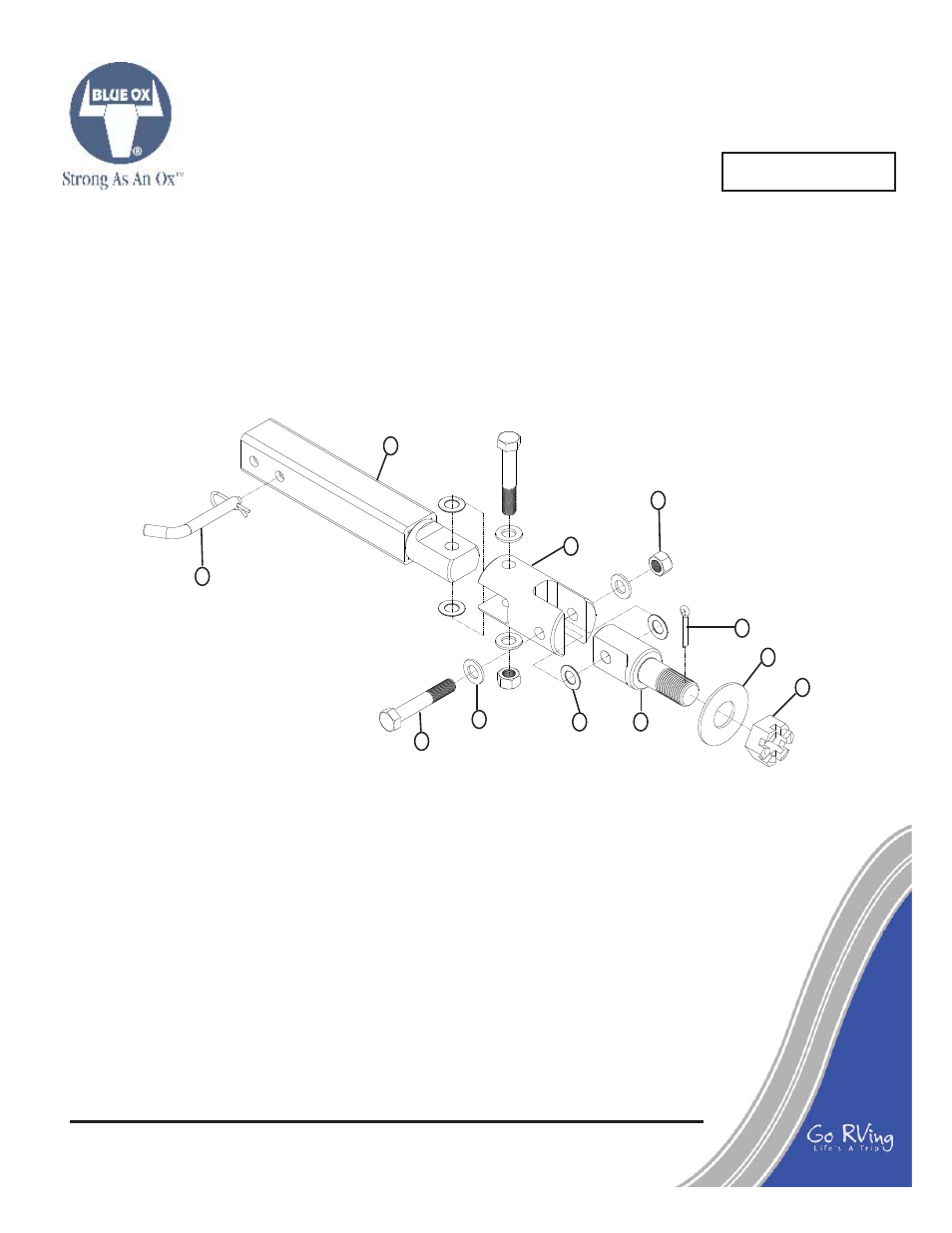

Parts List
Ref. No. Qty.
Part No.
Description
1
1
61-6801 ........................................................ WLDM'T, 2 1/2" RCVR TUBE, BX88251
2
1
207-0946 .................................................................... YOKE, 2 1/2" RCVR, BX88251
3
2
202-0193 .................................................... 3/4-16 HEX CENT. DIMP LOCK NUT, ZP
4
1
229-0202 ............................................................................ COTTER PIN, 1/4 X 2-1/2
5
1
203-0086 ................................................................................... 1-1/2 FLAT WASHER
6
1
202-0191 ............................................................................ 1 1/2 INCH CASTLE NUT
7
1
207-0947 .........................................................YOKE PIVOT, 2 1/2" RCVR, BX88251
8
4
290-0360 ........................................................ SPACER, PLAS, 1/16 X 13/16ID X 1.5
9
4
203-0064 .............................................................................. 3/4 SAE FLAT WASHER
10
2
201-0615 ...............................................................3/4-16 X 4 1/2 HEX BOLT, GRD. 5
11
1
200-1701 ....................................................................... PIN, 5/8 X 4 EFF.,ZP,W/CLIP
