SwayPro™ Owner’s Manual & Installation Instructions
405-0104 Rev P Page 3 of 10 8/16/13
Important:
Use only genuine factory replacement parts on your SwayPro™. Do NOT substitute homemade or non-typical parts. If a bolt is lost or in need of
replacement, for your safety and the preservation of your SwayPro™, be sure to use a replacement bolt of the same grade (In most cases it will be
Grade 5, please reference the parts list above). Replacement parts may be ordered through your nearest Blue Ox® Dealer or Distributor. Failing to
follow and/or altering these installation instructions in either installation or required equipment will void the manufacturer’s warranty.

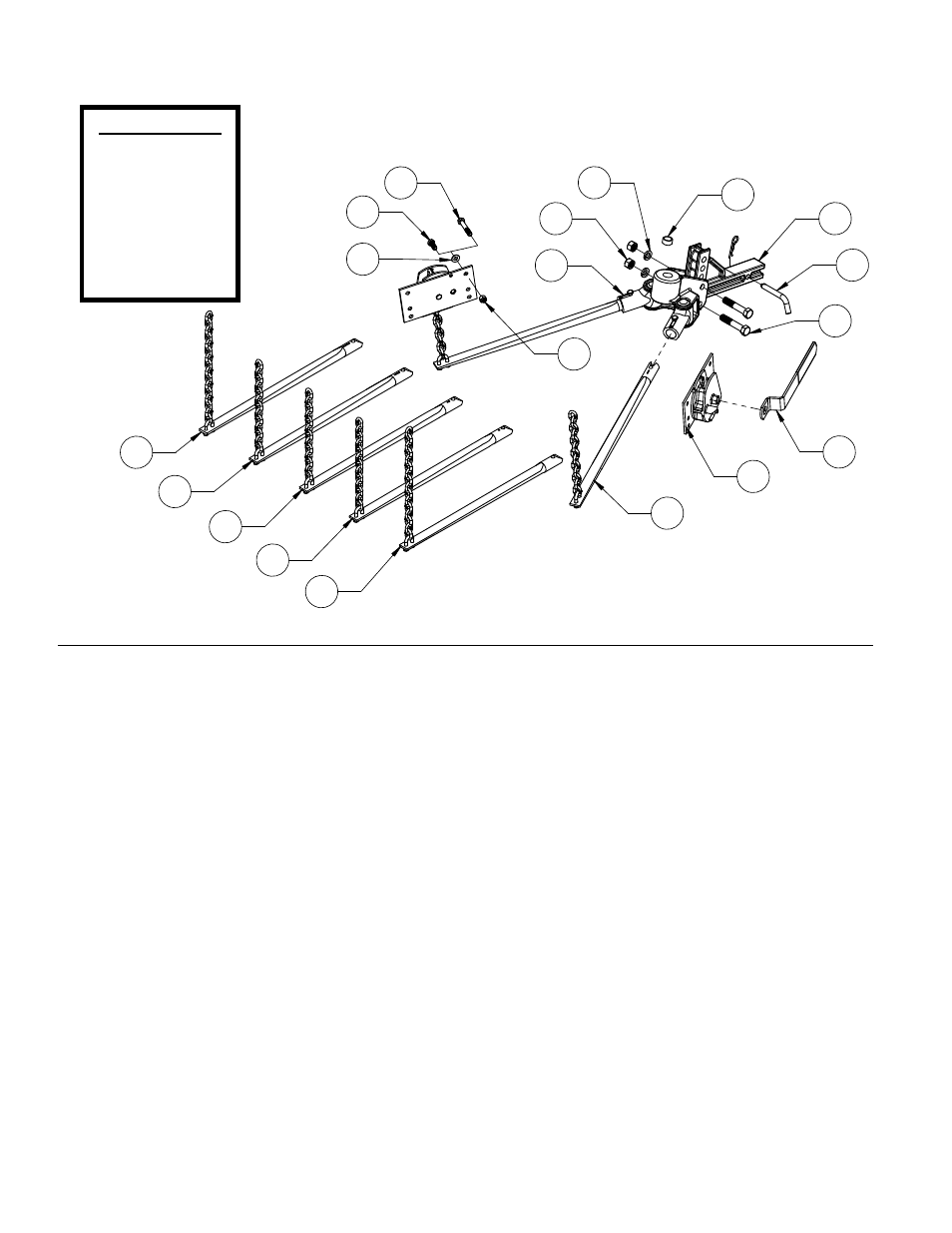

6
3
17
4
5
1
15
18
10
19
11
9
14
16
12
13
7
8
2
Note: Items #2 thru #7 depend on your
SwayPro™ model
Tools Required
Torque Wrench
Drill
Large Vise Grips
Tape Measure
1/2” Drill Bit
3/4” Socket
3/4” Wrench
1-1/16” Socket
1-1/8” Socket
Item No. Part No. Description Qty.
1.........................61-6980 ....................... Hitch Head Assembly ......................................................1
2.........................62-3935 ....................... 350 Lb. Spring Bar ..........................................................2
3.........................62-3538 ....................... 550 Lb. Spring Bar ..........................................................2
4.........................62-3537 ....................... 750 Lb. Spring Bar ..........................................................2
5.........................62-3536 ....................... 1,000 Lb. Spring Bar .......................................................2
6.........................62-3558 ....................... 1,500 Lb. Spring Bar .......................................................2
7.........................62-3932 ....................... 2,000 Lb. Spring Bar .......................................................2
8.........................62-3775 ....................... Bolt On Rotating Latch....................................................2
9.........................62-3868 ....................... Rotating Latch Wrench ...................................................1
10.......................107-3042 ..................... 1-1/4” OD x 1-1/32” ID x 5/8” Spacer Tube .....................1
11 .......................200-1483 ..................... 5/8” OD x 3” Eff. Pin with Clip .........................................1
12.......................201-0011 ...................... 1/2”-13 x 1-1/4” Hex Head Bolt, Grade 5, ZP .................8
13.......................201-0490 ..................... 1/2”-13 x 3” Hex Head Bolt, Grade 5, ZP ........................8
14.......................201-0914 ..................... 3/4”-10 x 4” Hex Head Bolt, Grade 5, ZP ........................2
15.......................202-0007 ..................... 3/4”-10 Hex Nut, ZP ........................................................2
16.......................202-0094 ..................... 1/2”-13 Hex Nylon Insert Lock Nut, ZP ...........................8
17.......................203-0005 ..................... 1/2” Flat Washer, ZP .......................................................8
18.......................203-0014 ..................... 3/4” Lock Washer, ZP .....................................................2
19.......................299-0579 ..................... Standard Receiver Hitch Mount ......................................1
