Fig. 10, Toad side rv side, System wiring diagram – Blue Ox BX88144 User Manual
Page 8
© 2005, 06, 11 Blue Ox Division, Automatic Equipment Mfg. Co. • One Mill Road, Industrial Park
Pender, Nebraska 68047 • Phone 402-385-3051 • Fax 402-385-3360 • www.blueox.com
TM

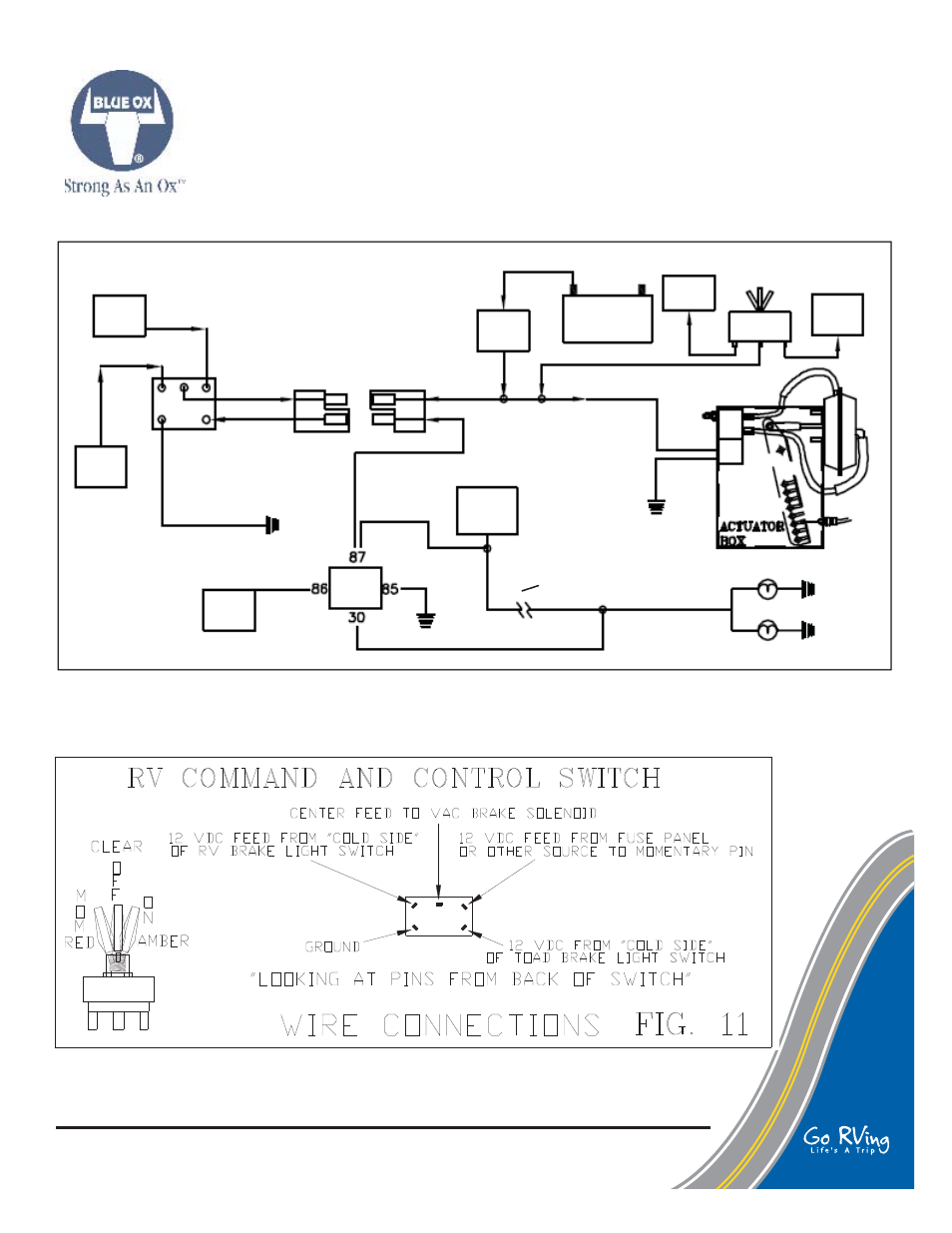

FIG. 10
RV FUSE PANEL
(CONSTANT)
RV
BRAKE
SWITCH
LIGHTED
SWITCH
RV DASH
SYSTEM WIRING DIAGRAM
GROUND
TOAD
BRAKE
SWITCH
BREAK
AWAY
SWITCH
TOAD
BATTERY
+
_
TOAD SIDE
RV SIDE
12 VOLT
FUSE PANEL
CONSTANT
UNLIGHTED
SWITCH
12 VOLT
FROM
IGNITION
MOM.
TEST
ANTI-
THEFT
"ON"
TOW
CAR FUSE
PANEL
(IGNITION)
RELAY
CONNECTION
ACROSS TOWBAR
VEHICLE BRAKE LIGHTS
CUT BRAKE WIRE THAT IS HOT
WHEN BRAKE IS APPLIED
Page 8 of 10
292-5809 Rev. C
2/21/11
