A typical MAxes
TM
-2 VTI based system has the following features:
•
2-axis magnetic field vector magnet with vertical access.
•
Low-loss liquid helium cryostat with top loading sample insert with variable temperature from <2K to
400K
•
3.0 Tesla vector field in any direction with up to 12.0 Tesla in vertical axis
•
4-quadrant power supplies and web enabled magnet controllers for fast ramping capability
•
Cryogen level instrumentation
•
Two channel temperature controller
•
Color coded, quick-disconnect power cables (e.g., no tools required)
•
Pumping station for variable temperature insert (VTI)
•
System software interface for magnet control (LabVIEW
TM
)
•
Integrated instrumentation console and associated cables
•
Customized system manual

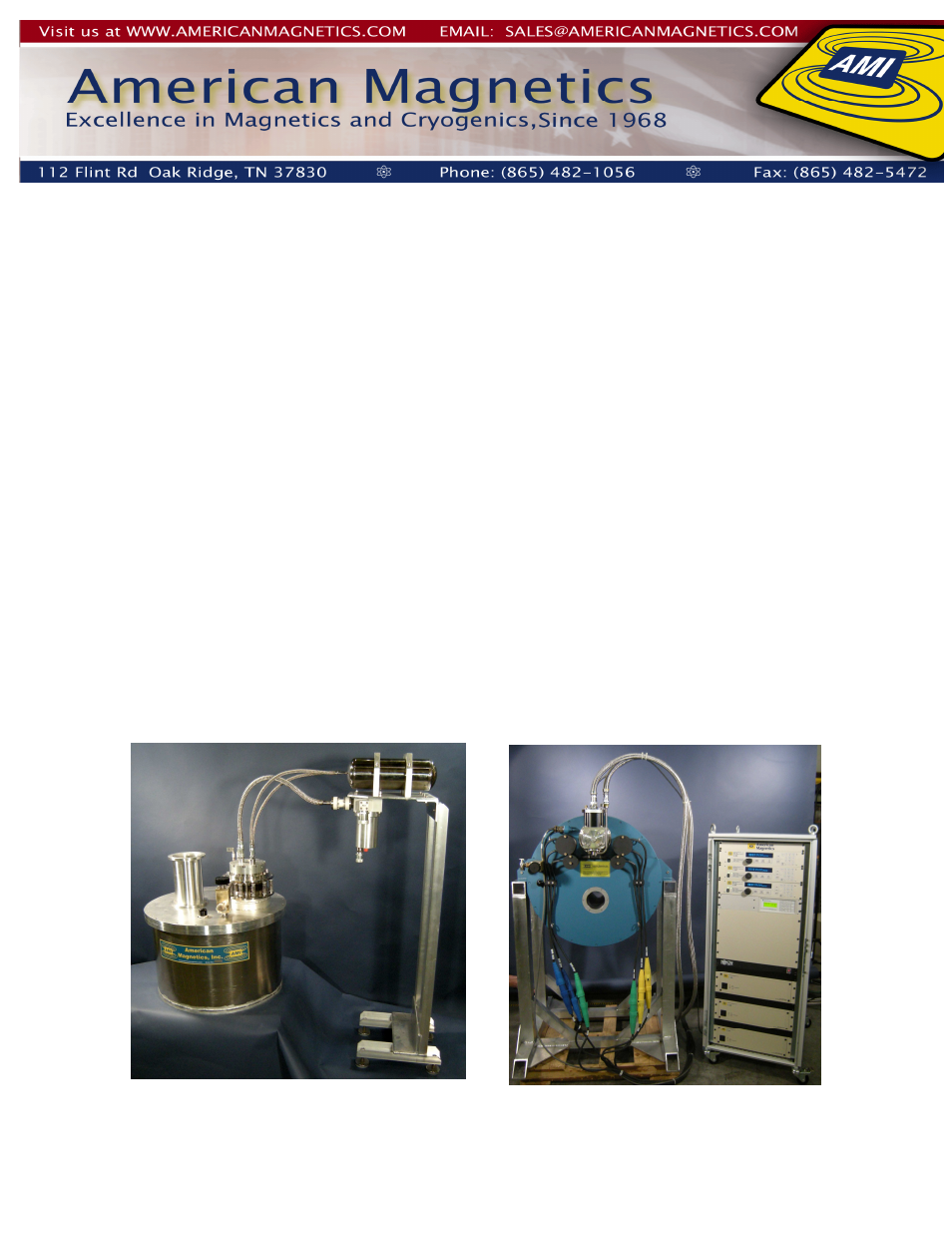

MAxes
TM
MX-3 (3-axis) Vector Magnet System
Over the last year American Magnetics has delivered many unique MAxes
TM
systems. This includes the
world’s first Nb
3
Sn high field vector system as well as Cryogen free MAxes
TM
system. The high field 3-
axis system produced 12T in vertical plane combined with two 1T split coils in the horizontal plane. It
could also be run with peak fields of 1T, 1T and 9T simultaneously. The cryogen free MAxes
TM
shown
below produced 1T vector field with a 100 mm room temperature bore. These systems are being offered
with either a GM or pulse tube 4K cryocooler. For users desiring lower vibration, a pulse tube cryocooler
has been used & in these cases the cryocooler is mounted using bellows assembly while the motor is
mounted remotely.
