The GPS 40’s optional mounting bracket allows fixed
installation on any flat vertical or horizontal surface,
and permits easy removal for portable use. The kit can
be installed with or without the swivel base.
To install the bracket on a flat surface or on a
bulkhead without the swivel base, mount the L-brack-
et directly to the surface desired with three #8 flathead
screws (not included). Once the L-bracket is installed,
the viewing angle may be adjusted by loosening the
knob at the bottom right of the bracket.
For swivel base installation, mount the swivel base
directly to a flat surface with three #8 flathead screws. Install the L-bracket onto the

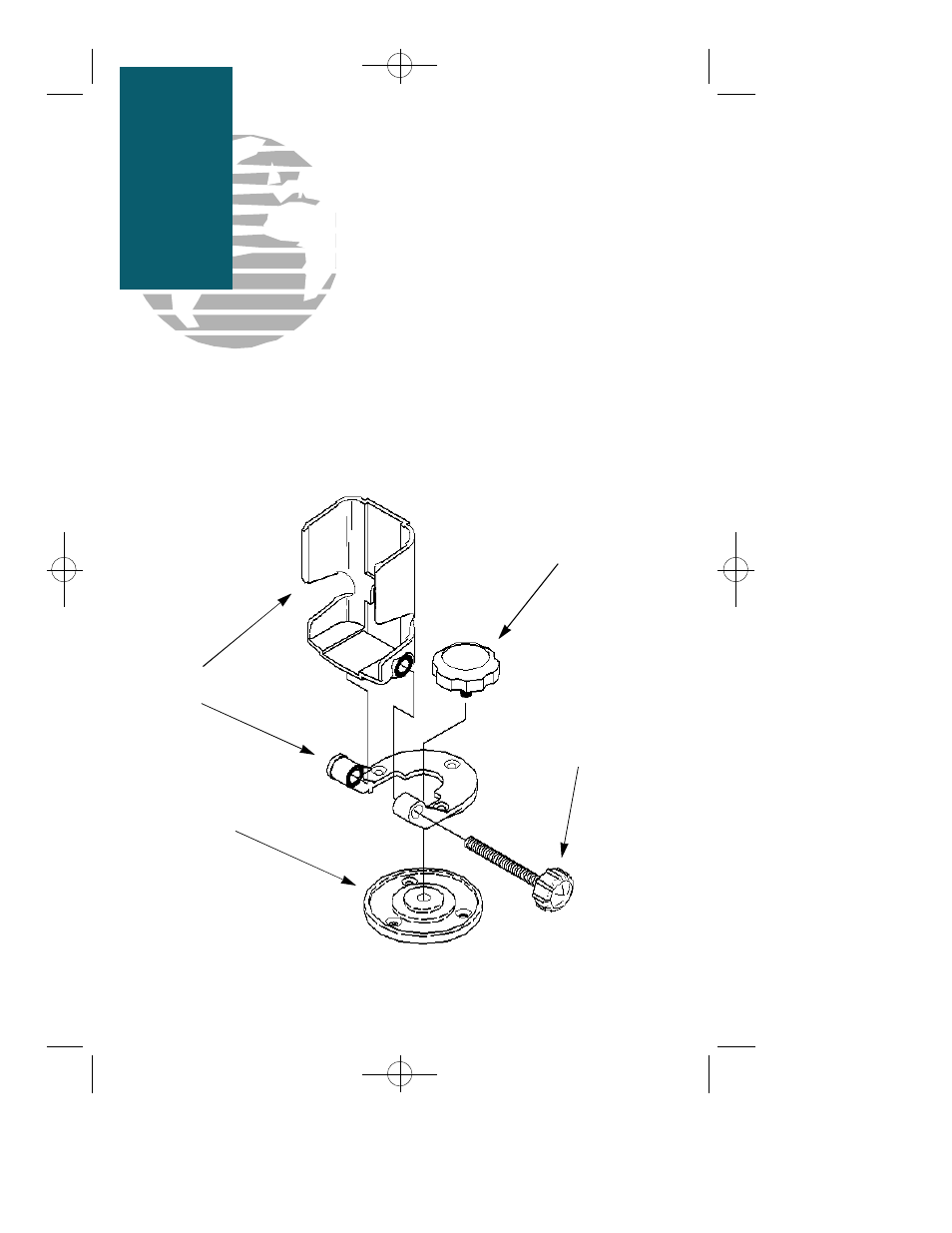

swivel base using the knob provided (see diagram below). The swivel angle may also
be adjusted by loosening the knob.
Swivel Adjustment Knob
Angle Adjustment Knob
Swivel Base
L-Bracket
