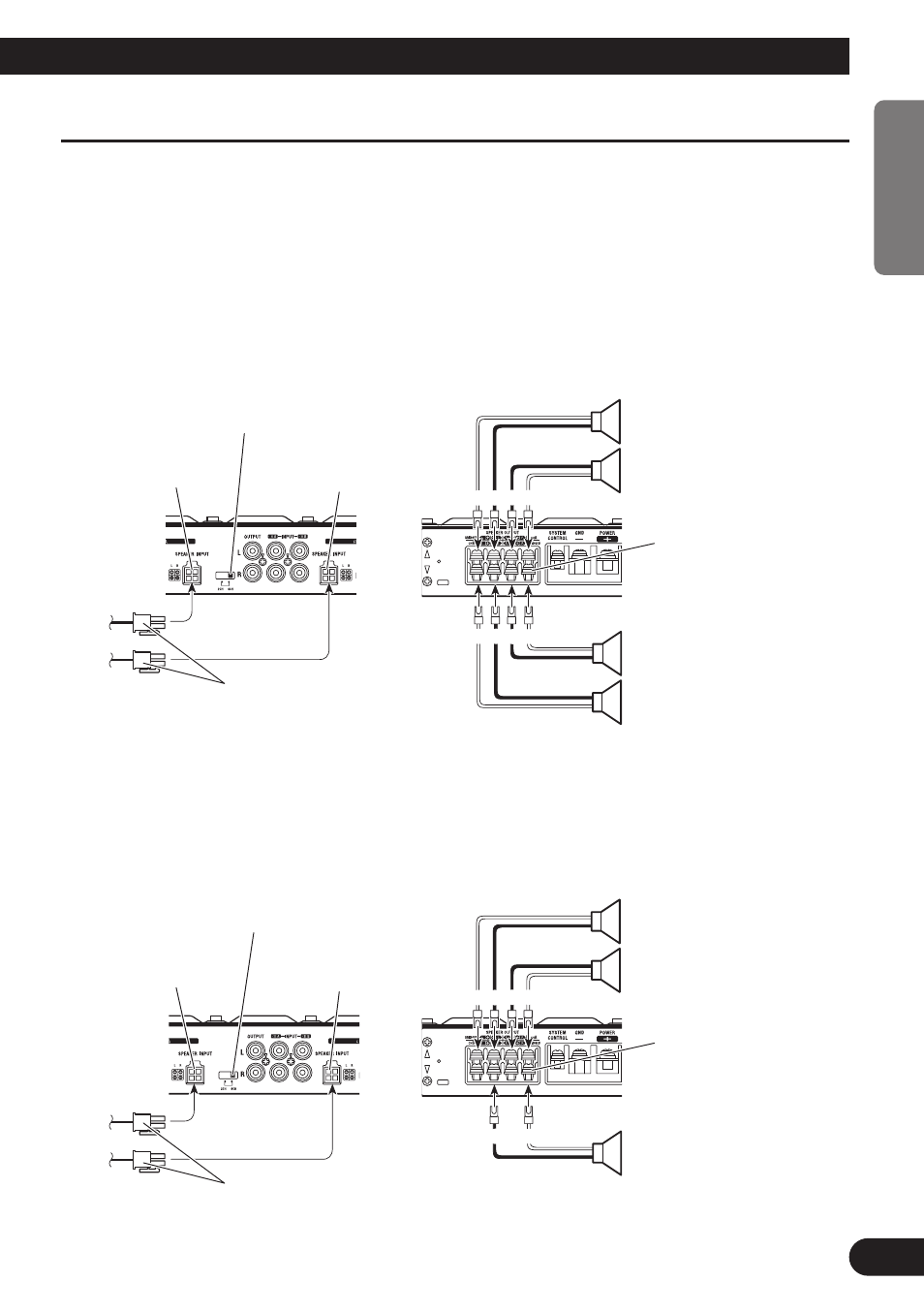

Connecting the Speaker wires
The speaker output mode can be four-channel, three-channel (stereo +
mono) or two-channel (stereo, mono). Connect the speaker leads to suit the
mode according to the figures shown below.
• When either the RCA input or the speaker input is connected, RCA output
becomes functional. Do not connect both the RCA input and the speaker input at
the same time.
Four-channel mode
Three-channel mode
+ + ≠
+ ≠
≠
+ + ≠
+ +≠ ≠
≠
Input Select Switch
For two-channel input, slide this switch to
the left. For four-channel input, slide this
switch to the right.
(Left)
Speaker out A
(Right)
Speaker input
terminal A
Speaker output
terminal
(Right)
Speaker out B
(Left)
Speaker input
terminal B
Speaker input
connector
Input Select Switch
For two-channel input, slide this switch to
the left. For four-channel input, slide this
switch to the right.
(Left)
Speaker out A
(Right)
Speaker input
terminal A
Speaker output
terminal
Speaker out B
(Mono)
Speaker input
terminal B
Speaker input
connector
