English-7
Chapter 3 Installation & First Time Setup
3.1 Hardware Installation
Please follow the steps below to properly connect Game Capture HD and your TV / video game
consoles.

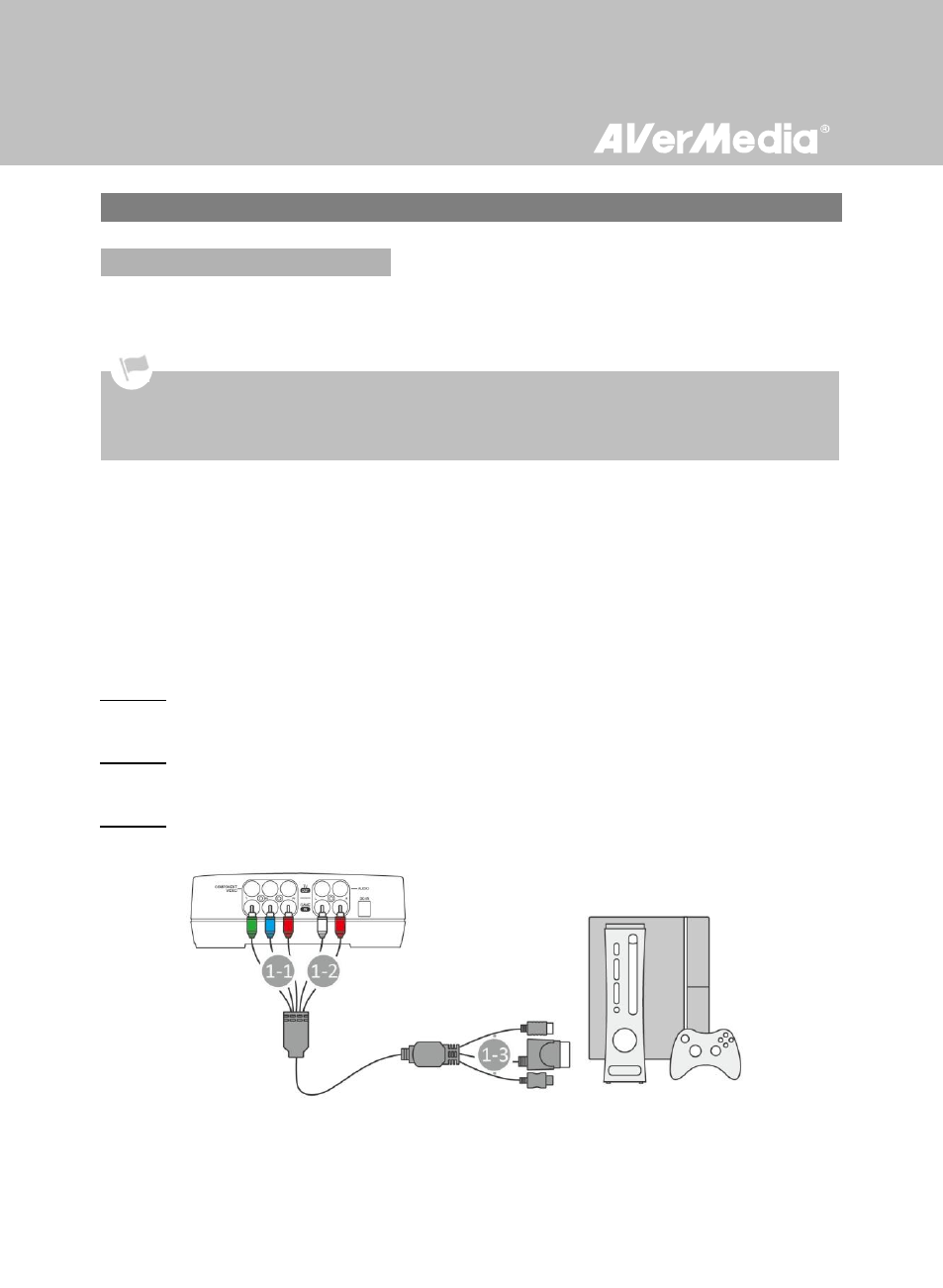

Step 1
Connecting the Device to Your Game Console Using Universal Component
Cable
Universal Component Cable, an optional accessory, is used to hook up your game console to Game
Capture HD at a time.
This cable is composed of component video cable with RCA audio cable at one end and three cables
compatible with PS2/3, Xbox and Wii at the other end.
Step 1-1:
Plug the green, blue, red connectors into the COMPONENT VIDEO IN port on the rear of the device.
Step 1-2:
Plug the white and red connectors into the AUDIO IN port on the rear of the device.
Step 1-3:
Plug the other end to your game console (choose a console-specific cable).
 Game Capture HD supports one game console connection at a time only.
 If you would like to install internal hard drive, install it before making the connections.
 Make sure that the color of each cable matches the corresponding jack color while making the connections.
 Make sure to power off your game console before making the connections.


