34
Fatal1ty 990FX Professional Series Motherboard
English
HDMI_SPDIF Header HDMI_SPDIF header, providing
(2-pin HDMI_SPDIF1) SPDIF audio output to HDMI
( see p.4 No. 1) VGA card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the HDMI_SPDIF
connector of HDMI VGA card to
this header.

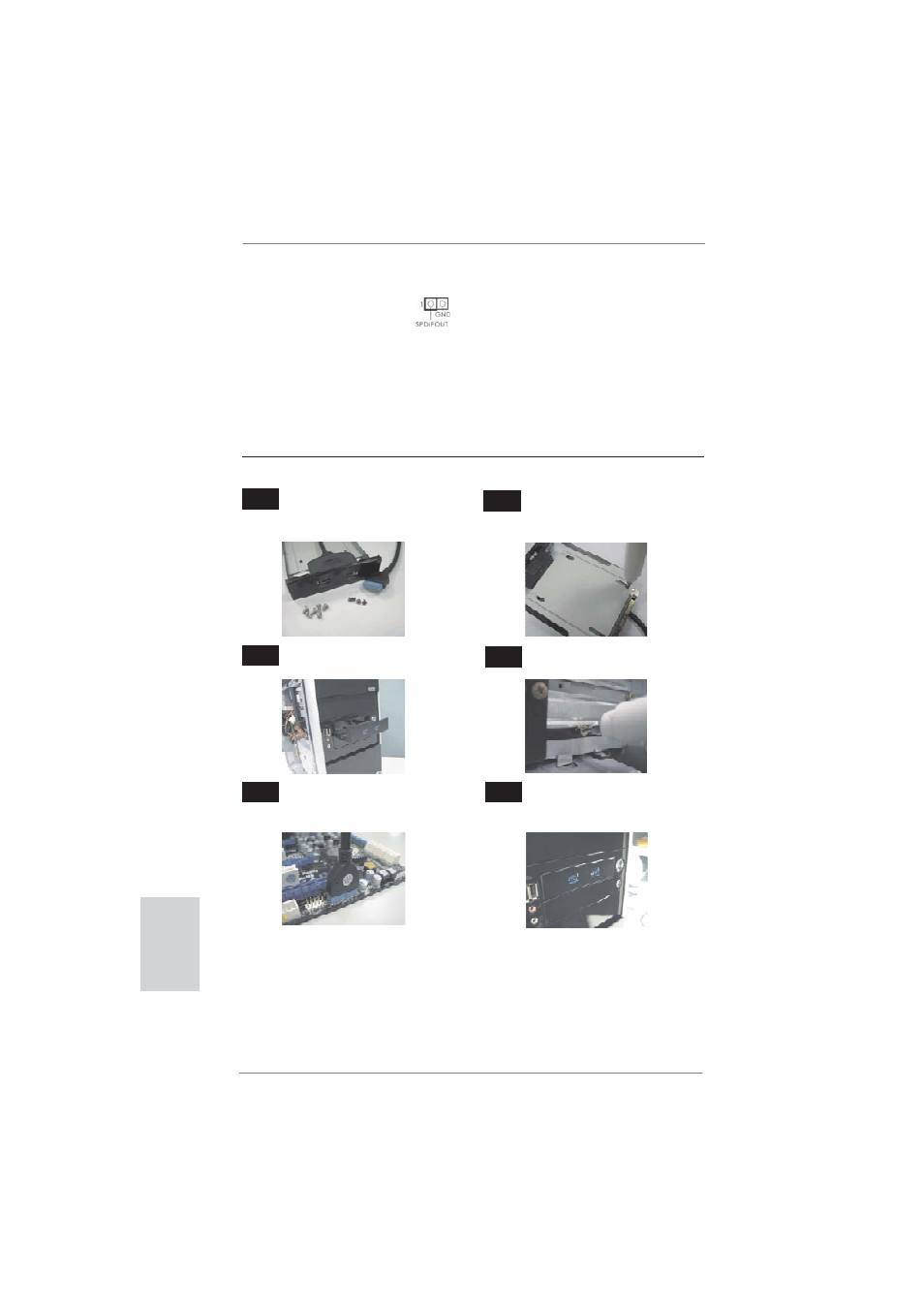

Front USB 3.0 Panel Installation Guide
Intall the Front USB 3.0 Panel into
the 2.5” drive bay of the chassis.
Step 3 Screw the Front USB 3.0 Panel to
the drive bay with six chassis screws.
Prepare the bundled Front USB 3.0
Panel, four HDD screws, and six
chassis screws. Step 1 Step 2 Screw the 2.5” HDD/SSD to the Front
USB 3.0 Panel with four HDD screws.
Step 4
The Front USB 3.0 Panel is ready
to use. Plug the Front USB 3.0 cable into
the USB 3.0 header (USB3_1_2 or
USB3_3_4) on the motherboard. Step 5 Step 6
