28
ASRock A55 Pro3 Motherboard
English

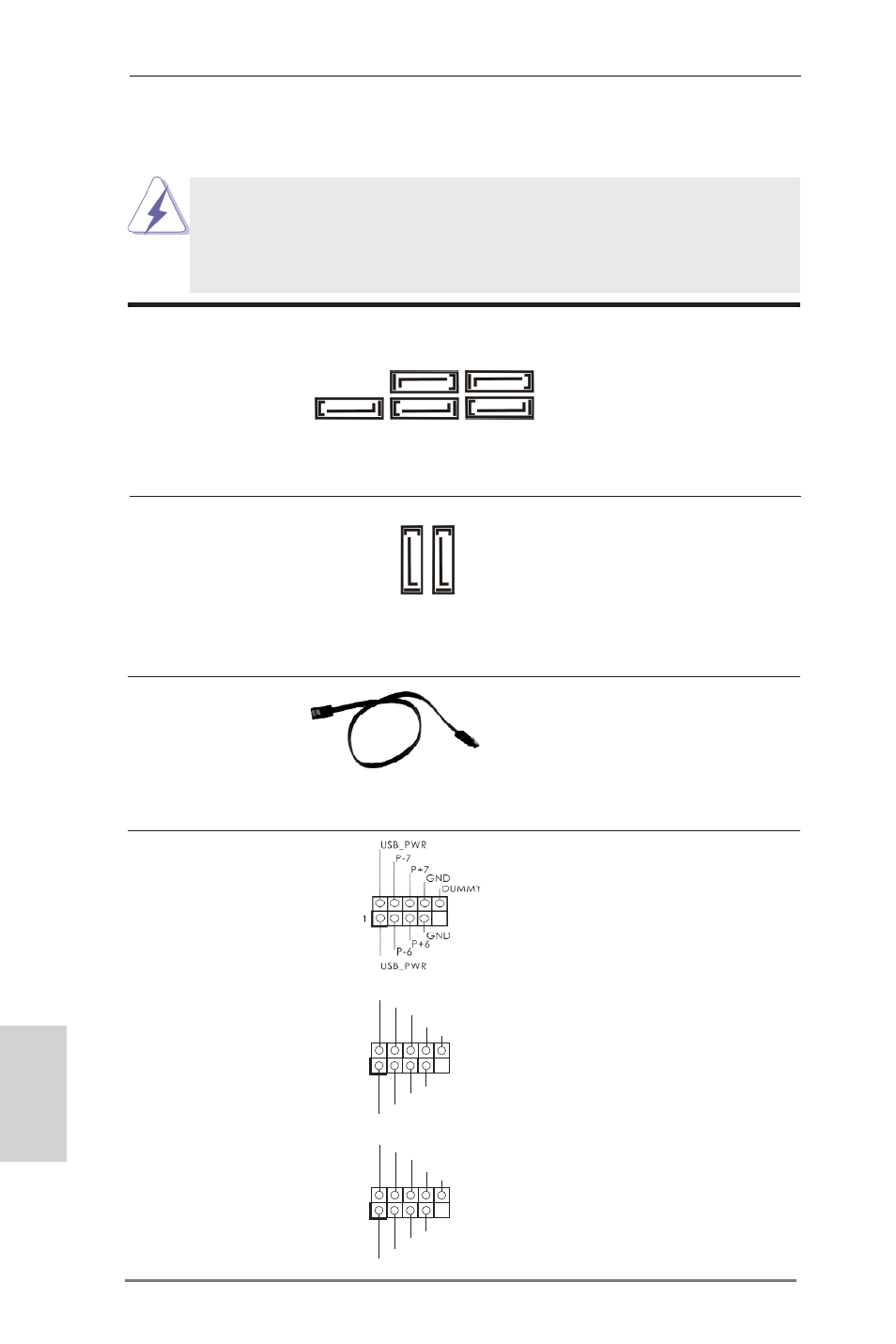

2.10 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA3 Connectors These two Serial ATA3
(SATA3_1: see p.2, No. 12) (SATA3) connectors support
(SATA3_2: see p.2, No. 13) SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
1
USB_PWR
P-8
GND
DUMMY
USB_PWR
P+8
GND
P-9
P+9
1
USB_PWR
P-10
GND
DUMMY
USB_PWR
P+10
GND
P-11
P+11
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB6_7) ports on the I/O panel, there
(see p.2 No. 26) are three USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB8_9)
(see p.2 No. 25)
(9-pin USB10_11)
(see p.2 No. 23)
Serial ATA2 Connectors These five Serial ATA2
(SATA2_1: see p.2, No. 21) (SATA2) connectors support
(SATA2_2: see p.2, No. 20) SATA data cables for internal
(SATA2_3: see p.2, No. 17) storage devices. The current
(SATA2_4: see p.2, No. 19) SATA2 interface allows up to
(SATA2_5: see p.2, No. 18) 3.0 Gb/s data transfer rate.
SA
TA3_2
SA
TA3_1
SATA2_3 SATA2_5
SATA2_1 SATA2_2 SATA2_4
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional) SATA / SATAII / SATA3 hard
disk or the SATAII / SATA3
connector on this motherboard.
