Major operating controls and their functions
Power LED [POWER]
This lights up green when DC power is supplied to the DC
12 V input connector .
Transmission Status LED [COMMUNICATE]
This lights up when data is being transmitted between the
controller and pan/tilt head.
Extended Distance Transmission LED [EXTENSION]
This lights up when this unit is used to extend the
transmission distance between AW-RP400 and
AW-PH400.

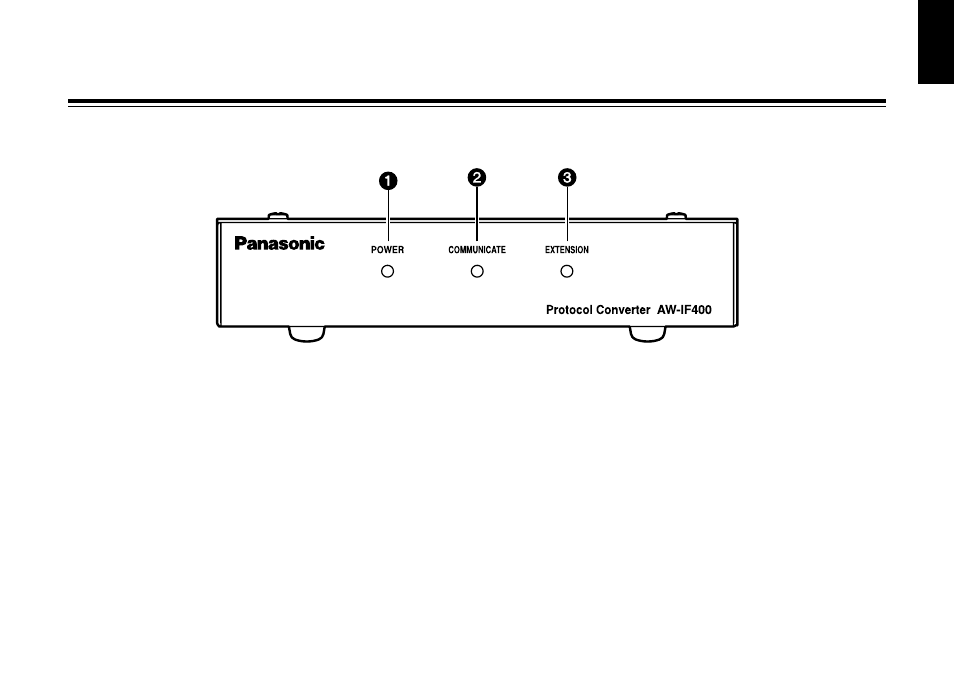

Front panel
