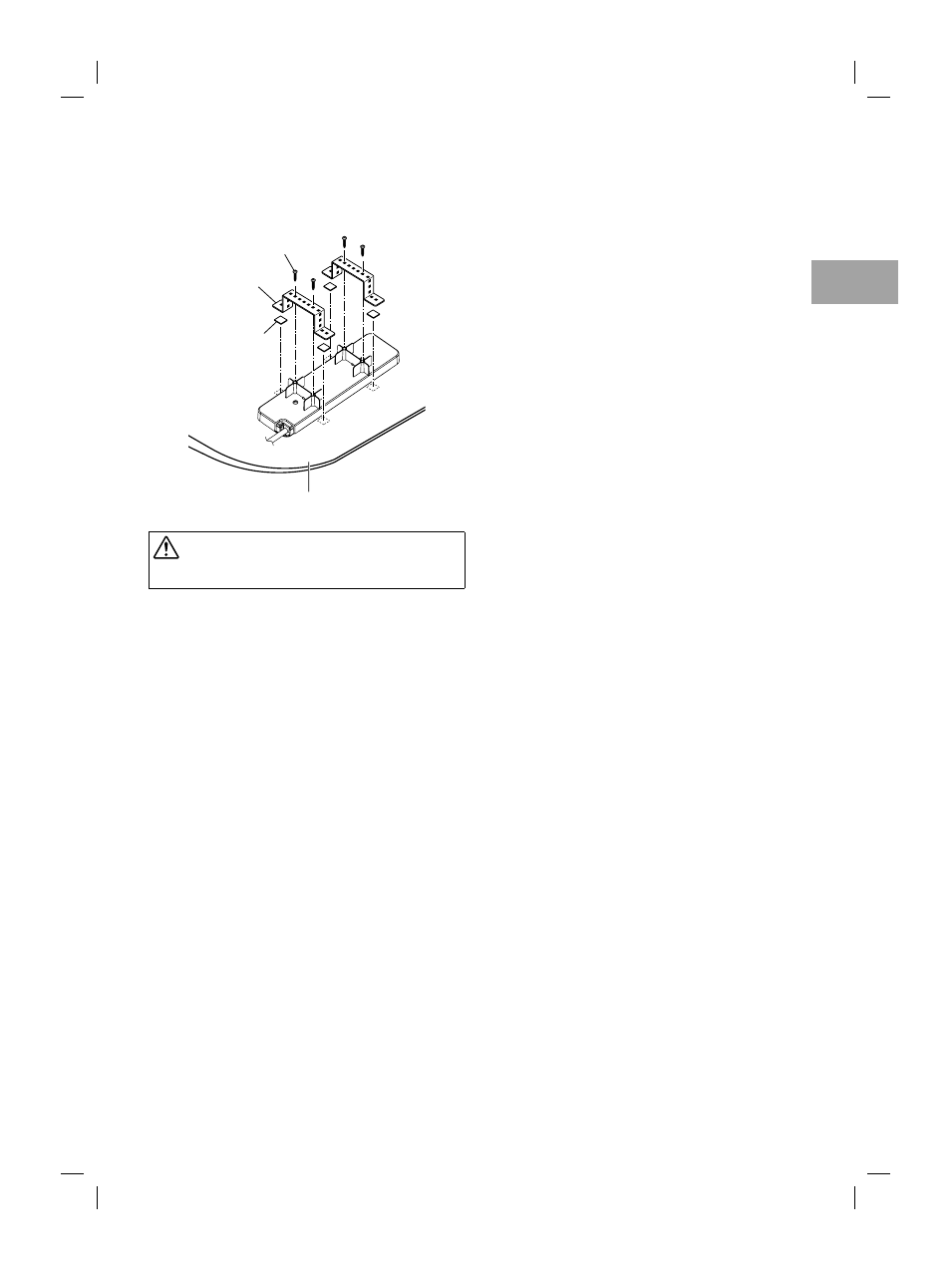

Affix the Commander unit holder B tightly using the 4
Adhesive sheets (d) F and 4 self-tapping screws (M4 ×
14 mm) E.
Self-tapping screw
(M4 × 14 mm) (×4)
Bracket (×2)
Adhesive sheet
(d) (×4)
Console or Dashboard
underside
CAUTION
Make sure the Commander unit is tightly affixed. If any screws are loose, the
Commander unit can rattle or fall while driving.
