Lights – Acura 2009 RL User Manual
Page 477

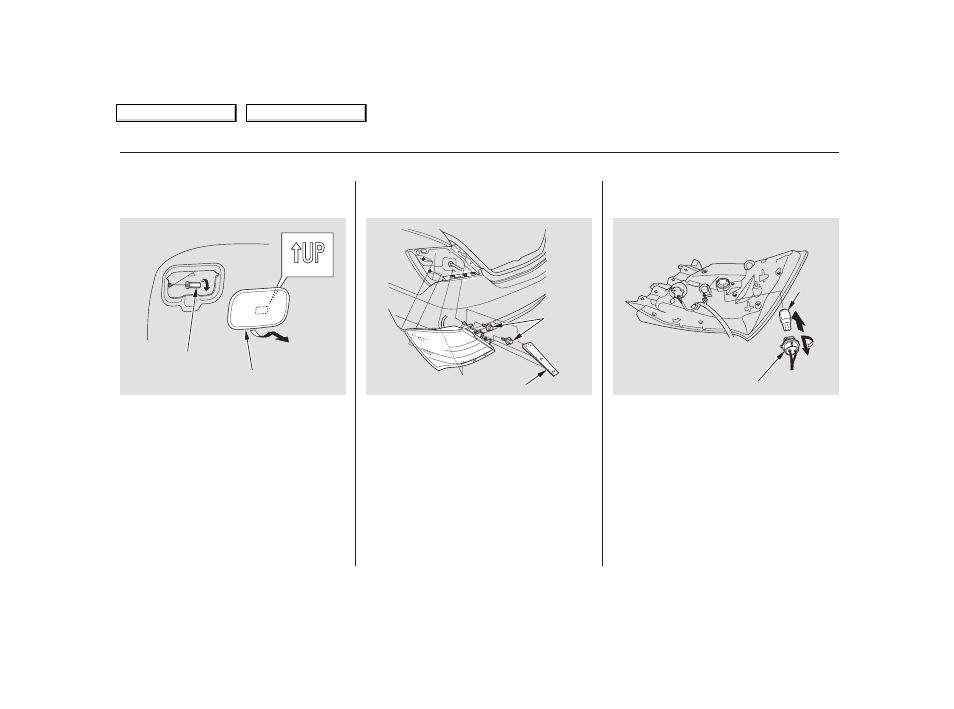

Open the trunk lid, and remove
the left or right maintenance lid.
Remove the mounting nut with an
8 mm wrench.
Carefully pry in the top or bottom
edge of the trim with a small flat-
tipped screwdriver, and pull the
trim straight back.
Remove the two mounting bolts
with an 8 mm wrench.
Pull the taillight assembly straight
back out of the body.
Remove the socket by turning it
one-quarter turn counterclockwise.
Remove the burned out bulb by
pulling it straight out of its socket.
2.
1.
3.
4.
5.
6.
7.
Lights
Replacing a Rear Turn Signal
Light Bulb
474
MOUNTING NUT
MAINTENANCE LID
TAIL LIGHT TRIM
BOLTS
BULB
SOCKET
2009 RL
