PowerBrick ™ Quick Reference Manual

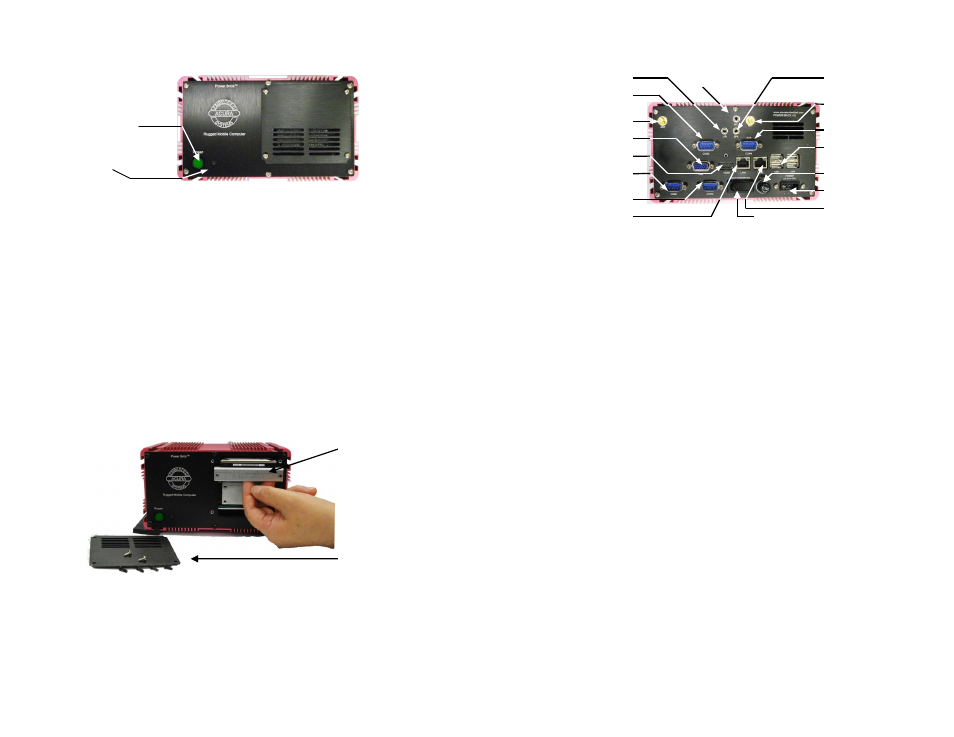

Figure 2.2: Front side of PowerBrick
Connect all applicable cables such as:
 Keyboard
 Mouse
 Monitor
 Power supply cable
Optional device cables or units that you provide yourself could
include the following:
 USB cable
 Speaker and microphone cables
 RJ45 Ethernet TP cable
 RS232 Serial port cable
Figure 2.3: Changeable Hard Disk of PowerBrick
Remove six screws (Four black color,two metal color) and open Hard
Disk cover in the front side plate. Then pull out hard disk to change.
Page 3
Figure 2.4 : Back side of PowerBrick
After connecting all applicable cables it is safe to power-on the system.
(Warning: use only DC from the dedicated power supply)
2.3 Mounting in your vehicle or final location
This chapter provides you with the information of fixed system mounting.
Prior to that, please prepare the installation tools and appropriate items. If
you are not clear about the items, contact your dealer for information.
2.4 Mounting tools
For mounting your computer in a vehicle you need the following tools:
 Ranch
 Screw driver
 Drill
 Bolts and nuts appropriate to mount the plate in your vehicle
2.5 Computer installation
Mounting screws or bolts and nuts for mounting to your specific vehicle are
not provided, as there are many variations of thickness that the unit might
be mounted to. If mounting in a vehicle that is subject to vibration and
shock, It Is important to use the mounting plate with attached shock
absorbers where vibration could occur. The mounting plate should be
fastened tightly with bolts and nuts. Please ensure that if you mount any
bolts/nuts under the computer, that they do not touch the computer itself.
Otherwise, the shock absorbers will not protect the computer properly.
Page 4
HD LED
Power Button
Power LED
Removable hard disk
Hard disk cover
and screws
L-IN Audio Jacks
RS232 COM Port3
GPS/WiFi/CDMA
Antenna
VGA Port
HDMI Port
Speaker Jacks
GPS/WiFi/CDMA
Antenna
RS232 COM Port3/DVR
4 x USB 2.0 Port
Fuse Protect 10A
Ethernet Port2
RS232 COM Port2
RS232 COM Port1
Ethernet Port1
Main Power
Swtich
MIC Audio Jacks
DC (12v) Input
