PowerBrick 5.0-i3 Quick Quide
Acura Embedded Systems Inc. Updated by July 15/13
Watchdog
Watchdog Timer Support, Offer 1 – 255 Step(Optional)
Graphics Intel® HD Graphics 4000
DirectX Video Acceleration (DXVA) for Accelerating Video
Processing Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 3.0
Resolution Up to 1920 x 1200
Storage Type 2 x 2.5” Drive Bay for SATA Type HDD / SSD, Support
RAID 0, 1
I/O
Serial Port 3 x RS ‐232 (COM1,2 with RS-422/485, RS-485 Support Auto
Direction Control)
USB Port 4 x USB 2.0 Ports on Front I/O
LAN 2 x RJ45 Ports for GbE
Video Port 1 x DVI ‐I and 1 x VGA Output
DIO Port 4 in and 2 out with Relay 12V / 80mA
Audio 1 x Line ‐out (Default is 1 on Rear I/O)
SIM Card Socket 2 x SIM Card socket supported onboard with eject
Environment
Operating Temp ‐40ºC ~ 70ºC (Default CPU 17Watt)
Storage Temp ‐40 ~ 80ºC
Relative Humidity 0% RH– 95% RH
Vibration (random) 2.5g@5~500 Hz with SSD
Vibration
Operating MIL ‐STD‐810F, Method 514.5, Category 20,
Ground Vehicle ‐Highway
Truck Storage MIL ‐STD‐810F, Method 514.5, Category 24, Integrity Test
Shock Operating MIL ‐STD‐810F, Method 516.5, Procedure I,
Crash Hazard MIL ‐STD‐810F, Method 516.5, Procedure V,Ground
equipment=100
Power
Power Input 9V
‐32V DC Power input
Power Protection Automatics Recovery Short Circuit
Protection
Power Management Vehicle Power Ignition for Variety
Vehicle
Power Off Control Power off Delay Time Setting by Software,
Default is 5 Mins
UPS (Battery Internal Battery Kit) for 10 Mins Operating
(Optional)
Qualification
Certifications CE, FCC Class A, eMark

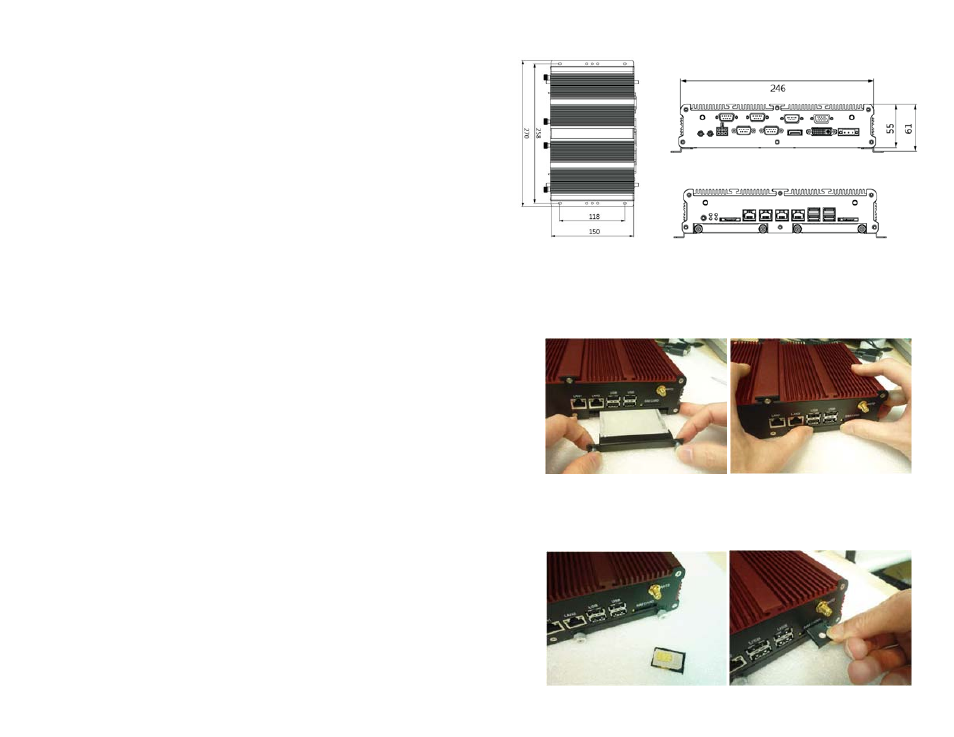

Mechanical
Construction Aluminum alloy
Mounting Supports wall ‐mount
Weight 1.780 kg (bare ‐bone)
Dimensions 250 x 150 x 55 mm
3. SYSTEM INSTALLATION
• Installing Removable Hard Drive
Push the HDD Holder into the socket as shown in the picture.
• Installing SIM Card
Put your SIM Card into the holder and Take the SIM card holder and Insert it
into the socket as shown in the picture.
