AiP-N series 16CH/9CH/4CH Manual
66

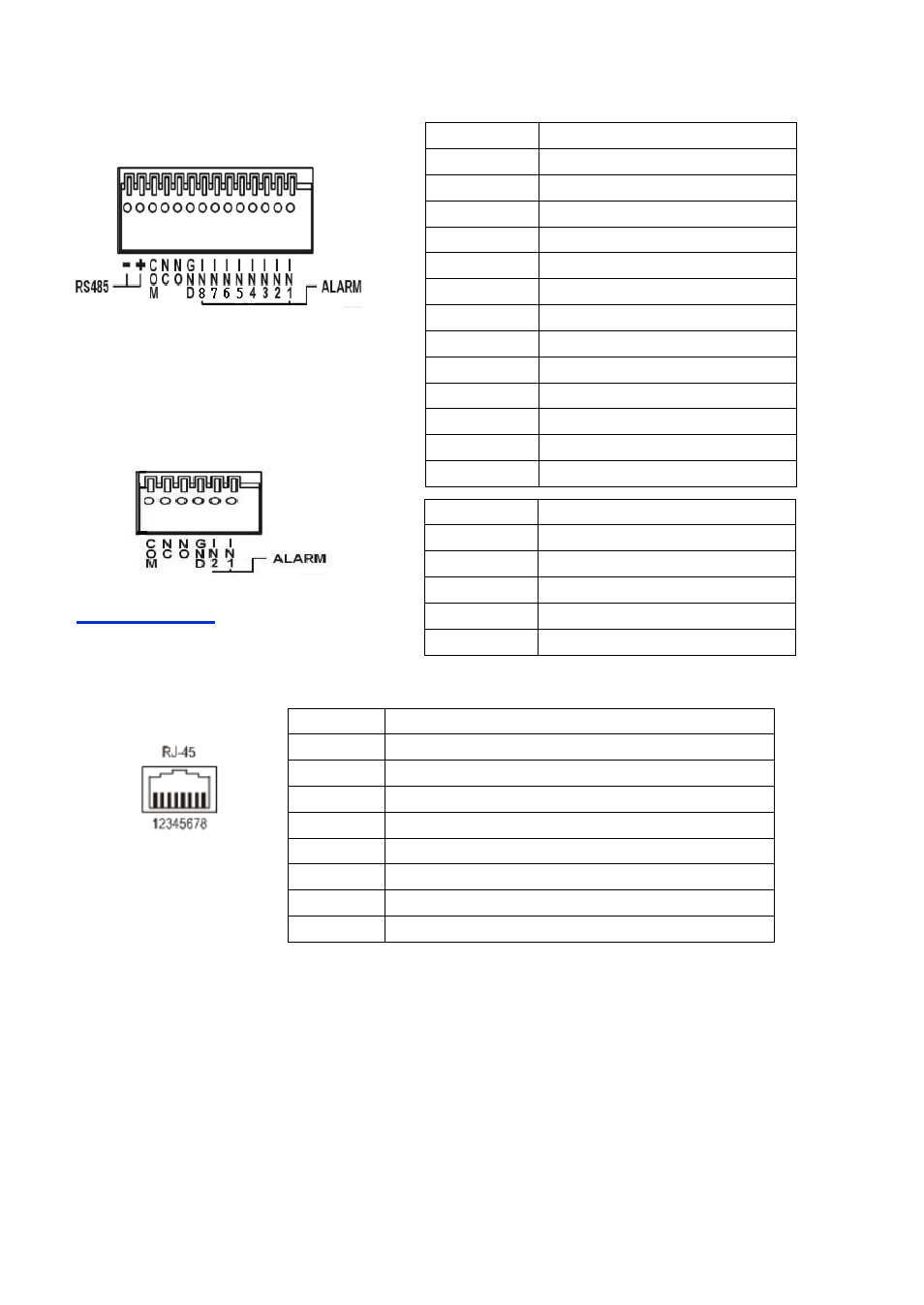

3. Alarm I/Os and RS-485 for PTZ
16CH
9CH/4CH
Appendix B
RS-485 Input and Output Pin
Assignment
Pin 1 Alarm input 1
Pin 2 Alarm input 2
Pin 3 Alarm input 3
Pin 4 Alarm input 4
Pin 5 Alarm input 5
Pin 6 Alarm input 6
Pin 7 Alarm input 7
Pin 8 Alarm input 8
Pin 9 GND
Pin 10 ALARM NO (normal open)
Pin 11 ALARM NC (normal close)
Pin 12 COM
Pin 13 RS485+
Pin 14 RS485-
Pin 1 Alarm input 1
Pin 2 Alarm input 2
Pin 3 GND
Pin 4 ALARM NO (normal open)
Pin 5 ALARM NC (normal close)
Pin 6 COM
Terminal Name
1 --
2 --
3 --
4 --
5 RS-485 – Out Link Keyboard
6 RS-485 + Out Link Keyboard
7 GND
8 12V + DC input
