4. Keyboard lock – press for 2 seconds to
enter locking mode, press again to unlock
the keyboard
5. Cam – select a particular camera
6. DVR – select a DVR
7. Mon – select a monitor
8. Matrix – press shift + matrix to switch to
matrix control mode
9. Present
– recall and store preset options
10. Function keys
11. Numerical keys – 0-9 for entering
monitor, DVR, camera number
12. CLR – clear to setting data
13. ENT – enter or confirm data programming
14. Wiper/lens
15. Spray
16. Light/C.ESC
17. CTRL 1 / C.SET
18. CTRL 2 / 180
19. Search
20. Shift
21. Auto pan
22. SEQ
23. Zoom in / zoom out
24. Focus far / focus near
25. Auto focus
26. Iris open / iris close
27. Auto iris
28. DVR control keys
1.5 Touch screen

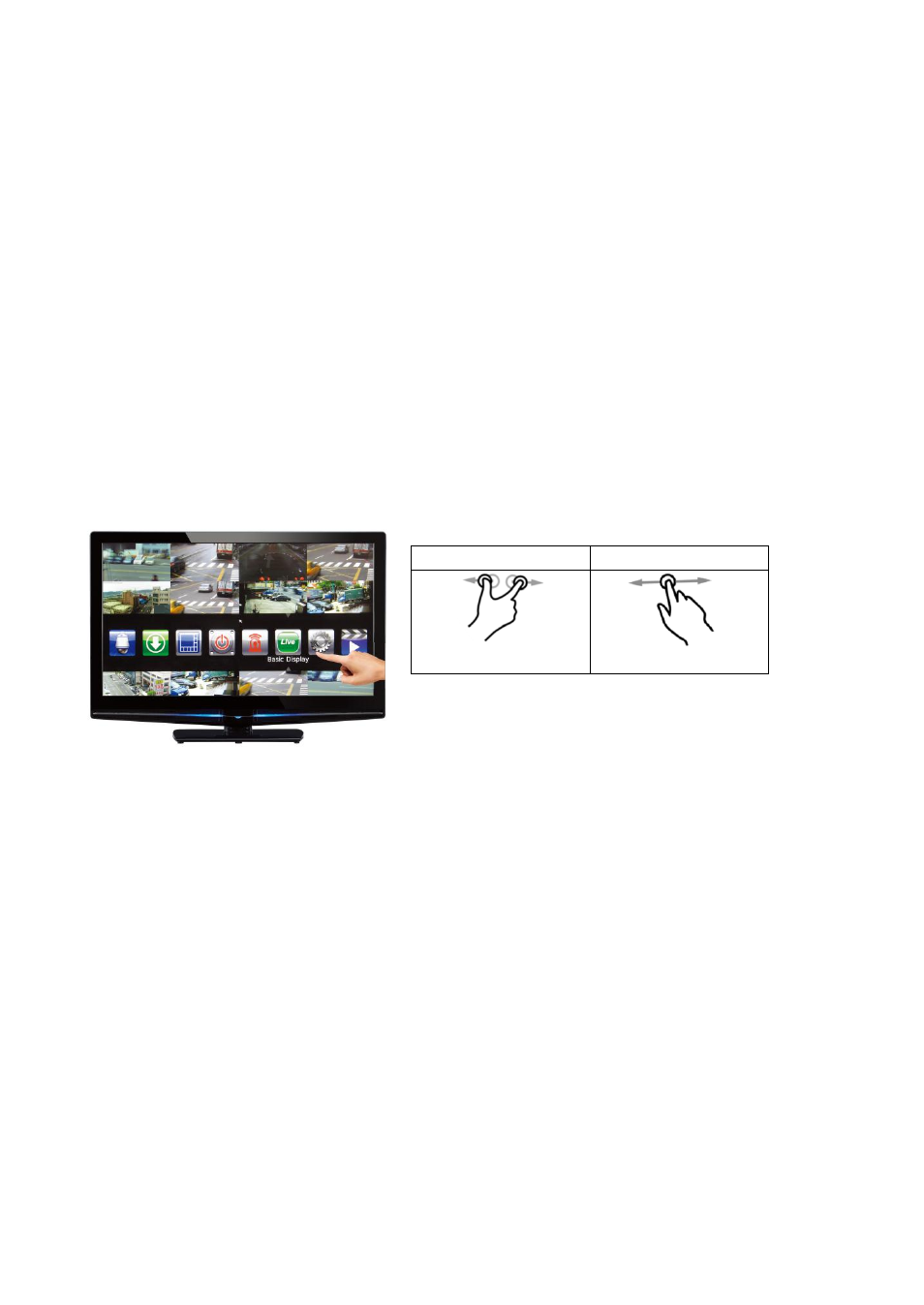

Pinch and zoom:
Pinch the area on the touch screen where you want to zoom. To zoom in move your fingers outwards, and
to zoom out move your fingers inwards
Scroll screen: Swipe the screen left and right to navigate through the menus
Single tap: Tap icons to select
Double tap: Double tap in camera view to return to previous menu
1.6 Mouse operations
The NVR has a USB mouse interface
General mouse operations can be used to navigate the device with AiD
Pinch Zoom Out Swipe
