Activeforever Ironman IFT2000 Infrared Therapy Inversion Table User Manual
Page 13
13

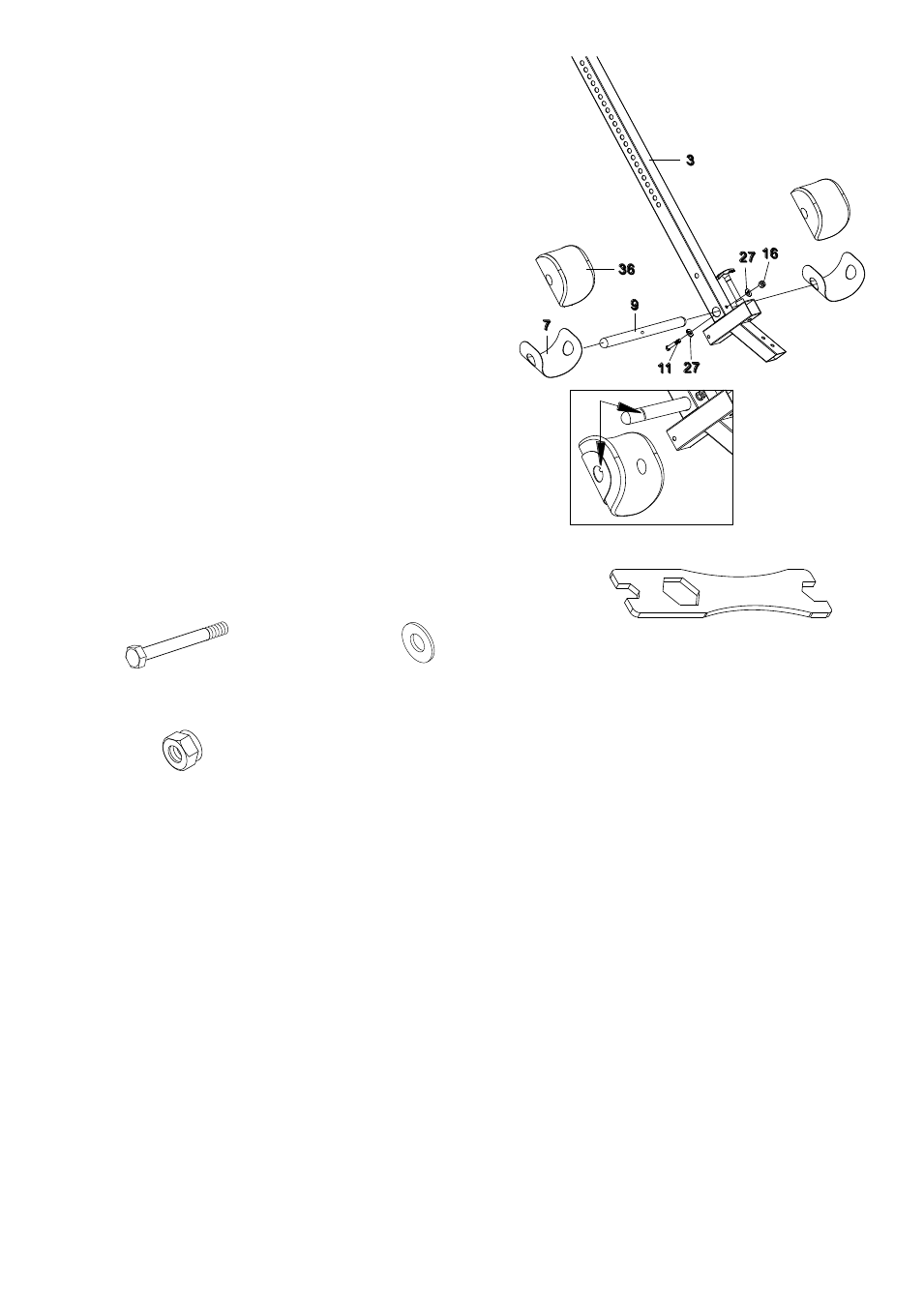

Step 6
Slide the Rod (9) through the large round hole on the
side of Adjustable Boom (3), and secure the Rod (9) on
the Adjustable Boom (3) with one M6x47 Hex Head
Bolt (11), one M6 Lock Nut (16), and two
Ø16xØ6.5x1.0 Washers (27).
Slide one Steel Heel Holder Bracket (7) and one
Rubber Rear Heel Holder (36) onto one end of the Rod
(9) until the lock tooth is wedged into the slot in the
Rod (9), as shown in detailed drawing. Use the same
procedure to attach the other Steel Heel Holder
Bracket (7) and Rubber Rear Heel Holder (26) onto the
other end of the Rod (9).
NOTE: Make sure the lock teeth are wedged into the
slots in the Rod (9) to lock the Steel Heel Holder
Brackets (7) and Rubber Rear Heel Holders (36) in
place before use.
Hardware:
Tool:
2 Wrenches M12x14
1 Hex Head Bolt (M6x47)
2 Washers (Ø16xØ6.5x1.0)
1 Lock Nut (M6)
