Activeforever Ironman IFT2000 Infrared Therapy Inversion Table User Manual

Page 11

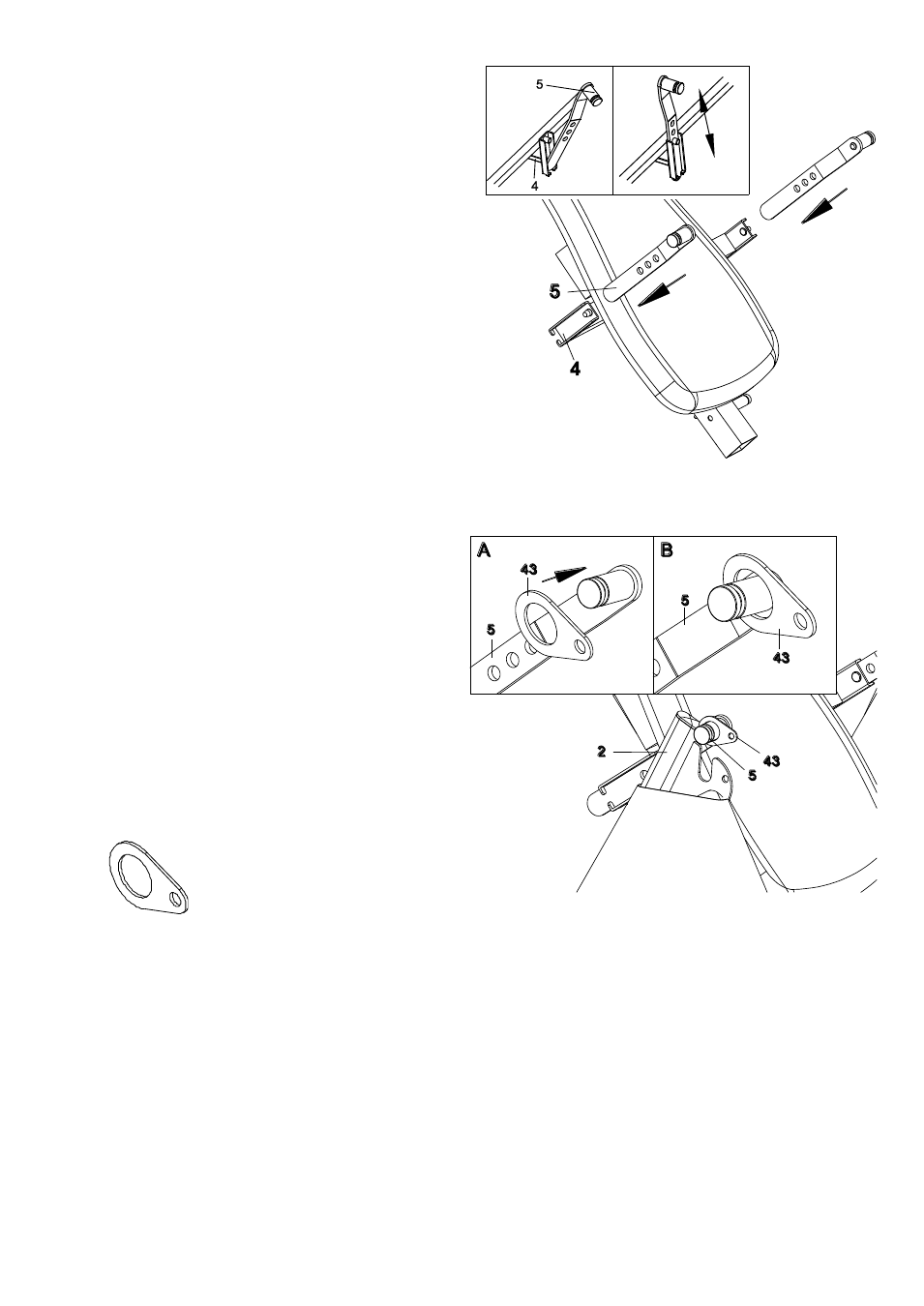

Step 3

Slide the bottom of the Pivot Arms (5) into the

brackets, located at each side of the Bed Frame (4),

align to the desired hole on the arm with the peg on

the bracket. Insert the peg into the hole to lock

the pivot arm in place. It is recommended that

you use the bottom hole on the pivot arm until you

become more familiar with the equipment.

․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․

Step 4

Install the Pivot Arm Rings (43) onto the Pivot

Arms (5). Mount the Bed Frame (4) to the Rear

U-Frame (2) by inserting the ends of the Pivot

Arms (5) into the channels on the plates. The

slotted portion of the rollers on the end of the

Pivot Arms (5) should be inserted into the

channels on the plates.

Hardware:

2 Pivot Arm Rings
