ACR ELECTRONICS, INC / ARTEX PRODUCTS
ABBREVIATED COMPONENT MAINTENANCE MANUAL
-B (453-6501)
25-69-11
Page 58 of 58
JUL 28/11

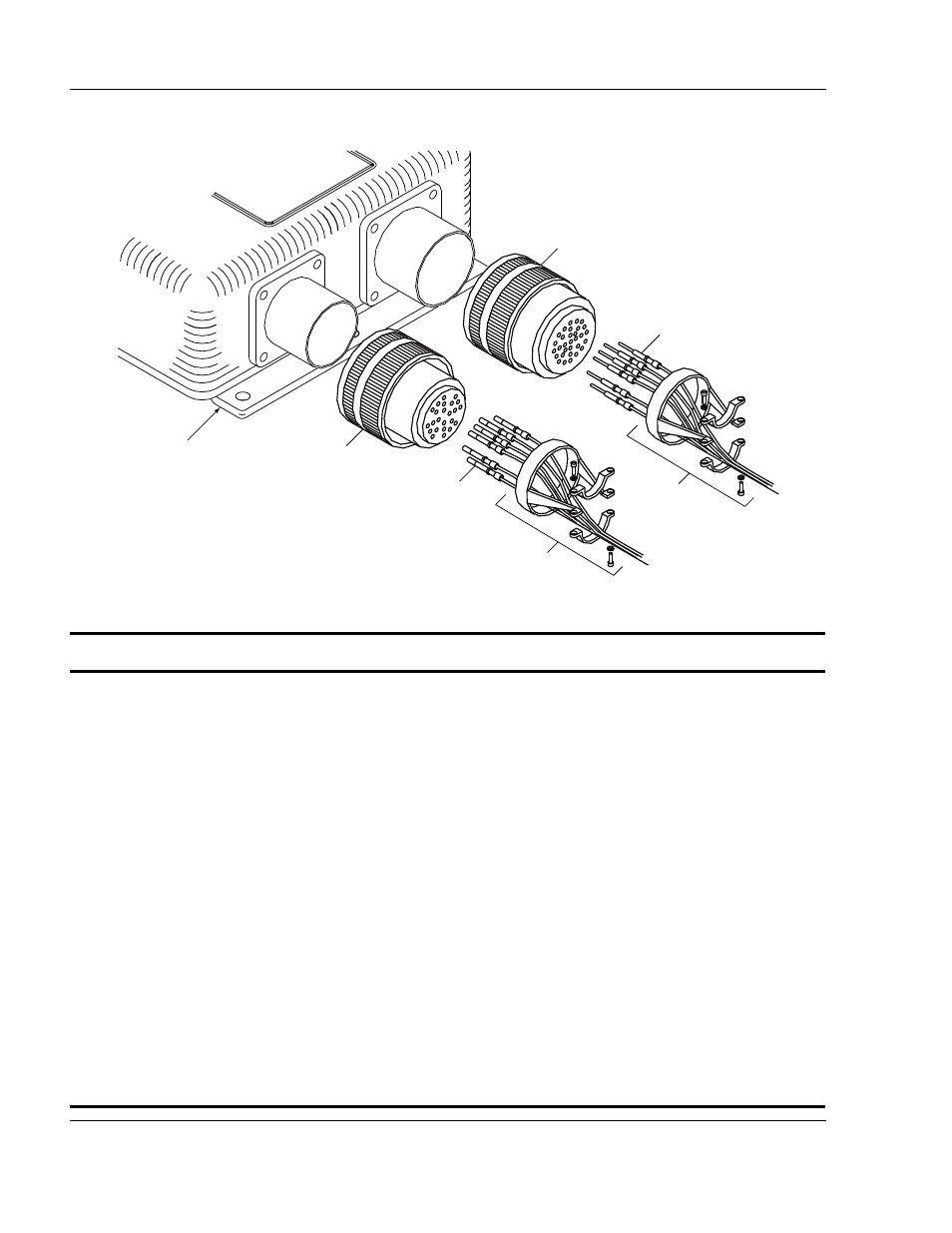

Figure 13. Electrical Components
FIG # ITEM PART # 1234 NOMENCLATURE UPA
13 01 150-6503 Connector, #16 Circular (24-Position) 1
***
02 151-2100 . Contact, Socket #20 26
03 183-6503 Strain Relief, #16 1
***
04 150-6502 Connector, #18 Circular (31-Position) 1
***
05 151-2101 . Contact Pin, #20 33
06 183-6502 Strain Relief, #18 1
***
– 151-2102 . Plug, Sealing #20 42
***
– 150-6504 Protective Cap, 31-Position Connector 1
***
ELT/NAV
INTERFACE -B
(REF.)
01
02
03
04
05
06
