ACR&Artex ELT to Nav Interface Boeing - Manual (Page 57)

25-69-11
Page 57 of 58
JUL 28/11
ACR ELECTRONICS, INC / ARTEX PRODUCTS
ABBREVIATED COMPONENT MAINTENANCE MANUAL
-B (453-6501)
TASK 25-69-11-990-804
4. Detailed Parts List

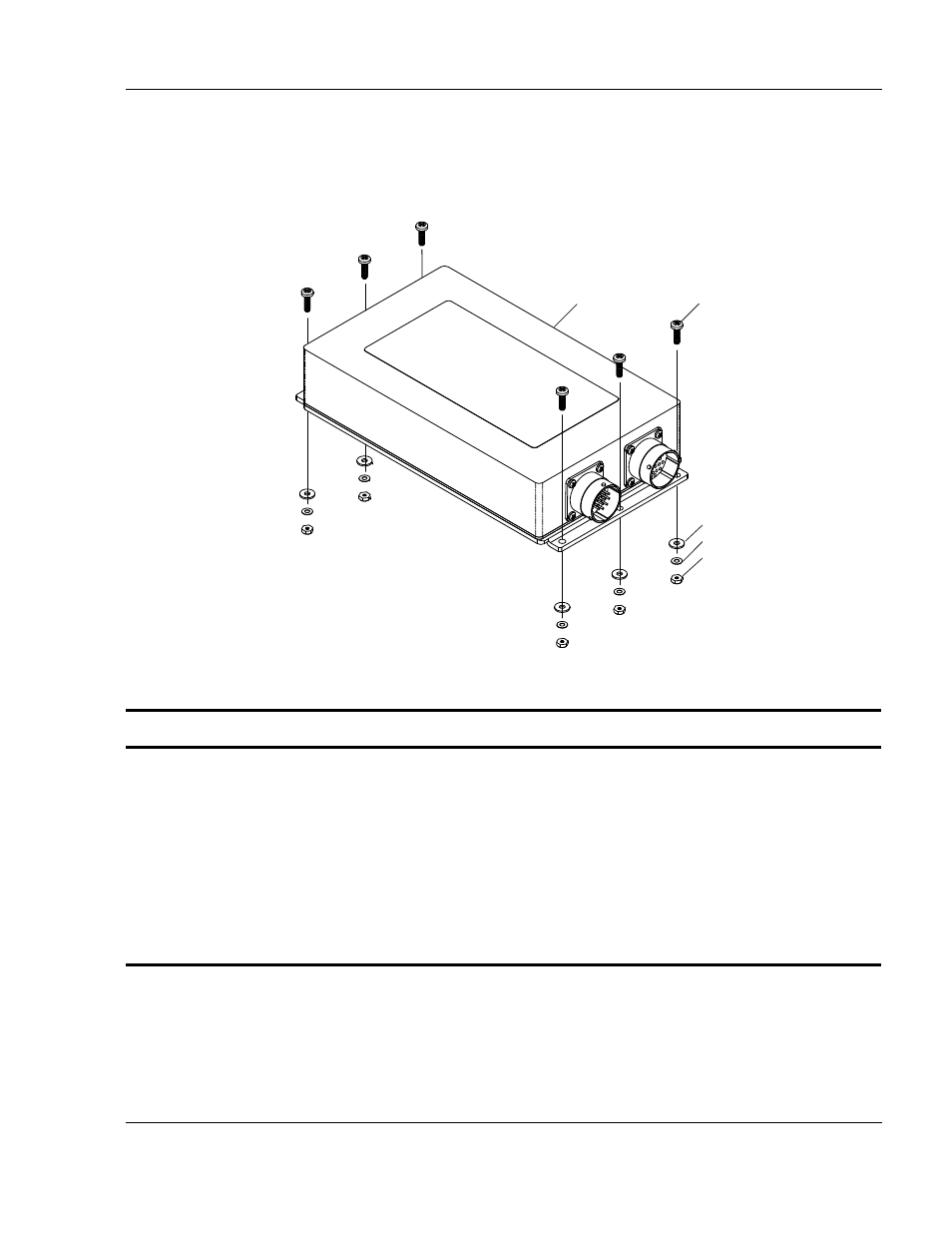

Figure 12. ELT/NAV Interface -B Installation
FIG # ITEM PART # 1234 NOMENCLATURE UPA
12 01 453-6501 Main Assembly, ELT/NAV Interface -B 1
ATTACHING PARTS
02 201-0810 Screw, PHP 8-32 x 5/8” SS 6
03 246-0008 Washer, Flat 1/2” SS #8 6
04 247-0800 Washer, Lock Internal Tooth SS #8 6
05 241-0832 Nut, 8-32 x 1/4” Hex SS 6
***
01 02
03
04
05
