ACR&Artex Float-Free 406 Memory Capsule User Manual
Page 14

Y1-03-0199 Rev. E
11

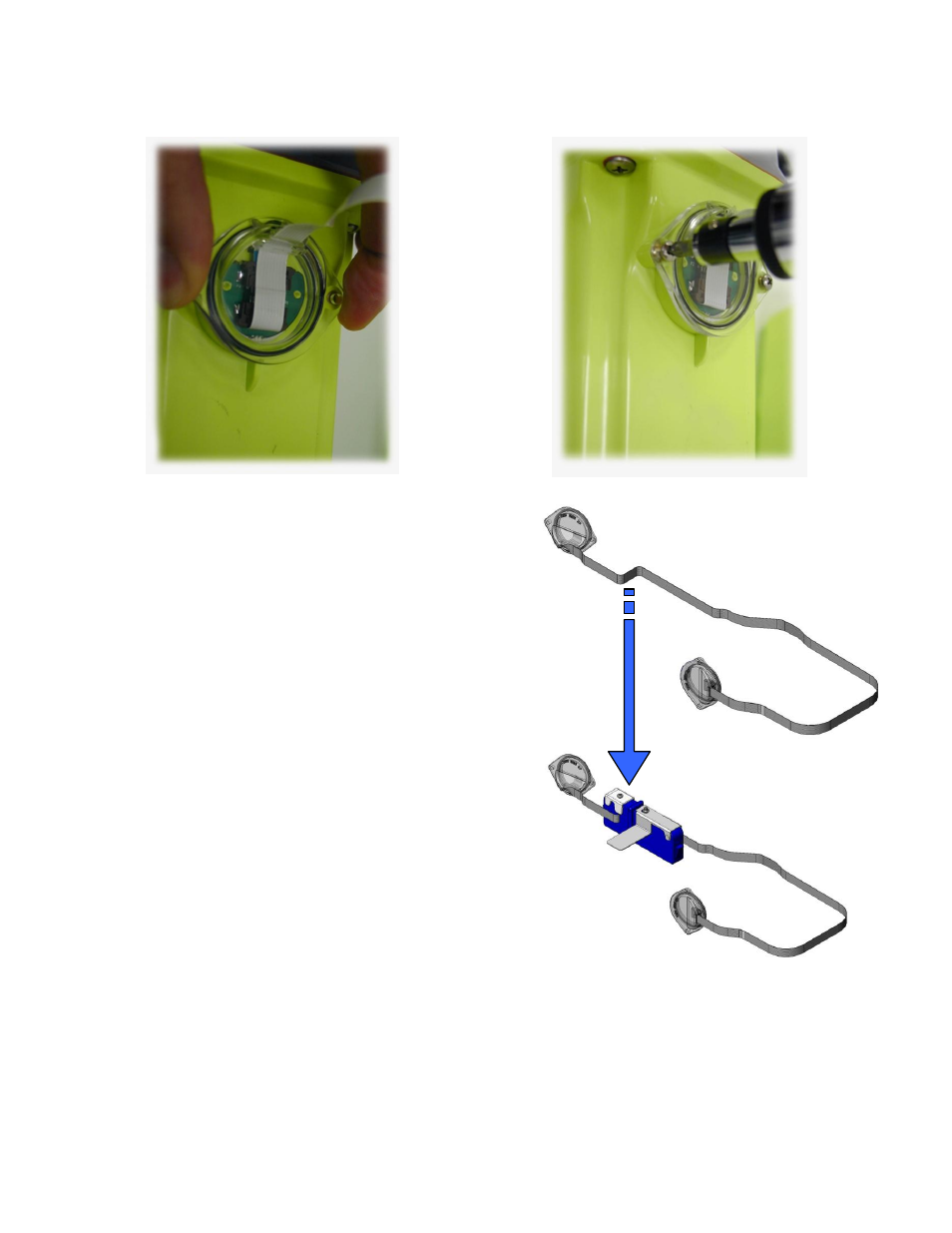

Align the side window cap holes with the memory capsule or bracket and using a phillips head screwdriver,
fasten the window cap in place with the provided screws.
4.2.5
Data Transfer Cable Alignment
The data transfer cable connects the memory capsule to the
bracket which in turn connects to the PoE and S-VDR. The
flex data cable comes with two flex connectors on either end
accompanied by protective window caps.
To remove the memory capsule from the bracket you must
unscrew the window cap and unplug the flex connector from
the memory capsule.
To remove the flex cable from the cutter mechanism
you
must remove the top screw from the cutter slot door and
open the door. Then simply slide the cable out of the slot.
Window Cap
Installation
Figure 8
Data Transfer Cable Alignment
Figure 9
