ACR&Artex B406-4 - Manual (Page 86)

ACR ELECTRONICS, INC / ARTEX PRODUCTS
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
B406-4 (453-5004)
25-62-03
Page 86 of 87
JUN 20/13

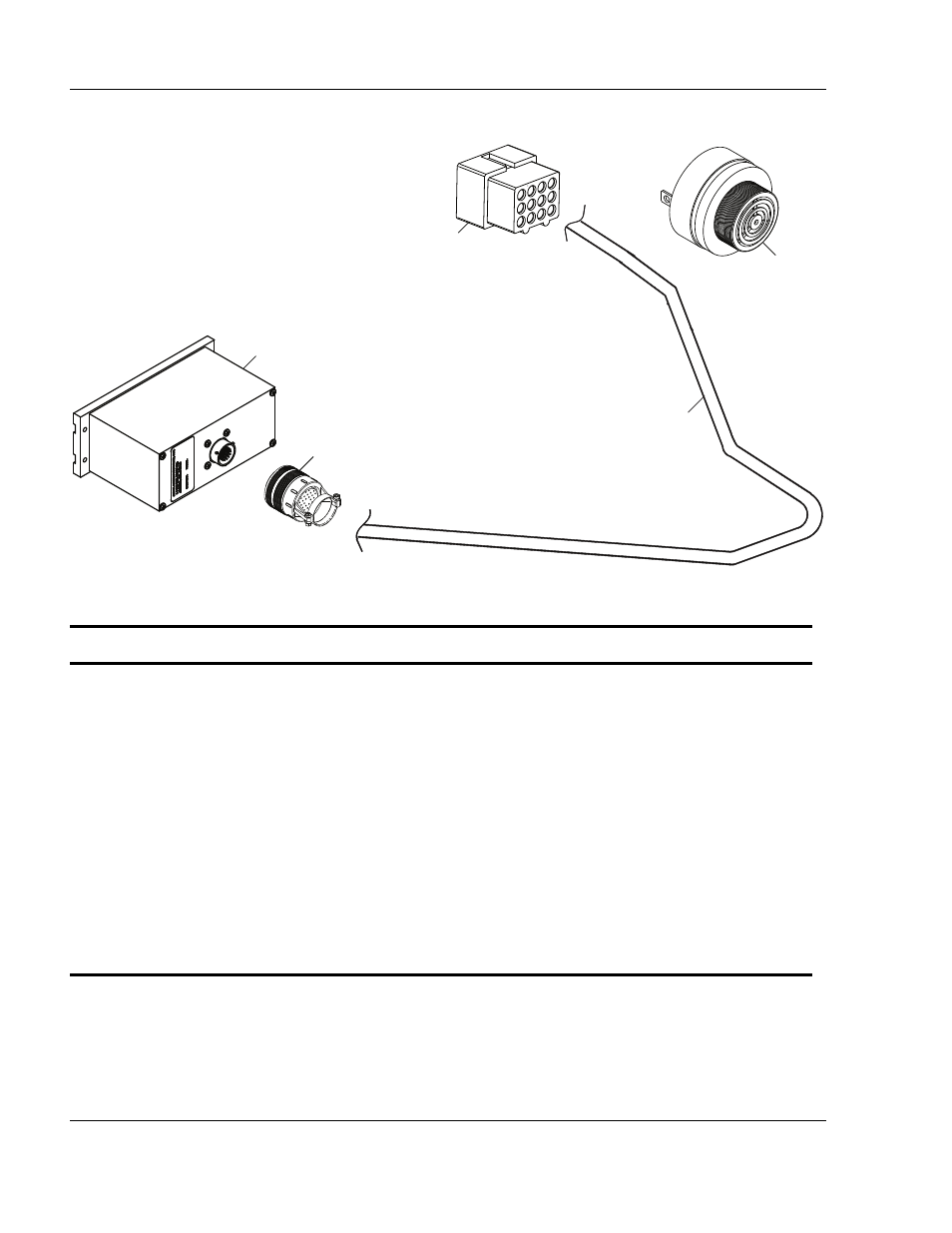

Figure 25. Electrical Components
FIG # ITEM PART # 1234 NOMENCLATURE UPA
25 01 453-0161 Control Panel G737 1
***
– 591-0428 . Label, ELT Cautionary Use Advisory (Optional) 1
***
02 151-5012 Receptacle, 12-Pin 1
***
– 151-6627 . Terminal, Crimp Male 0.062 Dia. 12
***
03 130-4005 Horn Mod ELT Buzzer 1
***
WIRING HARNESS
(Ref. Only)
02
03
01
MS24266R16B2457
(Ref. Only)
