ACR ELECTRONICS, INC / ARTEX PRODUCTS
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
B406-4 (453-5004)
25-62-03
Page 84 of 87
JUN 20/13
TASK 25-62-03-990-804
4. Detailed Parts List

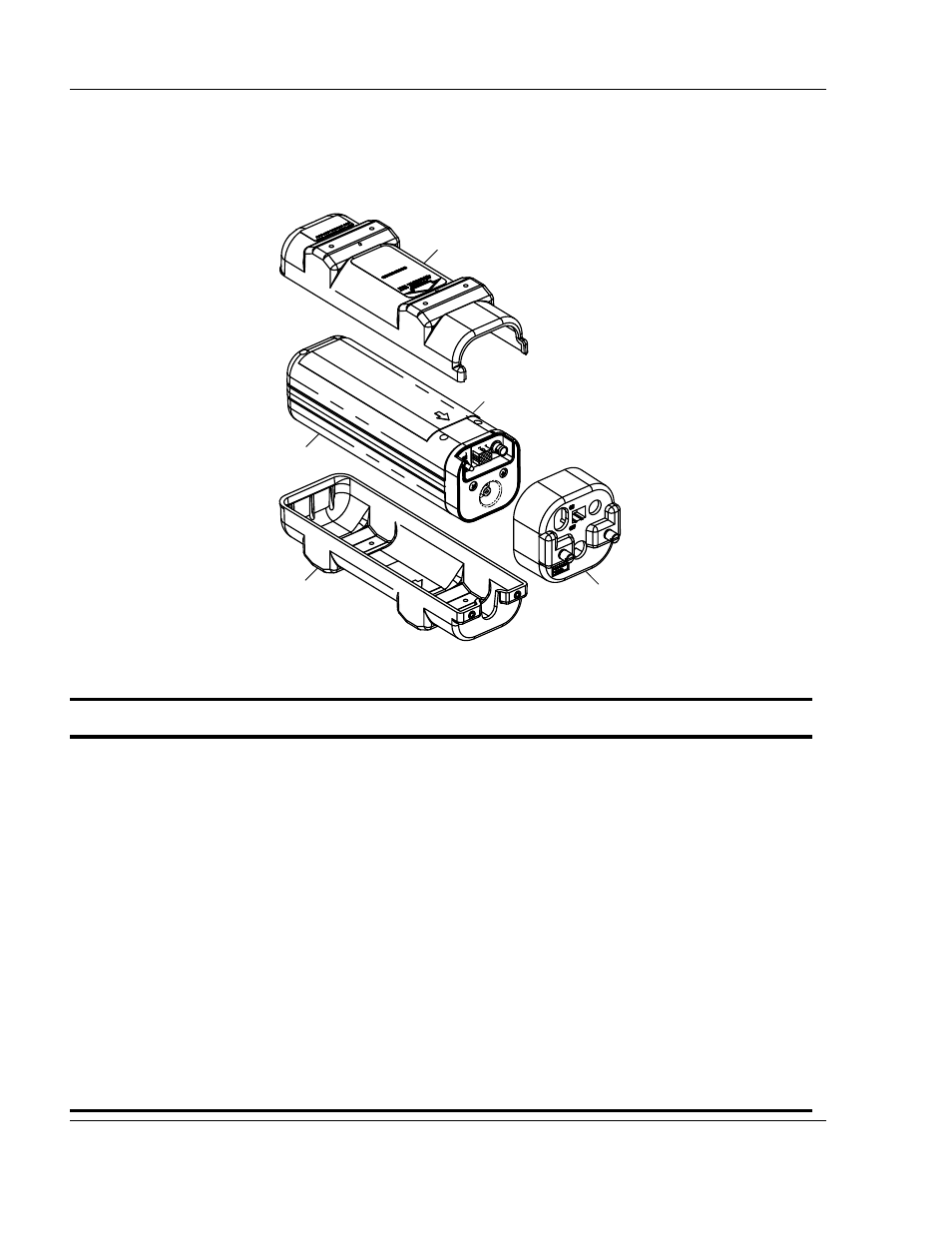

Figure 24. B406-4 ELT Main Assembly and Installation
FIG # ITEM PART # 1234 NOMENCLATURE UPA
24 01 452-3052 Protective Top Cover Assembly 1
02 452-5052 Mounting Frame Cap Assembly 1
03 452-5050 Mounting Tray Assembly 1
ATTACHING PARTS
– 201-0810 Screw, PHP 8-32 x 5/8” SS 4
– 246-0008 Washer, Flat 1/2” SS #8 4
– 247-0800 Washer, Lock Internal Tooth SS #8 4
– 241-0832 Nut, 8-32 x 1/4” Hex SS 4
***
04 453-5004 B406-4 Main Assembly 1
***
– 591-0999 . Label, Hex Code 1
04
02
01
03
05
