KDM-7190/8/16 series User’s Manual
10
2
. Panel Controls and OSD Function

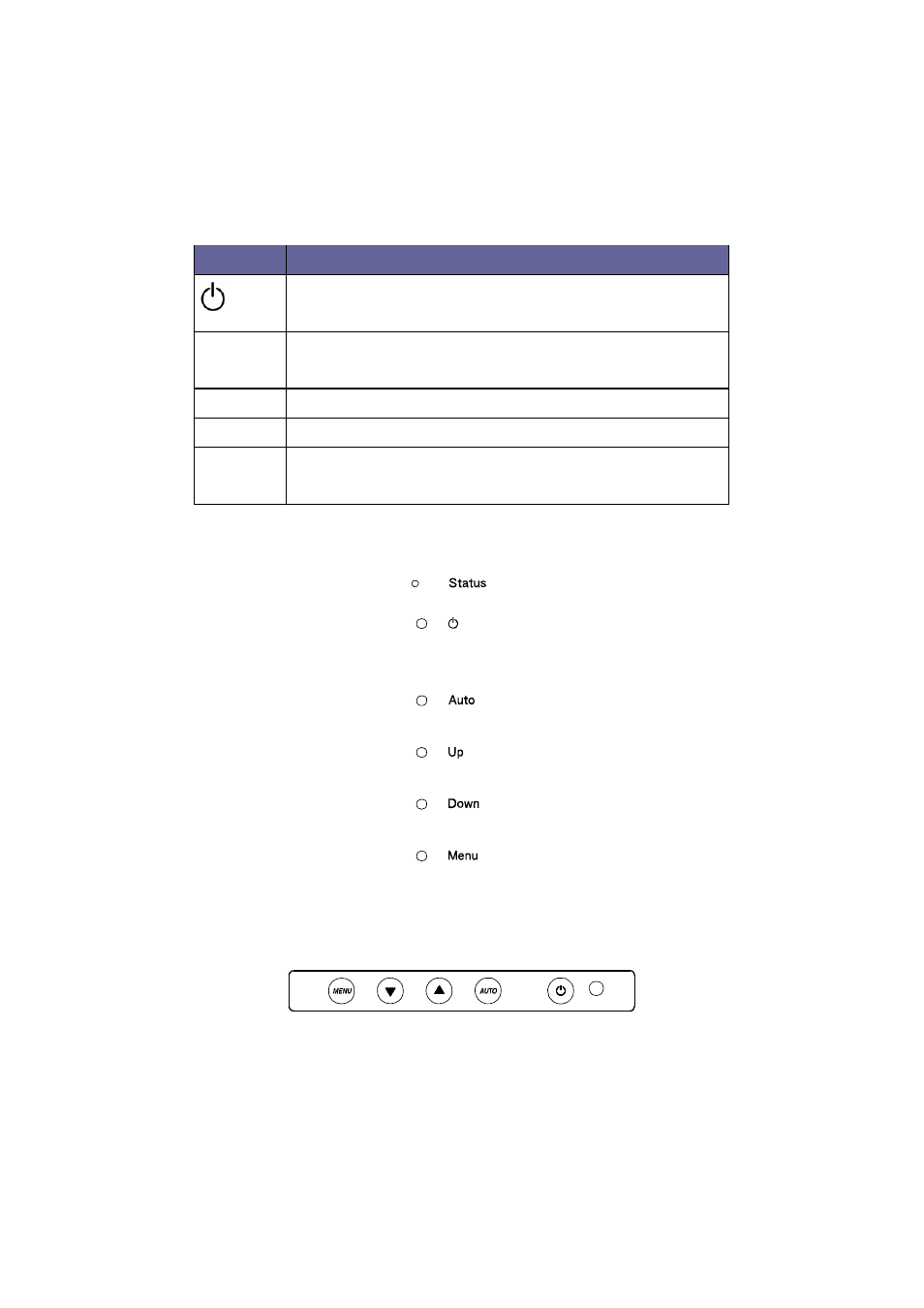

Controls Description
Soft power on/off button. Adjacent LED is lit when
on.
Auto
Auto-synchronize and scale down display to any
valid factory preset timings.
Up Press to scroll the function you want to adjust.
Down Press to scroll the function you want to adjust.
Menu
To access the main menu. This button also acts as
the “Enter” button.
Table 2-1. Panel Controls
Figure 2-1. IP-115T-CF / IP-115T-8-CF / IP-115T-16-CF / IP-117T-CF / IP-117T-8-CF /
IP-117T-16-CF OSD Control Bar
Figure 2-2. IP-119T-CF / IP-119T-8-CF / IP-119T-16-CF OSD Control Bar
2.1 Auto Tune
Press the “auto tune” button. The panel will adjust the display size
