PC 6410

10.2” Fanless Panel PC

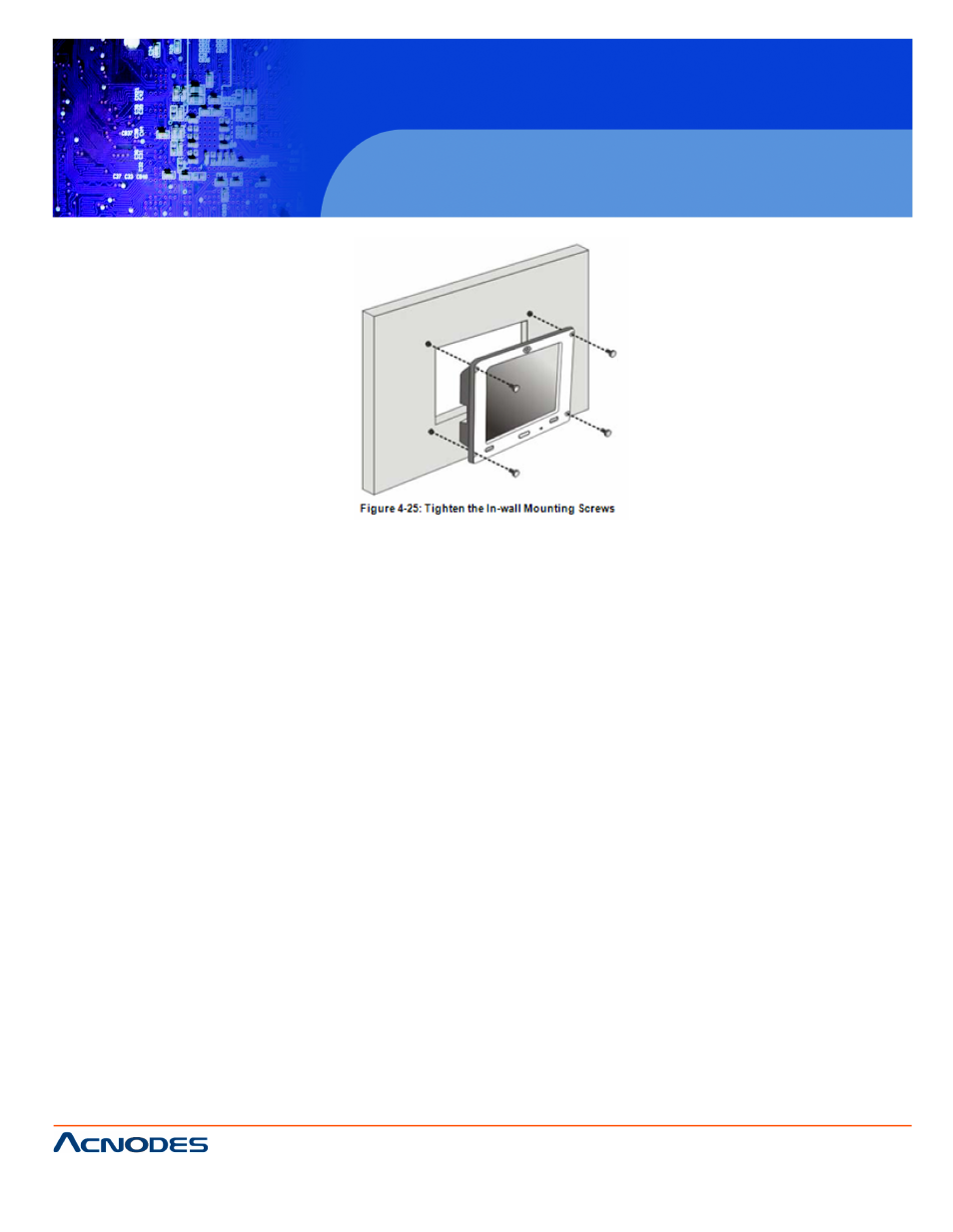

4.10.3 Arm Mounting

The PC Series-N270 is VESA (Video Electronics Standards Association) compliant and

can be mounted on an arm with a 75mm or 100mm interface pad. To mount the PC

Series-N270 on an arm, please follow the steps below.

Step 1: The arm is a separately purchased item. Please correctly mount the arm onto

the surface it uses as a base. To do this, refer to the installation documentation that

came with the mounting arm.

NOTE:

When purchasing the arm please ensure that it is VESA compliant and that the arm has

a 75 mm interface pad. If the mounting arm is not VESA compliant it cannot be used to

support the PC Series-N270 flat panel PC. The PC Series-N270 also support VESA

MIS-D 100.

Step 2: Once the mounting arm has been firmly attached to the surface, lift the flat

panel PC onto the interface pad of the mounting arm.

Step 3: Align the retention screw holes on the mounting arm interface with those in the

flat panel PC. The arm mount retention screw holes are shown in Figure 4-26.
