NCT6106D Super IO Configuration

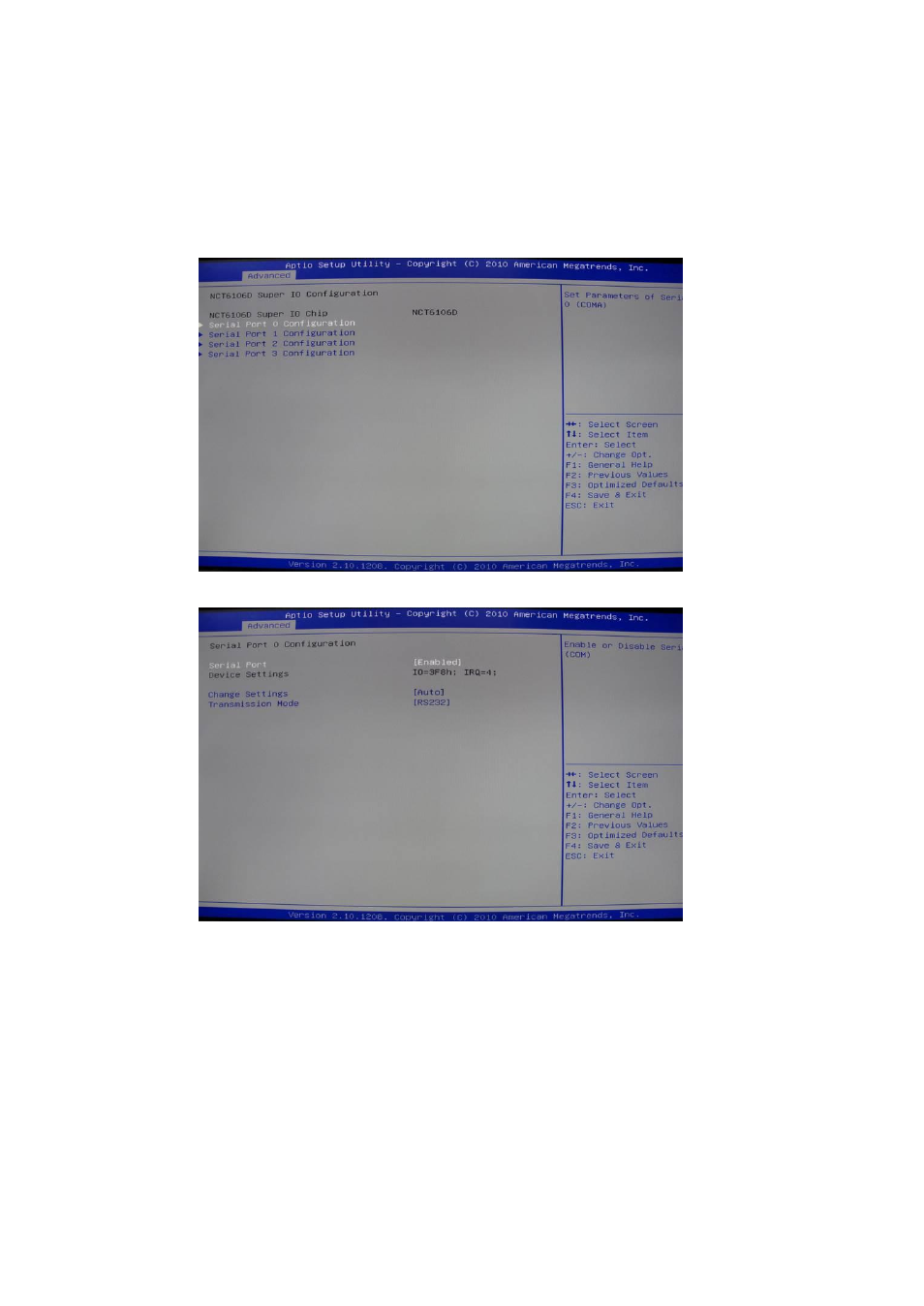

You can use this screen to select options for the Super IO Configuration, and change the
value of the selected option. A description of the selected item appears on the right side
of the screen. For items marked with

“”, please press for more options.



Serial Port 0 Configuration

Serial Port

Use this item to enable or disable serial port 0. The optimal setting for base I/O
address is 3F8h and for interrupt request line is IRQ4.

Change Settings

Here are the options for your selection; Auto, IO=3F8H; IRQ=4;, IO=3F8h;
IRQ=3,4,5,6,7,10,11,

12;

IO=2F8H;

IRQ=3,4,5,6,7,10,11,12;,

IO=3E8h;

IRQ=3,4,5,6,7,10,11,12;, IO=2E8h; IRQ=3,4,5,6,7,10,11,12;.

Transmission Mode

Use this item to configure serial port 0. Here are the options for your selection;
RS232, RS422, RS485.
