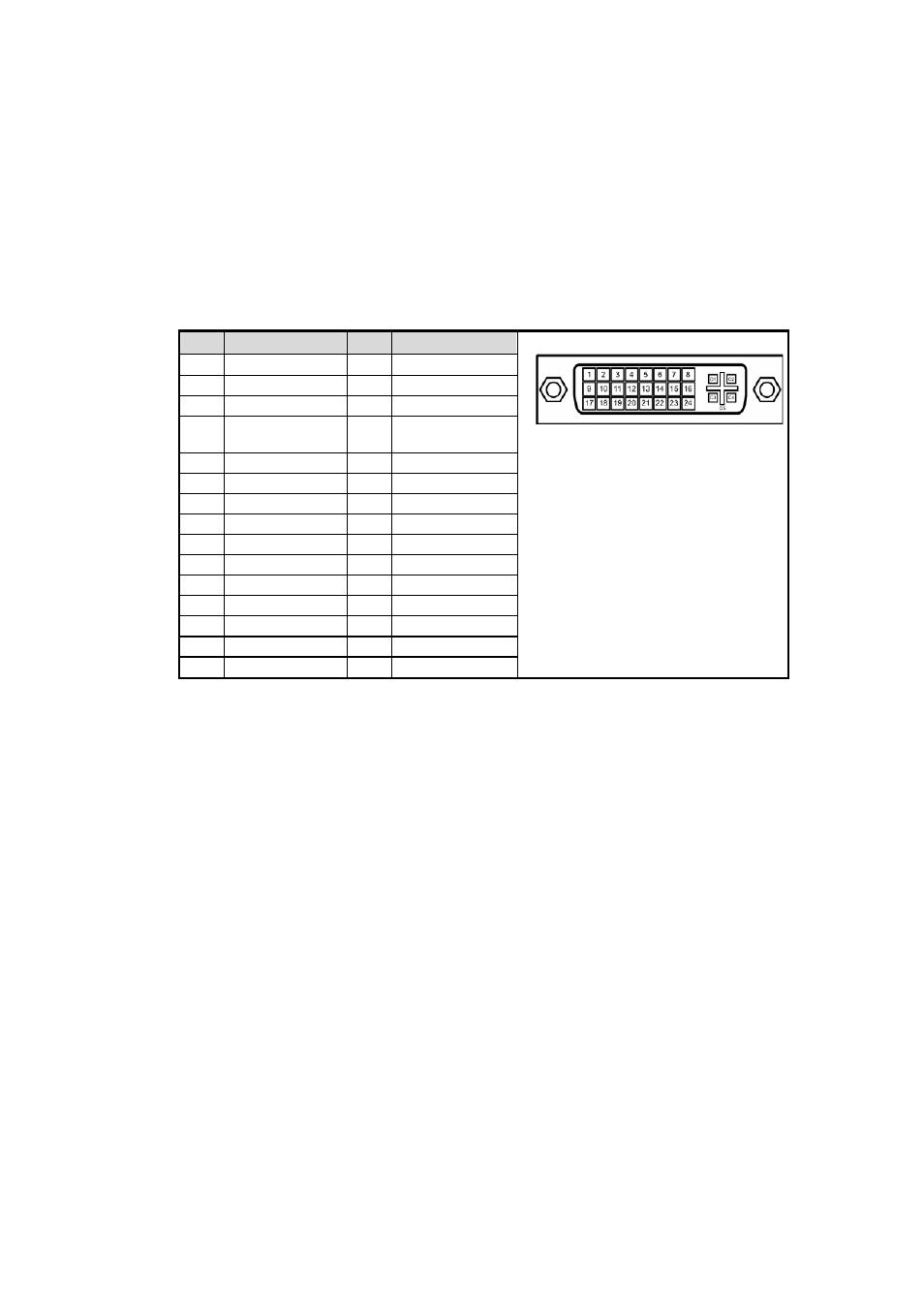

3.2.4 DVI-I Connector
The system comes with a high rise DVI-I (Digital Video Interface – Integrated) interface
providing transmission of fast and high quality video signal between source device (e.g.
graphic card) and display device (e.g. monitor). The DVI-I interface supports both digital
and analog.
Pin Signal Pin Signal
1 TX2- 2 TX2+
3 Ground 4 NC
5 NC 6 DVI_SPD_CLK
7
DVI_SPD
DATA 8 CRT-VSYNC
9 TX1- 10 TX1+
11 Ground 12 NC
13 NC 14 VGAVCC
15 Ground 16 FPDETECT
17 TX0- 18 TX0+
19 Ground 20 NC
21 NC 22 Ground
23 TXC+ 24 TXC-
C1 CRT-RED C2 CRT-GREEN
C3 CRT-BLUE C4 CRT-HSYNC
C5 VGAGND
