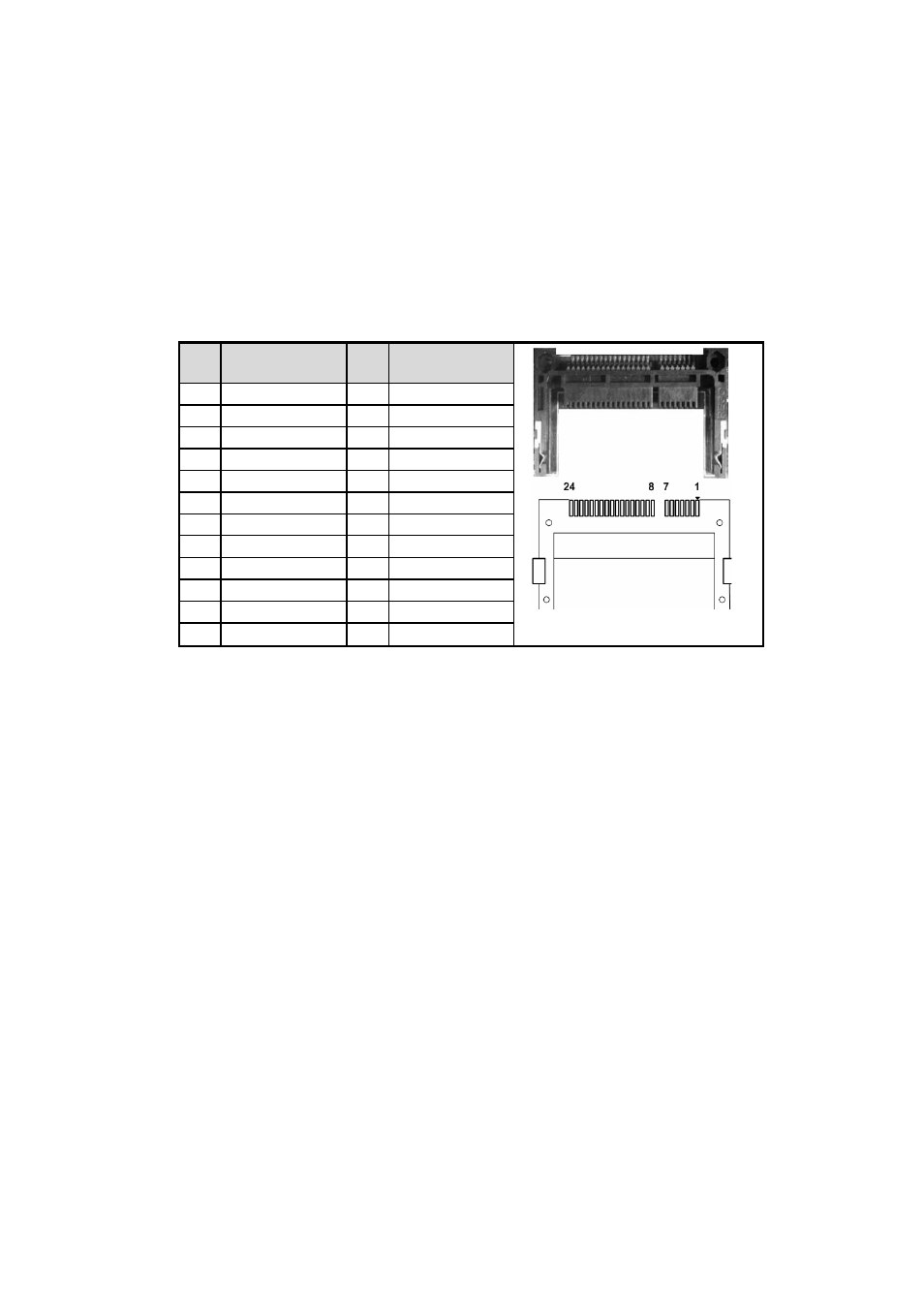

3.2.17 CFast ™ Socket
The system is equipped with a CFast ™ socket on the bottom side to support a
CFast ™ card which is based on the Serial ATA bus. The socket is specially
designed to avoid incorrect installation of the CFast ™ card. When installing or
removing the CFast ™ card, please make sure the system power is off. The CFast™
card by default identifies itself as C: or D: drive in your PC system.
Pi
n
Signal Pi
n
Signal
1 GND 13 N.C
2 SATA_TX+ 14 GND
3 SATA_TX- 15 N.C
4 GND 16 CFAST_LED#
5 SATA_RX- 17 N.C
6 SATA_RX+ 18 N.C
7 GND 19 N.C
8 N.C 20 +3.3V Level
9 GND 21 +3.3V Level
10 N.C 22 GND
11 N.C 23 GND
12 N.C 24 N.C
