PC 5153

15” Industrial wireless Panel PC

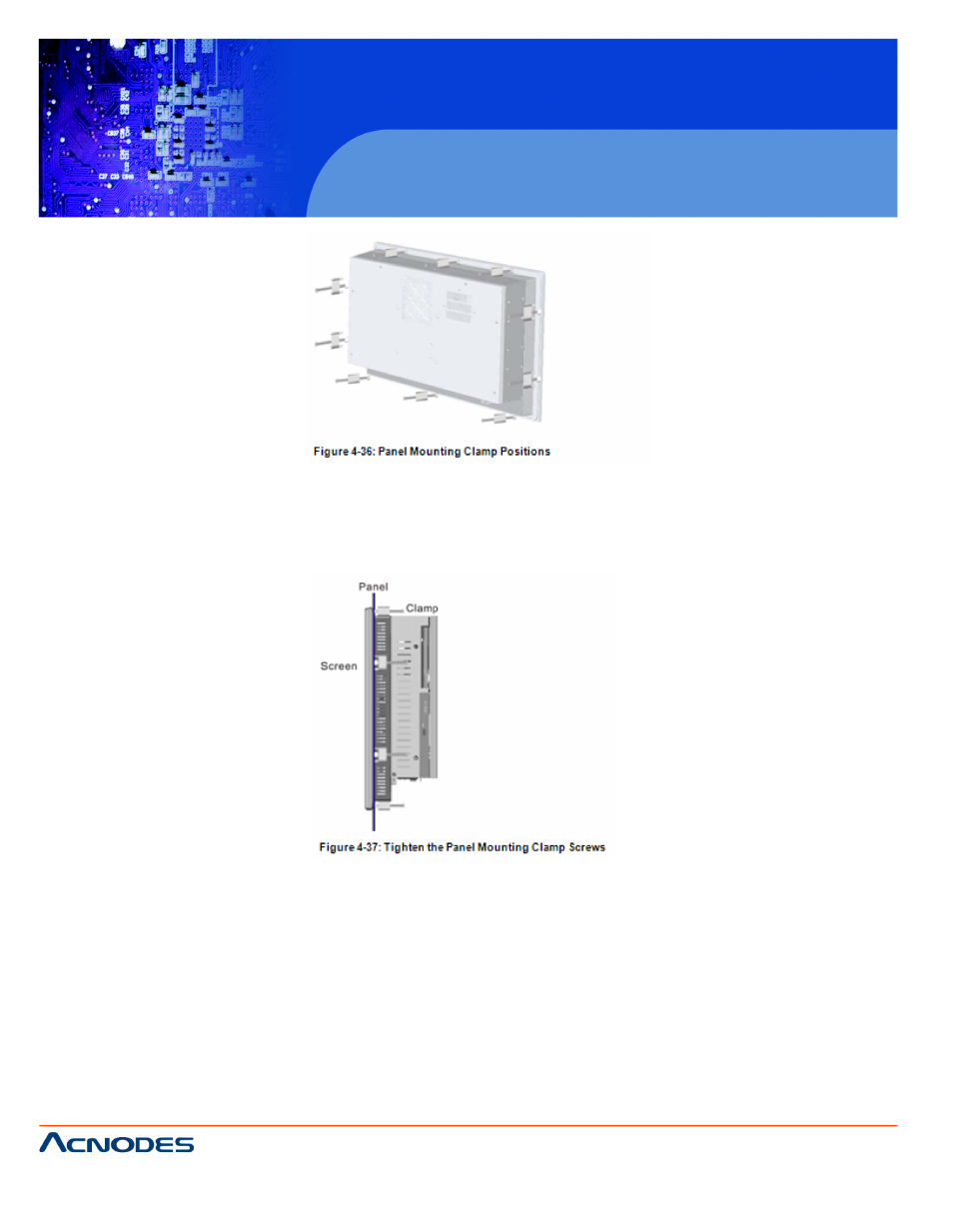

Step 5: Tighten the screws that pass through the panel mounting clamps until the plas-

tic caps at the front of all the screws are firmly secured to the panel (Figure 4-37).

4.11.3 Rack and Cabinet Installation

To mount the PC5153/ PC5173 into a rack/cabinet, please follow the steps below.

Step 1: Secure the rack mounting bracket to two sides of the monitor using the sup-

plied retention screws (Figure 3-17). Each bracket requires four screws.

Step 2: Secure the rack mounting bracket to the rack by inserting and tightening the

supplied mounting nuts and bolts (Figure 3-17). Each bracket requires three nuts and

bolts for installation.
