CHAPTER 2
HARDWARE INSTAL LATION
The FPC5105 provides rich I/O ports and flexible expansions for you to m eet different
demand. The chapter will show you how to install the hardware. It includes:
 CompactFlash
™
Card
 Serial Port
 Ethernet
 Mounting Way
 Hard disk
 Dram
 Wireless LAN Card
2.1 CF card Installation
The FPC5105 provides one CF slot for users to install Com pactFlash
™
card. Please refer to the
following instr uctions for installation:
Step 1 Turn off the system, and unplug the power cord.

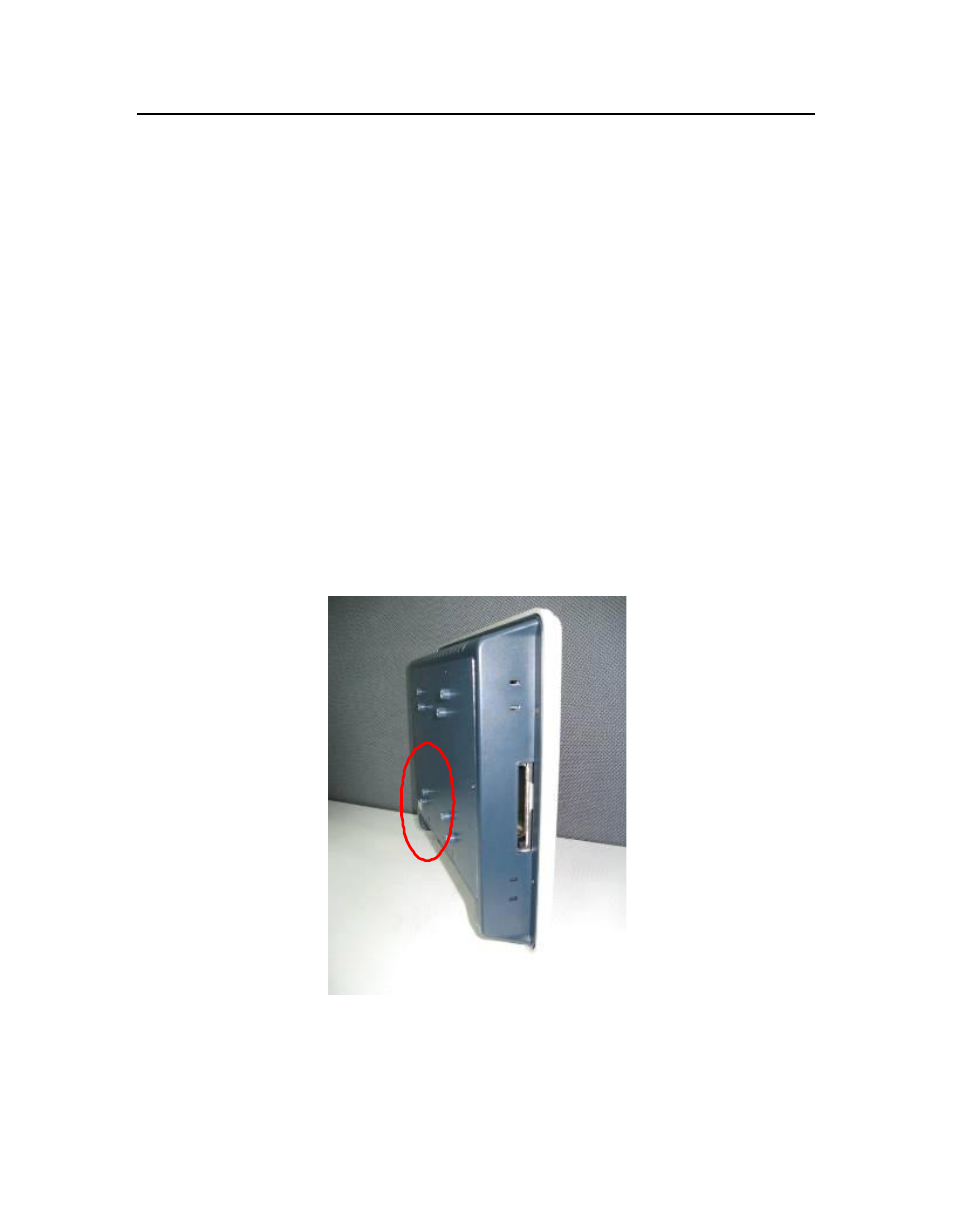

Step 2 Find out the cover on the side of the system .
Step 3 Locate the CompactFlash
TM
sock et, and insert the car d into the socket.
