Accusys ACS-76130 User Manual
Page 21
F
F
i
i
r
r
m
m
w
w
a
a
r
r
e
e
u
u
p
p
d
d
a
a
t
t
i
i
n
n
g
g
s
s
t
t
e
e
p
p
s
s
1. Ensure the ACS-76130 is turned off.
2. Connect the RS-232 cable to the RS-232 3pin port (Please refer the page 10 “Rear
View”), and connect the other end to one of the host computer’s COM port.

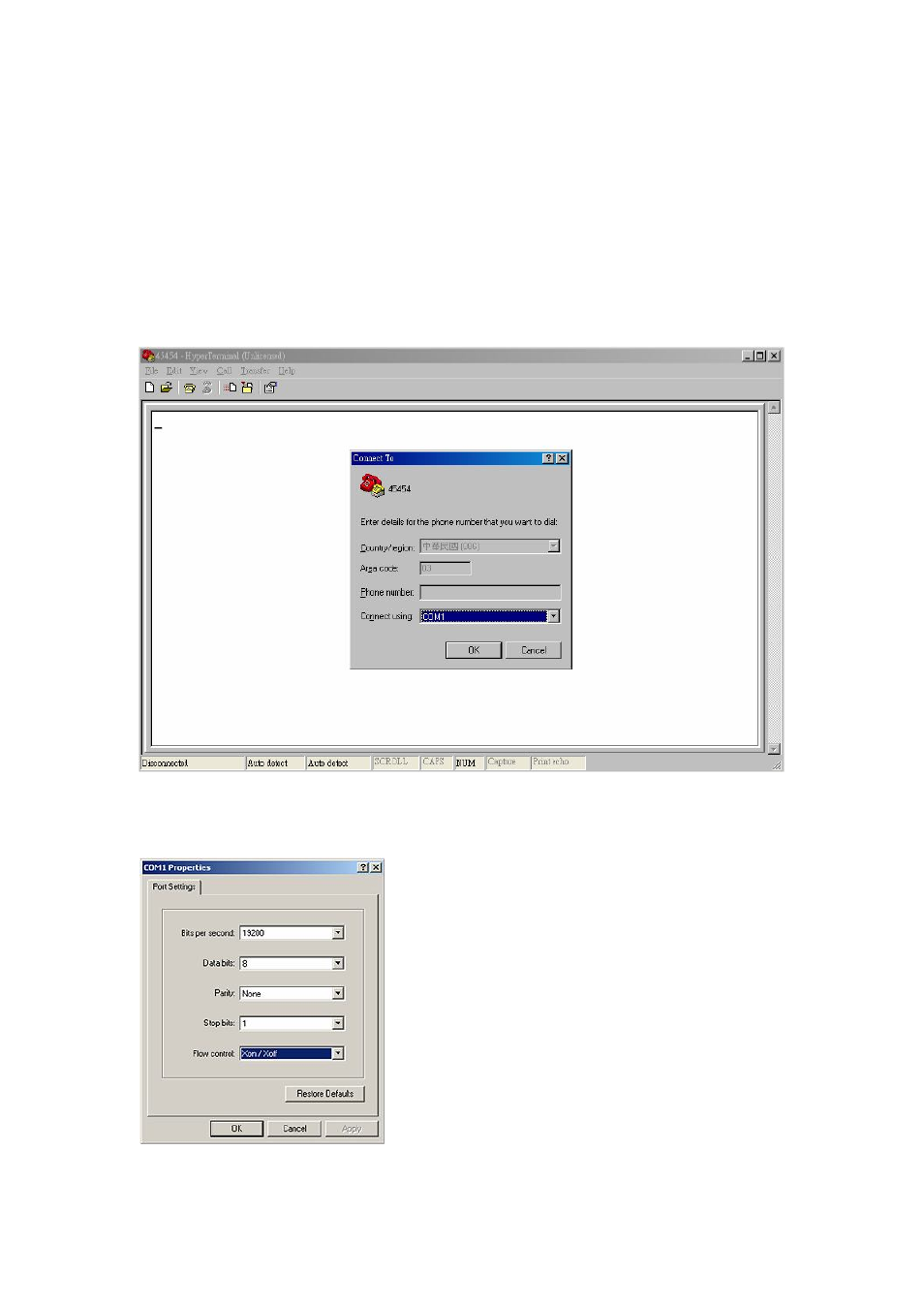

3. Launch HyperTerminal from the host computer: Start > Programs > Accessories >
Communications > HyperTerminal.
4. Select COM1 or COM2 from the Connect using: dropdown menu, depending on which
port is connecter to ACS-76130.
5. The COM properties dialog box will appear. Set the following values:
Bit per second: 19200
Data bits: 8
Parity: None
Stop bits: 1
Flow Control: Xon/Xoff
