Acclaim Lighting Pixel Driver Mini - Manual (Page 2)

1
2
3
4
5
6
OUTPUT
GND
Data -
Data+
GND
+5V
GND
Data -
Data+
DMX
IN
DMX
O
UT
5A
Max.
DMX
DC
IN
Made in PRC
Pixel Driver Mini
Operation Guide:
2. DMX & Power supply Setup
Pixel Driver Mini is compatible for DMX-512 protocol or DMX-1000K(1M).Connect DMX-512 or DMX-1000K
Signal to DMX input port of the first Pixel Driver Mini,connect DMX output port of the first Pixel Driver Mini to
DMX input port of the second Pixel Driver Mini. The rest may be deduced by analogy. A maximum of 170
pixels can be linked up via DMX-512 and 600 pixels can be linked up via DMX-1000K(1M).
3. And Pixel Driver Mini is auto-addressing, DMX address and channels will increase automatically in the
sequence. The first pixel of the first Pixel Driver Mini output port serves as DMX Address 1.
1.The below table details the assignment of the 6-pin terminal.
The total current of connection Pixel Driver Mini(s) and PS-5/PS-10 NEVER exceed the power supply current
capacity.
NOTE:
4.Use the UP button to increase the controllable pixel value of the PS-5/PS-10. Press it once, the value
will increase 5, hold it down, the value will increase to the maximum soon. The DOWN button is used to
decrease the controllable pixel value of the PS-5/PS-10. Press it once, the value will decrease 5, hold
it down, the value will decrease to the minimum soon.
-Page 2-

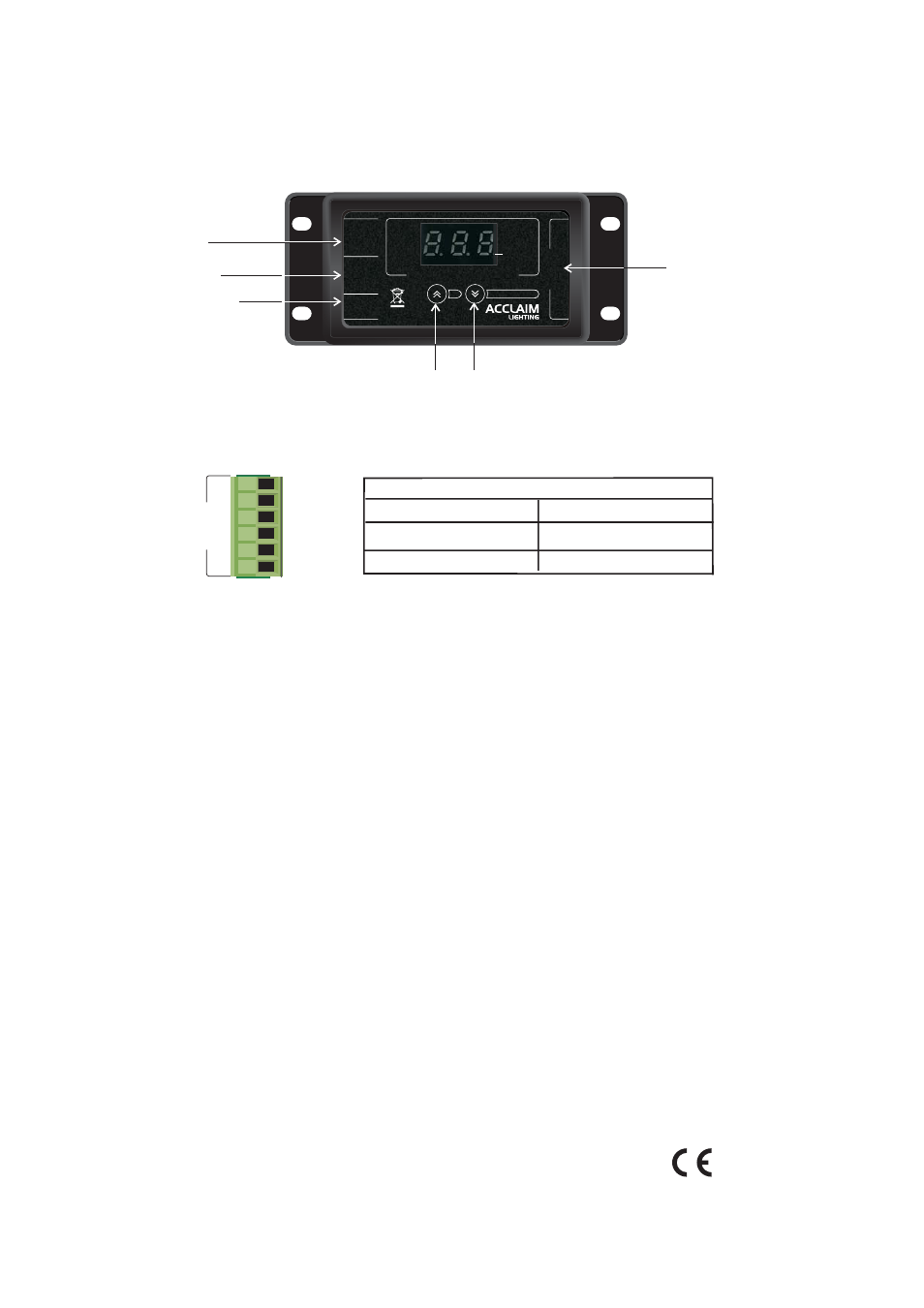

6-Pin Terminal Configuration
Pin 1=GND
Pin 2=SIN
Pin 3=DCLK
Pin 4=LE
Pin 5=GCLK
Pin 6=+5V
DMX In
Down
DMX Out
Power Input
Up
DMX/Power Output
(Via 6-Pin terminal)
24-004-2676-00
Rev 1.0
1
2
3
4
5
6
OUTPUT
5.The LED indicator will be blacked out without operation in 5 minutes, press any key to resume display.
